2022 New Indians
Indian Motorcycle
.png)

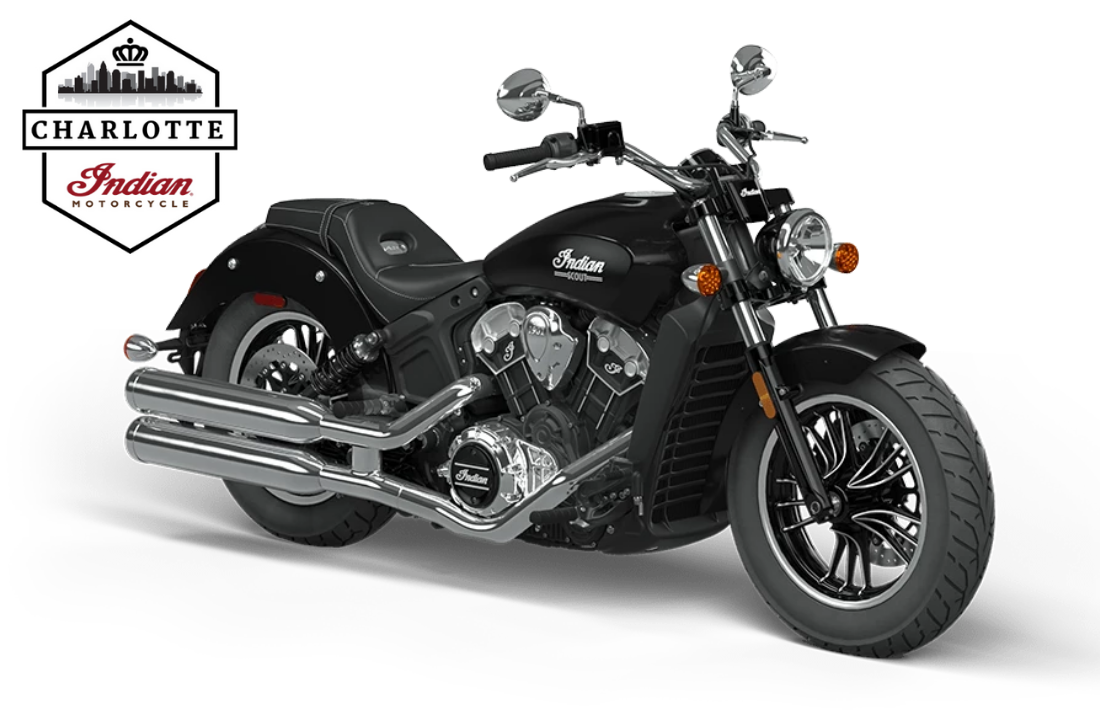

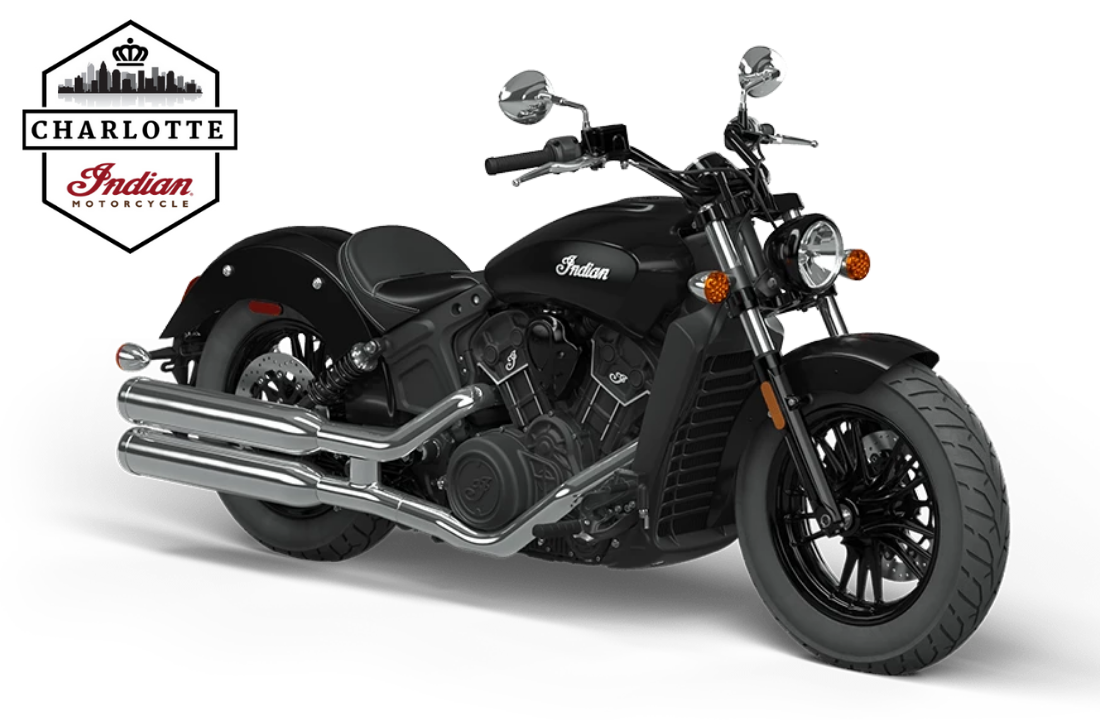

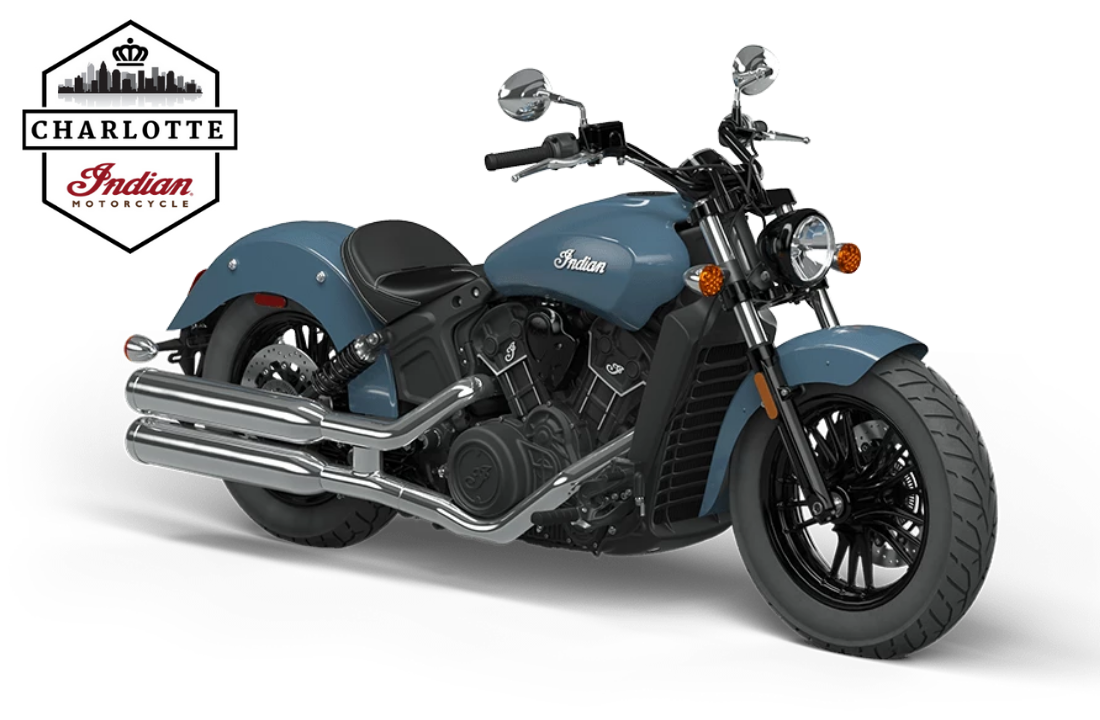

Scout Sixty
Starting at $11,399 US MSRPPlus destination charge and set-up.Logistics surcharge of $600 will apply.Trim & Color options Storm Blue (ABS)
.png)
Engine & Drivetrain
Bore x Stroke
3.661 in x 2.898 in (93 mm x 73.6 mm)
Compression Ratio
11:1
Displacement
61 cu in (1000 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Liquid Cooled V-Twin (60 degrees)
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
10.926 : 1
Gear Ratio (2nd)
7.427 : 1
Gear Ratio (3rd)
5.918 : 1
Gear Ratio (4th)
5.022 : 1
Gear Ratio (5th)
4.087 : 1
Gear Ratio (6th)
N/A
Horsepower
78 HP
Peak Torque
65 ft-lbs
Peak Torque RPM
5,800 rpm
Transmission/Final Drive
2.357 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
3.3 gal (12.5 L)
Ground Clearance
5.7 in (14.5 cm)
GVWR
988 lbs (449 kg)
Lean Angle
31°
Overall Height
42 in (1,068 mm)
Overall Length
91.4 in (2,321 mm)
Overall Width
36.1 in (916 mm)
Rake/Trail
29.0° / 4.7 in (120 mm)
Seat Height
25.6 in (649 mm)
Weight (Empty Tank / Full of Fuel)
523 lbs (237 kg) / 543 lbs (246 kg)
Wheelbase
62 in (1,575 mm)
Brakes
Front Brakes
Single / 298 mm Rotor / 2 Piston Caliper
Rear Brakes
Single / 298 mm Rotor / 1 Piston Caliper
Tires / Wheels
Front Tires
Pirelli Night Dragon 130/90B16 67H
Front Wheel
Cast Black 16 in x 3.5 in
Rear Tires
Pirelli Night Dragon 150/80B16 77H
Rear Wheel
Cast Black 16 in x 3.5 in
Suspension
Front Fork Tube Diameter
41 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (120 mm)
Rear Suspension
Dual Shocks
Rear Travel
3.0 in (76 mm)
Features
Colors / Graphics
Black Metallic, Black Metallic ABS, Storm Blue ABS
Factory Warranty
2 Years, Unlimited Miles
Gauges
Digital tachometer, odometer, trip meter, engine temp, low fuel lamp
Infotainment
N/A
Lights
Headlight, tail/brake light, turn signals, license plate light, speedometer and indicator lights
Standard Equipment
N/A
.png)
Scout Sixty
Starting at $10,899 US MSRPPlus destination charge and set-up.Logistics surcharge of $600 will apply.Trim & Color options Black Metallic (ABS)
Engine & Drivetrain
Bore x Stroke
3.661 in x 2.898 in (93 mm x 73.6 mm)
Compression Ratio
11:1
Displacement
61 cu in (1000 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Liquid Cooled V-Twin (60 degrees)
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
10.926 : 1
Gear Ratio (2nd)
7.427 : 1
Gear Ratio (3rd)
5.918 : 1
Gear Ratio (4th)
5.022 : 1
Gear Ratio (5th)
4.087 : 1
Gear Ratio (6th)
N/A
Horsepower
78 HP
Peak Torque
65 ft-lbs
Peak Torque RPM
5,800 rpm
Transmission/Final Drive
2.357 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
3.3 gal (12.5 L)
Ground Clearance
5.7 in (14.5 cm)
GVWR
988 lbs (449 kg)
Lean Angle
31°
Overall Height
42 in (1,068 mm)
Overall Length
91.4 in (2,321 mm)
Overall Width
36.1 in (916 mm)
Rake/Trail
29.0° / 4.7 in (120 mm)
Seat Height
25.6 in (649 mm)
Weight (Empty Tank / Full of Fuel)
523 lbs (237 kg) / 543 lbs (246 kg)
Wheelbase
62 in (1,575 mm)
Brakes
Front Brakes
Single / 298 mm Rotor / 2 Piston Caliper
Rear Brakes
Single / 298 mm Rotor / 1 Piston Caliper
Tires / Wheels
Front Tires
Pirelli Night Dragon 130/90B16 67H
Front Wheel
Cast Black 16 in x 3.5 in
Rear Tires
Pirelli Night Dragon 150/80B16 77H
Rear Wheel
Cast Black 16 in x 3.5 in
Suspension
Front Fork Tube Diameter
41 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (120 mm)
Rear Suspension
Dual Shocks
Rear Travel
3.0 in (76 mm)
Features
Colors / Graphics
Black Metallic, Black Metallic ABS, Storm Blue ABS
Factory Warranty
2 Years, Unlimited Miles
Gauges
Digital tachometer, odometer, trip meter, engine temp, low fuel lamp
Infotainment
N/A
Lights
Headlight, tail/brake light, turn signals, license plate light, speedometer and indicator lights
Standard Equipment
N/A
(1).png)
Scout Sixty
Starting at $9,999 US MSRPPlus destination charge and set-up.Logistics surcharge of $600 will apply.Trim & Color options Black Metallic
Engine & Drivetrain
Bore x Stroke
3.661 in x 2.898 in (93 mm x 73.6 mm)
Compression Ratio
11:1
Displacement
61 cu in (1000 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Liquid Cooled V-Twin (60 degrees)
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
10.926 : 1
Gear Ratio (2nd)
7.427 : 1
Gear Ratio (3rd)
5.918 : 1
Gear Ratio (4th)
5.022 : 1
Gear Ratio (5th)
4.087 : 1
Gear Ratio (6th)
N/A
Horsepower
78 HP
Peak Torque
65 ft-lbs
Peak Torque RPM
5,800 rpm
Transmission/Final Drive
2.357 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
3.3 gal (12.5 L)
Ground Clearance
5.7 in (14.5 cm)
GVWR
988 lbs (449 kg)
Lean Angle
31°
Overall Height
42 in (1,068 mm)
Overall Length
91.4 in (2,321 mm)
Overall Width
36.1 in (916 mm)
Rake/Trail
29.0° / 4.7 in (120 mm)
Seat Height
25.6 in (649 mm)
Weight (Empty Tank / Full of Fuel)
523 lbs (237 kg) / 543 lbs (246 kg)
Wheelbase
62 in (1,575 mm)
Brakes
Front Brakes
Single / 298 mm Rotor / 2 Piston Caliper
Rear Brakes
Single / 298 mm Rotor / 1 Piston Caliper
Tires / Wheels
Front Tires
Pirelli Night Dragon 130/90B16 67H
Front Wheel
Cast Black 16 in x 3.5 in
Rear Tires
Pirelli Night Dragon 150/80B16 77H
Rear Wheel
Cast Black 16 in x 3.5 in
Suspension
Front Fork Tube Diameter
41 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (120 mm)
Rear Suspension
Dual Shocks
Rear Travel
3.0 in (76 mm)
Features
Colors / Graphics
Black Metallic, Black Metallic ABS, Storm Blue ABS
Factory Warranty
2 Years, Unlimited Miles
Gauges
Digital tachometer, odometer, trip meter, engine temp, low fuel lamp
Infotainment
N/A
Lights
Headlight, tail/brake light, turn signals, license plate light, speedometer and indicator lights
Standard Equipment
N/A
.png)

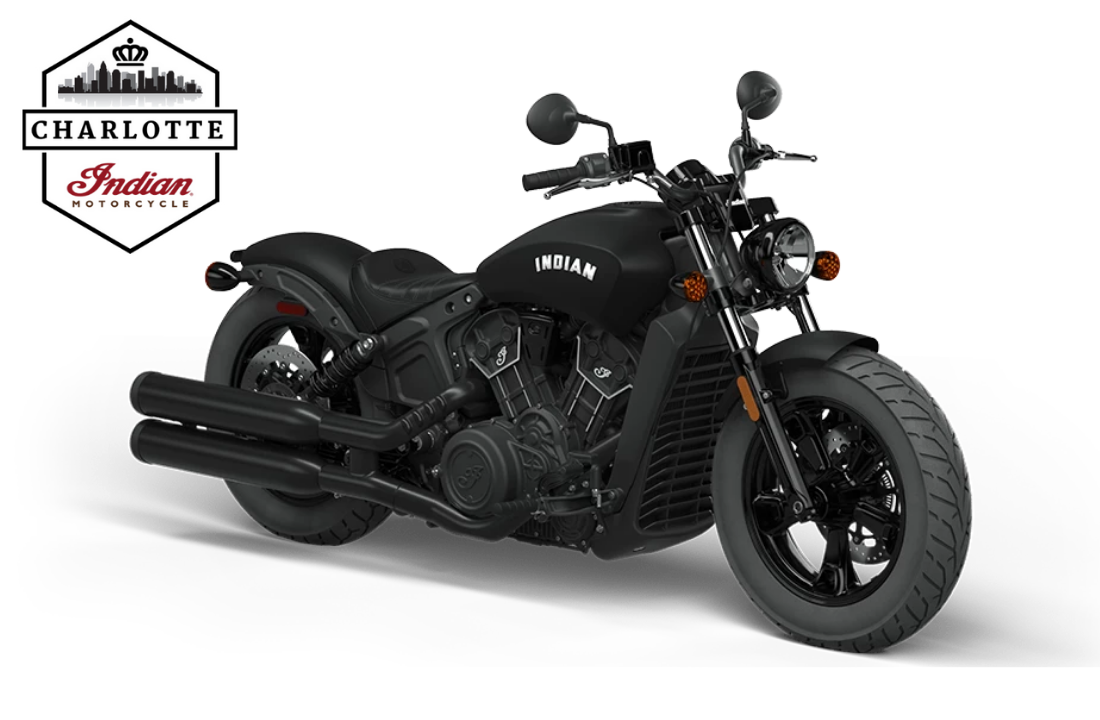

Scout Bobber Sixty
Starting at $8,999 US MSRPPlus destination charge and set-up.Logistics surcharge of $600 will apply.Trim & Color options Black Metallic
Engine & Drivetrain
Bore x Stroke
3.661 in x 2.898 in (93 mm x 73.6 mm)
Compression Ratio
11.0:1
Displacement
61 cu in (1000 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Liquid Cooled V-Twin (60 degrees)
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
10.926 : 1
Gear Ratio (2nd)
7.427 : 1
Gear Ratio (3rd)
5.918 : 1
Gear Ratio (4th)
5.022 : 1
Gear Ratio (5th)
4.087 : 1
Gear Ratio (6th)
N/A
Horsepower
78 HP (58.2 kW)
Peak Torque
65 ft-lbs (88 Nm)
Peak Torque RPM
5,800 rpm
Transmission/Final Drive
2.357 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
3.3 gal (12.5 L)
Ground Clearance
5.1 in (129 mm)
GVWR
988 lbs (449 kg)
Lean Angle
31°
Overall Height
41.5 in (1,053 mm)
Overall Length
87.5 in (2223 mm)
Overall Width
36.5 in (926 mm)
Rake/Trail
29.0° / 4.7 in (120 mm)
Seat Height
25.6 in (649 mm)
Weight (Empty Tank / Full of Fuel)
528 lbs (239 kg) / 548 lbs (249 kg)
Wheelbase
62 in (1,576 mm)
Brakes
Front Brakes
Single / 298 mm Rotor / 2 Piston Caliper
Rear Brakes
Single / 298 mm Rotor / 1 Piston Caliper
Tires / Wheels
Front Tires
Pirelli Night Dragon 130/90B16 67H
Front Wheel
Cast 16 in x 3.5 in
Rear Tires
Pirelli Night Dragon 150/80B16 77H
Rear Wheel
Cast 16 in x 3.5 in
Suspension
Front Fork Tube Diameter
41 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (120 mm)
Rear Suspension
Dual Shocks
Rear Travel
2.0 in (51 mm)
Features
Factory Warranty
2 Years, Unlimited Miles
Gauges
Digital tachometer, odometer, trip meter, engine temp, low fuel lamp
Infotainment
N/A
Lights
Headlight, tail/brake light, turn signals, license plate light, speedometer and indicator lights

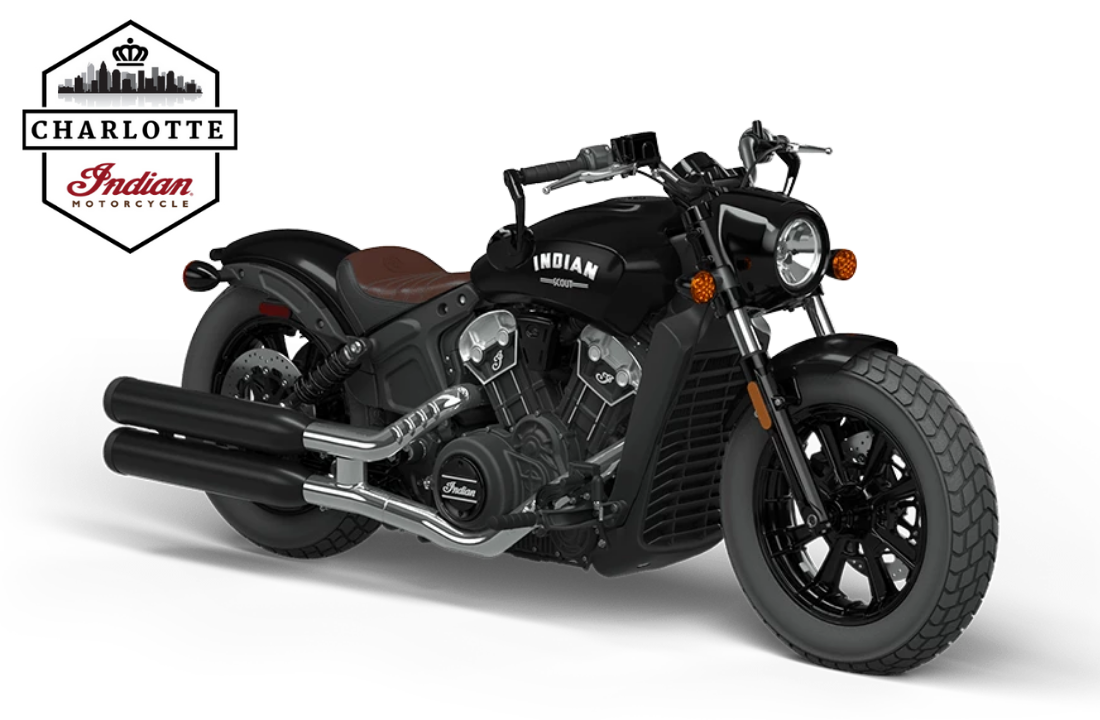

Scout Bobber Sixty
Starting at $9,899 US MSRPPlus destination charge and set-up.Logistics surcharge of $600 will apply.Trim & Color options Black Metallic (ABS)
Engine & Drivetrain
Bore x Stroke
3.661 in x 2.898 in (93 mm x 73.6 mm)
Compression Ratio
11.0:1
Displacement
61 cu in (1000 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Liquid Cooled V-Twin (60 degrees)
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
10.926 : 1
Gear Ratio (2nd)
7.427 : 1
Gear Ratio (3rd)
5.918 : 1
Gear Ratio (4th)
5.022 : 1
Gear Ratio (5th)
4.087 : 1
Gear Ratio (6th)
N/A
Horsepower
78 HP (58.2 kW)
Peak Torque
65 ft-lbs (88 Nm)
Peak Torque RPM
5,800 rpm
Transmission/Final Drive
2.357 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
3.3 gal (12.5 L)
Ground Clearance
5.1 in (129 mm)
GVWR
988 lbs (449 kg)
Lean Angle
31°
Overall Height
41.5 in (1,053 mm)
Overall Length
87.5 in (2223 mm)
Overall Width
36.5 in (926 mm)
Rake/Trail
29.0° / 4.7 in (120 mm)
Seat Height
25.6 in (649 mm)
Weight (Empty Tank / Full of Fuel)
528 lbs (239 kg) / 548 lbs (249 kg)
Wheelbase
62 in (1,576 mm)
Brakes
Front Brakes
Single / 298 mm Rotor / 2 Piston Caliper
Rear Brakes
Single / 298 mm Rotor / 1 Piston Caliper
Tires / Wheels
Front Tires
Pirelli Night Dragon 130/90B16 67H
Front Wheel
Cast 16 in x 3.5 in
Rear Tires
Pirelli Night Dragon 150/80B16 77H
Rear Wheel
Cast 16 in x 3.5 in
Suspension
Front Fork Tube Diameter
41 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (120 mm)
Rear Suspension
Dual Shocks
Rear Travel
2.0 in (51 mm)
Features
Factory Warranty
2 Years, Unlimited Miles
Gauges
Digital tachometer, odometer, trip meter, engine temp, low fuel lamp
Infotainment
N/A
Lights
Headlight, tail/brake light, turn signals, license plate light, speedometer and indicator lights
.png)

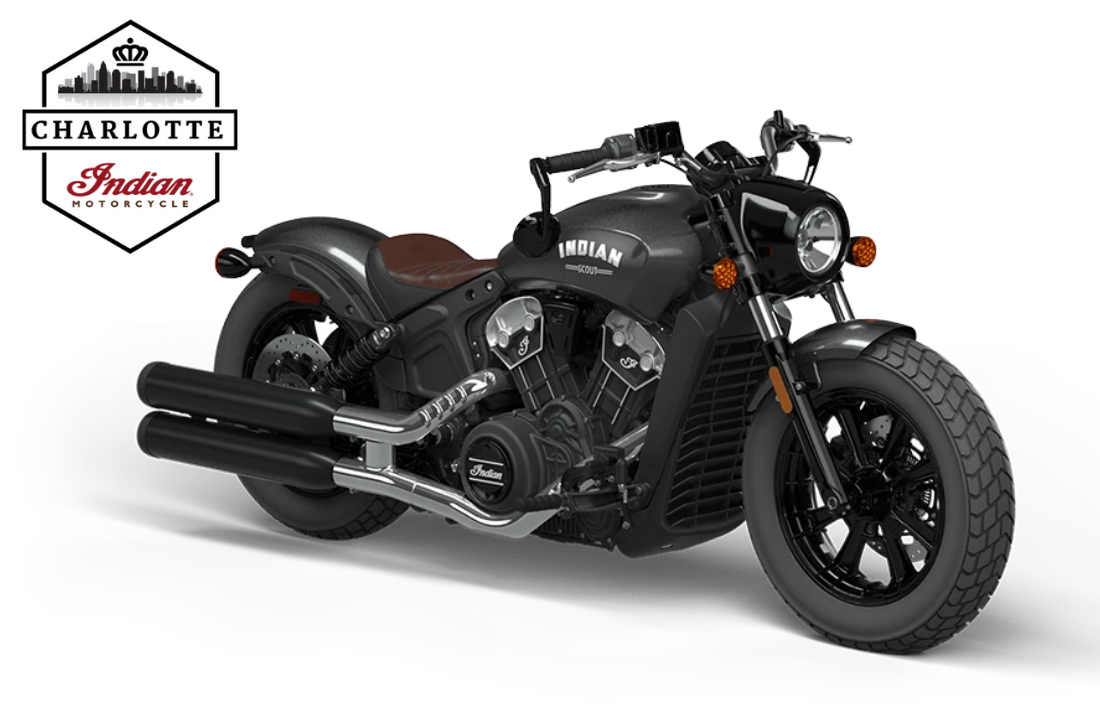

Scout Bobber Sixty
Starting at $10,399 US MSRPPlus destination charge and set-up.Logistics surcharge of $600 will apply.Trim & Color options Black Smoke (ABS)
Engine & Drivetrain
Bore x Stroke
3.661 in x 2.898 in (93 mm x 73.6 mm)
Compression Ratio
11.0:1
Displacement
61 cu in (1000 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Liquid Cooled V-Twin (60 degrees)
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
10.926 : 1
Gear Ratio (2nd)
7.427 : 1
Gear Ratio (3rd)
5.918 : 1
Gear Ratio (4th)
5.022 : 1
Gear Ratio (5th)
4.087 : 1
Gear Ratio (6th)
N/A
Horsepower
78 HP (58.2 kW)
Peak Torque
65 ft-lbs (88 Nm)
Peak Torque RPM
5,800 rpm
Transmission/Final Drive
2.357 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
3.3 gal (12.5 L)
Ground Clearance
5.1 in (129 mm)
GVWR
988 lbs (449 kg)
Lean Angle
31°
Overall Height
41.5 in (1,053 mm)
Overall Length
87.5 in (2223 mm)
Overall Width
36.5 in (926 mm)
Rake/Trail
29.0° / 4.7 in (120 mm)
Seat Height
25.6 in (649 mm)
Weight (Empty Tank / Full of Fuel)
528 lbs (239 kg) / 548 lbs (249 kg)
Wheelbase
62 in (1,576 mm)
Brakes
Front Brakes
Single / 298 mm Rotor / 2 Piston Caliper
Rear Brakes
Single / 298 mm Rotor / 1 Piston Caliper
Tires / Wheels
Front Tires
Pirelli Night Dragon 130/90B16 67H
Front Wheel
Cast 16 in x 3.5 in
Rear Tires
Pirelli Night Dragon 150/80B16 77H
Rear Wheel
Cast 16 in x 3.5 in
Suspension
Front Fork Tube Diameter
41 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (120 mm)
Rear Suspension
Dual Shocks
Rear Travel
2.0 in (51 mm)
Features
Factory Warranty
2 Years, Unlimited Miles
Gauges
Digital tachometer, odometer, trip meter, engine temp, low fuel lamp
Infotainment
N/A
Lights
Headlight, tail/brake light, turn signals, license plate light, speedometer and indicator lights
.png)

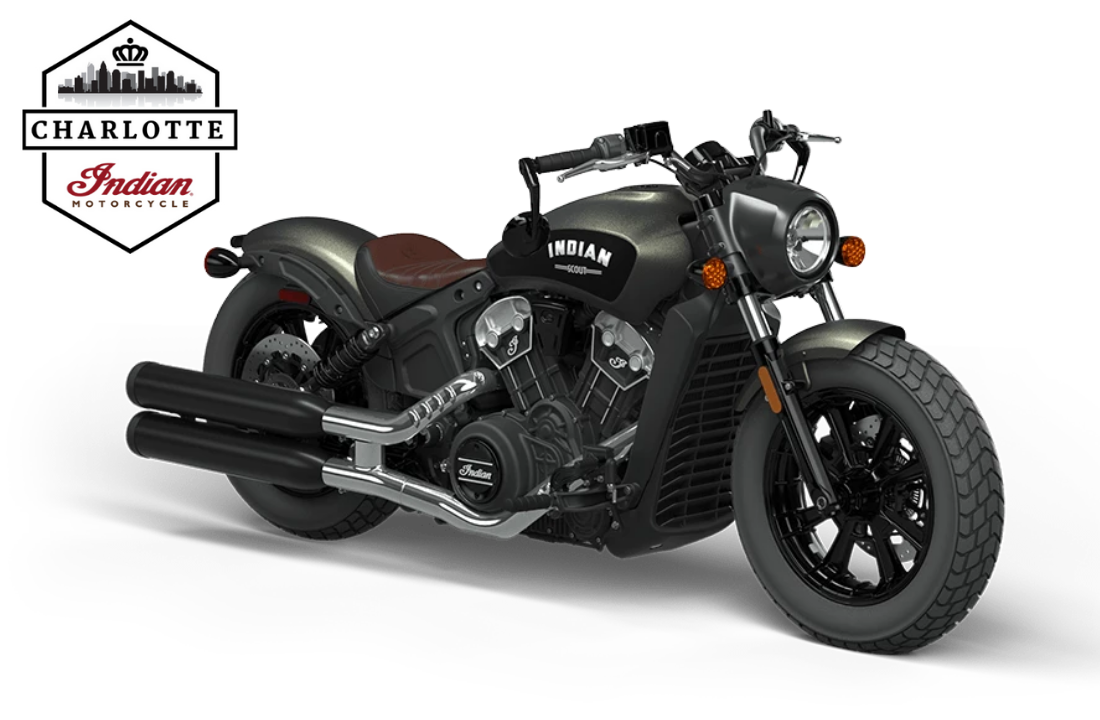

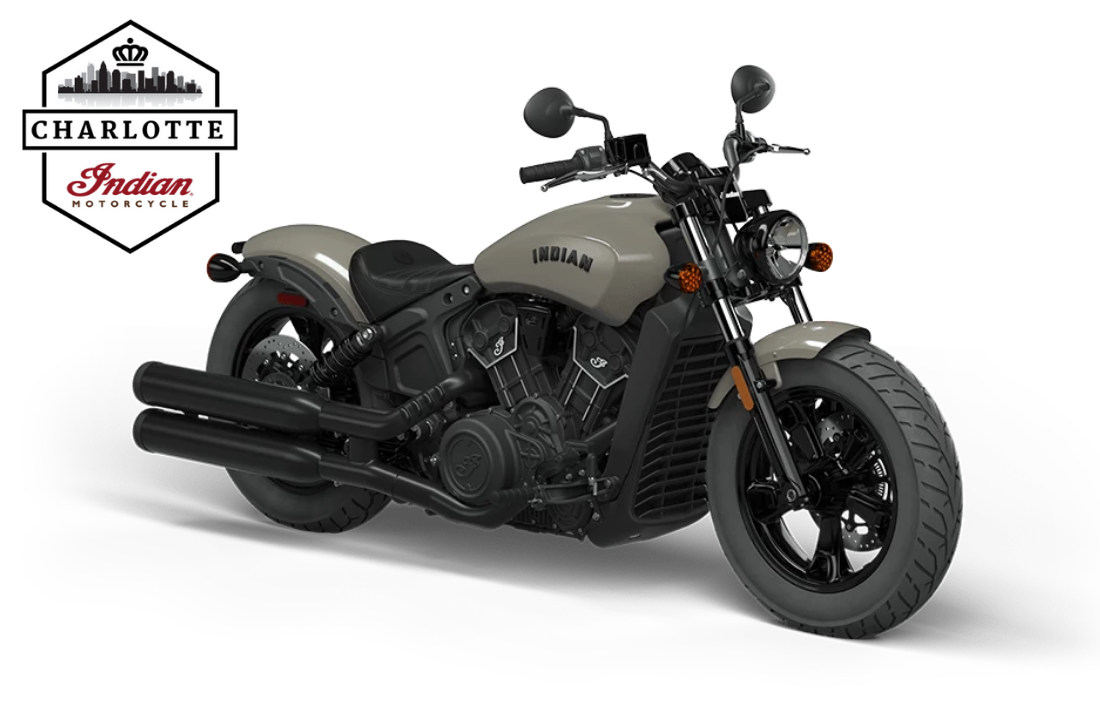

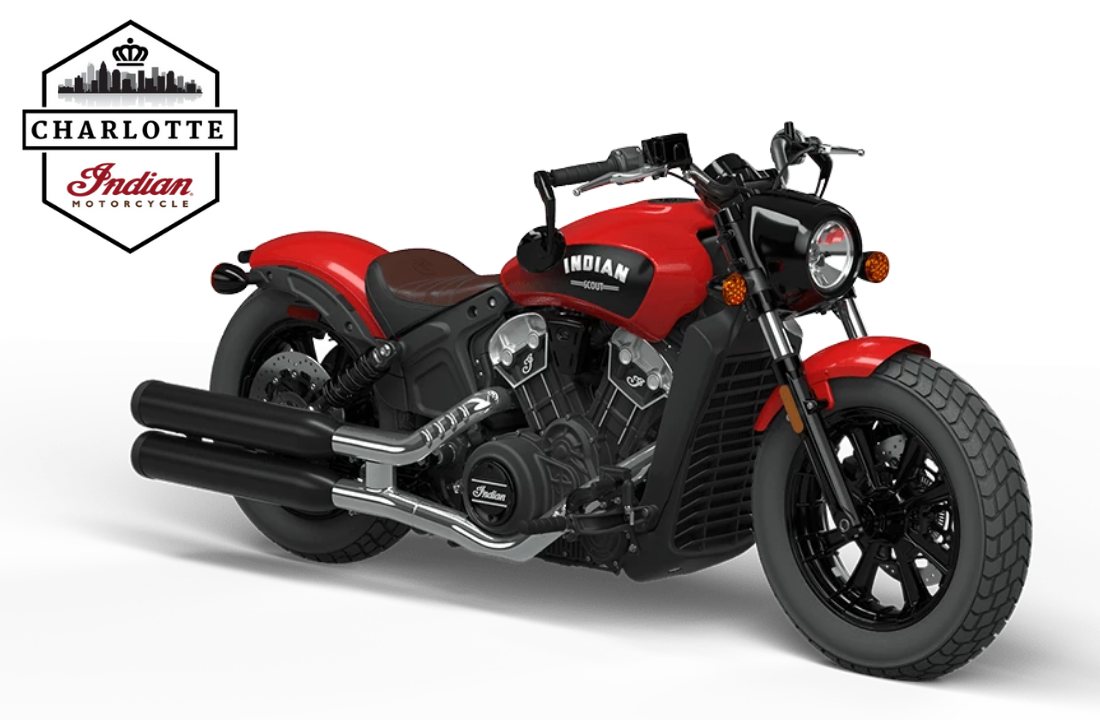

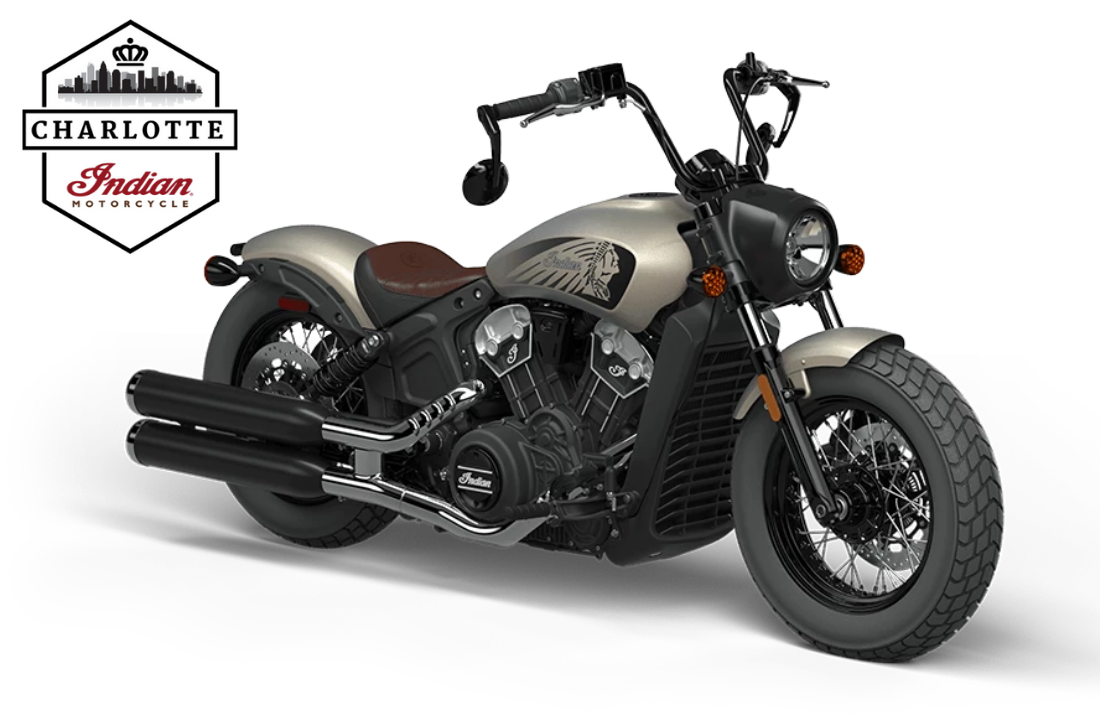

Scout Bobber Sixty
Engine & Drivetrain
Bore x Stroke
3.661 in x 2.898 in (93 mm x 73.6 mm)
Compression Ratio
11.0:1
Displacement
61 cu in (1000 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Liquid Cooled V-Twin (60 degrees)
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
10.926 : 1
Gear Ratio (2nd)
7.427 : 1
Gear Ratio (3rd)
5.918 : 1
Gear Ratio (4th)
5.022 : 1
Gear Ratio (5th)
4.087 : 1
Gear Ratio (6th)
N/A
Horsepower
78 HP (58.2 kW)
Peak Torque
65 ft-lbs (88 Nm)
Peak Torque RPM
5,800 rpm
Transmission/Final Drive
2.357 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
3.3 gal (12.5 L)
Ground Clearance
5.1 in (129 mm)
GVWR
988 lbs (449 kg)
Lean Angle
31°
Overall Height
41.5 in (1,053 mm)
Overall Length
87.5 in (2223 mm)
Overall Width
36.5 in (926 mm)
Rake/Trail
29.0° / 4.7 in (120 mm)
Seat Height
25.6 in (649 mm)
Weight (Empty Tank / Full of Fuel)
528 lbs (239 kg) / 548 lbs (249 kg)
Wheelbase
62 in (1,576 mm)
Brakes
Front Brakes
Single / 298 mm Rotor / 2 Piston Caliper
Rear Brakes
Single / 298 mm Rotor / 1 Piston Caliper
Tires / Wheels
Front Tires
Pirelli Night Dragon 130/90B16 67H
Front Wheel
Cast 16 in x 3.5 in
Rear Tires
Pirelli Night Dragon 150/80B16 77H
Rear Wheel
Cast 16 in x 3.5 in
Suspension
Front Fork Tube Diameter
41 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (120 mm)
Rear Suspension
Dual Shocks
Rear Travel
2.0 in (51 mm)
Features
Factory Warranty
2 Years, Unlimited Miles
Gauges
Digital tachometer, odometer, trip meter, engine temp, low fuel lamp
Infotainment
N/A
Lights
Headlight, tail/brake light, turn signals, license plate light, speedometer and indicator lights
.png)
Scout Bobber Sixty
Engine & Drivetrain
Bore x Stroke
3.661 in x 2.898 in (93 mm x 73.6 mm)
Compression Ratio
11.0:1
Displacement
61 cu in (1000 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Liquid Cooled V-Twin (60 degrees)
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
10.926 : 1
Gear Ratio (2nd)
7.427 : 1
Gear Ratio (3rd)
5.918 : 1
Gear Ratio (4th)
5.022 : 1
Gear Ratio (5th)
4.087 : 1
Gear Ratio (6th)
N/A
Horsepower
78 HP (58.2 kW)
Peak Torque
65 ft-lbs (88 Nm)
Peak Torque RPM
5,800 rpm
Transmission/Final Drive
2.357 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
3.3 gal (12.5 L)
Ground Clearance
5.1 in (129 mm)
GVWR
988 lbs (449 kg)
Lean Angle
31°
Overall Height
41.5 in (1,053 mm)
Overall Length
87.5 in (2223 mm)
Overall Width
36.5 in (926 mm)
Rake/Trail
29.0° / 4.7 in (120 mm)
Seat Height
25.6 in (649 mm)
Weight (Empty Tank / Full of Fuel)
528 lbs (239 kg) / 548 lbs (249 kg)
Wheelbase
62 in (1,576 mm)
Brakes
Front Brakes
Single / 298 mm Rotor / 2 Piston Caliper
Rear Brakes
Single / 298 mm Rotor / 1 Piston Caliper
Tires / Wheels
Front Tires
Pirelli Night Dragon 130/90B16 67H
Front Wheel
Cast 16 in x 3.5 in
Rear Tires
Pirelli Night Dragon 150/80B16 77H
Rear Wheel
Cast 16 in x 3.5 in
Suspension
Front Fork Tube Diameter
41 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (120 mm)
Rear Suspension
Dual Shocks
Rear Travel
2.0 in (51 mm)
Features
Factory Warranty
2 Years, Unlimited Miles
Gauges
Digital tachometer, odometer, trip meter, engine temp, low fuel lamp
Infotainment
N/A
Lights
Headlight, tail/brake light, turn signals, license plate light, speedometer and indicator lights
(2).png)

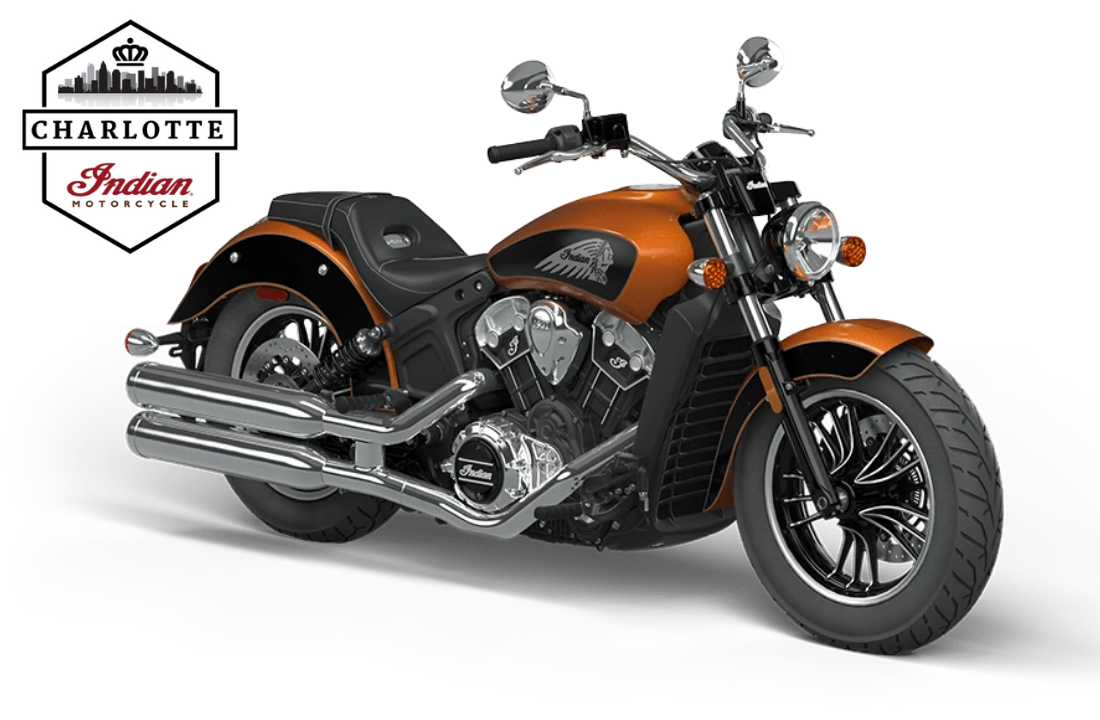

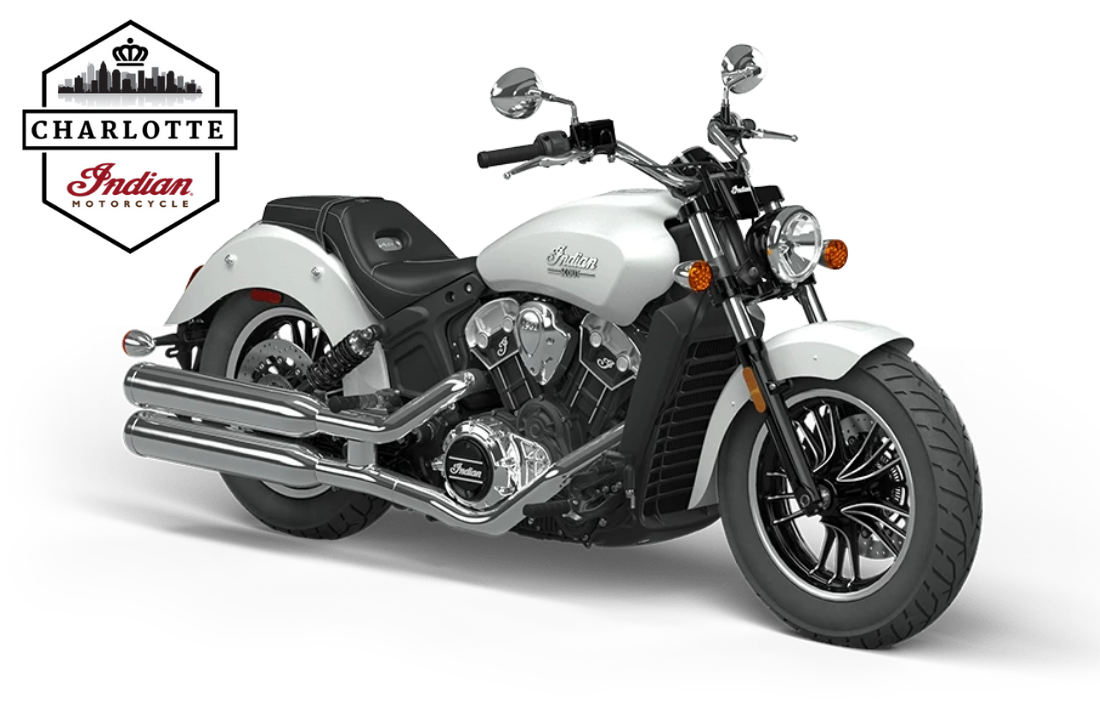

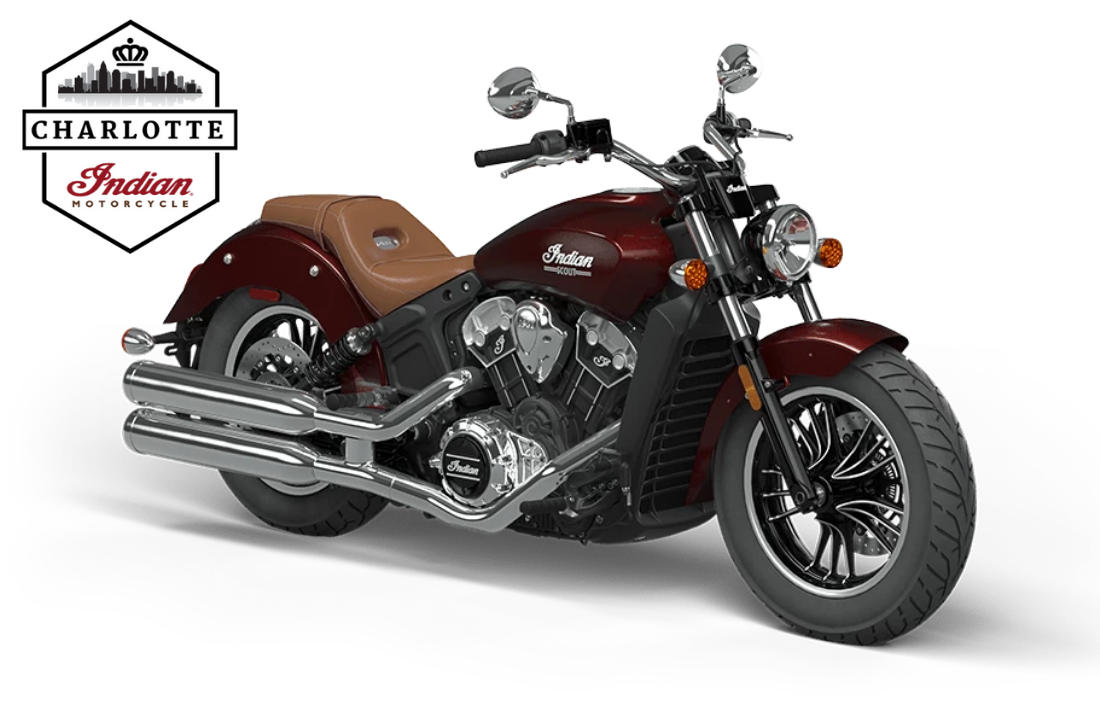

Scout
Starting at $11,999 US MSRPPlus destination charge and set-up.Logistics surcharge of $600 will apply.Trim & Color options Black Metallic
Engine & Drivetrain
Bore x Stroke
3.898 in x 2.898 in (99 mm x 73.6 mm)
Compression Ratio
10.7:1
Displacement
69 cu in (1,133 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed Loop Fuel Injection / 60 mm Bore
Engine Type
Liquid Cooled V-Twin (60 degrees)
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
10.926 : 1
Gear Ratio (2nd)
7.427 : 1
Gear Ratio (3rd)
5.918 : 1
Gear Ratio (4th)
5.022 : 1
Gear Ratio (5th)
4.439 : 1
Gear Ratio (6th)
3.810 : 1
Horsepower
100 HP
Peak Torque
72 ft-lbs (97.7 Nm)
Peak Torque RPM
5,900 rpm
Transmission/Final Drive
2.357 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
3.3 gal (12.5 L)
Ground Clearance
5.7 in (146 mm)
GVWR
988 lbs (449 kg)
Lean Angle
31°
Overall Height
42 in (1,068 mm)
Overall Length
91.5 in (2,324 mm)
Overall Width
36.1 in (916 mm)
Rake/Trail
29.0° / 4.7 in (120 mm)
Seat Height
25.6 in (649 mm)
Weight (Empty Tank / Full of Fuel)
541 lbs (245 kg) / 561 lbs (254 kg)
Wheelbase
62 in (1,575 mm)
Brakes
Front Brakes
Single / 298 mm Rotor / 2 Piston Caliper
Rear Brakes
Single / 298 mm Rotor / 1 Piston Caliper
Tires / Wheels
Front Tires
Pirelli Night Dragon 130/90B16 67H
Front Wheel
Contrast Cut 16 in x 3.5 in
Rear Tires
Pirelli Night Dragon 150/80B16 77H
Rear Wheel
Contrast Cut 16 in x 3.5 in
Suspension
Front Fork Tube Diameter
41 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (120 mm)
Rear Suspension
Dual Shocks
Rear Travel
3.0 in (76 mm)
Features
Color / Graphics
Black Metallic, Black Metallic ABS, Maroon Metallic ABS, White Smoke ABS, Silver Quartz Metallic / Black Metallic
Factory Warranty
2 Years, Unlimited Miles
Gauges
Digital tachometer, odometer, trip meter, engine temp and low fuel lamp
Infotainment
N/A
Lights
Headlight, tail/brake light, turn signals, license plate light, speedometer and indicator lights
Standard Equipment
N/A
(1).png)
Scout
Starting at $12,899 US MSRPPlus destination charge and set-up.Logistics surcharge of $600 will apply.Trim & Color options Black Metallic (ABS)
Engine & Drivetrain
Bore x Stroke
3.898 in x 2.898 in (99 mm x 73.6 mm)
Compression Ratio
10.7:1
Displacement
69 cu in (1,133 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed Loop Fuel Injection / 60 mm Bore
Engine Type
Liquid Cooled V-Twin (60 degrees)
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
10.926 : 1
Gear Ratio (2nd)
7.427 : 1
Gear Ratio (3rd)
5.918 : 1
Gear Ratio (4th)
5.022 : 1
Gear Ratio (5th)
4.439 : 1
Gear Ratio (6th)
3.810 : 1
Horsepower
100 HP
Peak Torque
72 ft-lbs (97.7 Nm)
Peak Torque RPM
5,900 rpm
Transmission/Final Drive
2.357 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
3.3 gal (12.5 L)
Ground Clearance
5.7 in (146 mm)
GVWR
988 lbs (449 kg)
Lean Angle
31°
Overall Height
42 in (1,068 mm)
Overall Length
91.5 in (2,324 mm)
Overall Width
36.1 in (916 mm)
Rake/Trail
29.0° / 4.7 in (120 mm)
Seat Height
25.6 in (649 mm)
Weight (Empty Tank / Full of Fuel)
541 lbs (245 kg) / 561 lbs (254 kg)
Wheelbase
62 in (1,575 mm)
Brakes
Front Brakes
Single / 298 mm Rotor / 2 Piston Caliper
Rear Brakes
Single / 298 mm Rotor / 1 Piston Caliper
Tires / Wheels
Front Tires
Pirelli Night Dragon 130/90B16 67H
Front Wheel
Contrast Cut 16 in x 3.5 in
Rear Tires
Pirelli Night Dragon 150/80B16 77H
Rear Wheel
Contrast Cut 16 in x 3.5 in
Suspension
Front Fork Tube Diameter
41 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (120 mm)
Rear Suspension
Dual Shocks
Rear Travel
3.0 in (76 mm)
Features
Color / Graphics
Black Metallic, Black Metallic ABS, Maroon Metallic ABS, White Smoke ABS, Silver Quartz Metallic / Black Metallic
Factory Warranty
2 Years, Unlimited Miles
Gauges
Digital tachometer, odometer, trip meter, engine temp and low fuel lamp
Infotainment
N/A
Lights
Headlight, tail/brake light, turn signals, license plate light, speedometer and indicator lights
Standard Equipment
N/A
.png)
Scout
Starting at $13,399 US MSRPPlus destination charge and set-up.Logistics surcharge of $600 will apply.Trim & Color options Maroon Metallic (ABS)
Engine & Drivetrain
Bore x Stroke
3.898 in x 2.898 in (99 mm x 73.6 mm)
Compression Ratio
10.7:1
Displacement
69 cu in (1,133 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed Loop Fuel Injection / 60 mm Bore
Engine Type
Liquid Cooled V-Twin (60 degrees)
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
10.926 : 1
Gear Ratio (2nd)
7.427 : 1
Gear Ratio (3rd)
5.918 : 1
Gear Ratio (4th)
5.022 : 1
Gear Ratio (5th)
4.439 : 1
Gear Ratio (6th)
3.810 : 1
Horsepower
100 HP
Peak Torque
72 ft-lbs (97.7 Nm)
Peak Torque RPM
5,900 rpm
Transmission/Final Drive
2.357 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
3.3 gal (12.5 L)
Ground Clearance
5.7 in (146 mm)
GVWR
988 lbs (449 kg)
Lean Angle
31°
Overall Height
42 in (1,068 mm)
Overall Length
91.5 in (2,324 mm)
Overall Width
36.1 in (916 mm)
Rake/Trail
29.0° / 4.7 in (120 mm)
Seat Height
25.6 in (649 mm)
Weight (Empty Tank / Full of Fuel)
541 lbs (245 kg) / 561 lbs (254 kg)
Wheelbase
62 in (1,575 mm)
Brakes
Front Brakes
Single / 298 mm Rotor / 2 Piston Caliper
Rear Brakes
Single / 298 mm Rotor / 1 Piston Caliper
Tires / Wheels
Front Tires
Pirelli Night Dragon 130/90B16 67H
Front Wheel
Contrast Cut 16 in x 3.5 in
Rear Tires
Pirelli Night Dragon 150/80B16 77H
Rear Wheel
Contrast Cut 16 in x 3.5 in
Suspension
Front Fork Tube Diameter
41 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (120 mm)
Rear Suspension
Dual Shocks
Rear Travel
3.0 in (76 mm)
Features
Color / Graphics
Black Metallic, Black Metallic ABS, Maroon Metallic ABS, White Smoke ABS, Silver Quartz Metallic / Black Metallic
Factory Warranty
2 Years, Unlimited Miles
Gauges
Digital tachometer, odometer, trip meter, engine temp and low fuel lamp
Infotainment
N/A
Lights
Headlight, tail/brake light, turn signals, license plate light, speedometer and indicator lights
Standard Equipment
N/A
.png)
Scout
Starting at $13,399 US MSRPPlus destination charge and set-up.Logistics surcharge of $600 will apply.Trim & Color options White Smoke (ABS)
Engine & Drivetrain
Bore x Stroke
3.898 in x 2.898 in (99 mm x 73.6 mm)
Compression Ratio
10.7:1
Displacement
69 cu in (1,133 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed Loop Fuel Injection / 60 mm Bore
Engine Type
Liquid Cooled V-Twin (60 degrees)
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
10.926 : 1
Gear Ratio (2nd)
7.427 : 1
Gear Ratio (3rd)
5.918 : 1
Gear Ratio (4th)
5.022 : 1
Gear Ratio (5th)
4.439 : 1
Gear Ratio (6th)
3.810 : 1
Horsepower
100 HP
Peak Torque
72 ft-lbs (97.7 Nm)
Peak Torque RPM
5,900 rpm
Transmission/Final Drive
2.357 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
3.3 gal (12.5 L)
Ground Clearance
5.7 in (146 mm)
GVWR
988 lbs (449 kg)
Lean Angle
31°
Overall Height
42 in (1,068 mm)
Overall Length
91.5 in (2,324 mm)
Overall Width
36.1 in (916 mm)
Rake/Trail
29.0° / 4.7 in (120 mm)
Seat Height
25.6 in (649 mm)
Weight (Empty Tank / Full of Fuel)
541 lbs (245 kg) / 561 lbs (254 kg)
Wheelbase
62 in (1,575 mm)
Brakes
Front Brakes
Single / 298 mm Rotor / 2 Piston Caliper
Rear Brakes
Single / 298 mm Rotor / 1 Piston Caliper
Tires / Wheels
Front Tires
Pirelli Night Dragon 130/90B16 67H
Front Wheel
Contrast Cut 16 in x 3.5 in
Rear Tires
Pirelli Night Dragon 150/80B16 77H
Rear Wheel
Contrast Cut 16 in x 3.5 in
Suspension
Front Fork Tube Diameter
41 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (120 mm)
Rear Suspension
Dual Shocks
Rear Travel
3.0 in (76 mm)
Features
Color / Graphics
Black Metallic, Black Metallic ABS, Maroon Metallic ABS, White Smoke ABS, Silver Quartz Metallic / Black Metallic
Factory Warranty
2 Years, Unlimited Miles
Gauges
Digital tachometer, odometer, trip meter, engine temp and low fuel lamp
Infotainment
N/A
Lights
Headlight, tail/brake light, turn signals, license plate light, speedometer and indicator lights
Standard Equipment
N/A
.png)
Scout
Starting at $13,899 US MSRPPlus destination charge and set-up.Logistics surcharge of $600 will apply.Trim & Color options Silver Quartz Metallic / Black (ABS)
Engine & Drivetrain
Bore x Stroke
3.898 in x 2.898 in (99 mm x 73.6 mm)
Compression Ratio
10.7:1
Displacement
69 cu in (1,133 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed Loop Fuel Injection / 60 mm Bore
Engine Type
Liquid Cooled V-Twin (60 degrees)
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
10.926 : 1
Gear Ratio (2nd)
7.427 : 1
Gear Ratio (3rd)
5.918 : 1
Gear Ratio (4th)
5.022 : 1
Gear Ratio (5th)
4.439 : 1
Gear Ratio (6th)
3.810 : 1
Horsepower
100 HP
Peak Torque
72 ft-lbs (97.7 Nm)
Peak Torque RPM
5,900 rpm
Transmission/Final Drive
2.357 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
3.3 gal (12.5 L)
Ground Clearance
5.7 in (146 mm)
GVWR
988 lbs (449 kg)
Lean Angle
31°
Overall Height
42 in (1,068 mm)
Overall Length
91.5 in (2,324 mm)
Overall Width
36.1 in (916 mm)
Rake/Trail
29.0° / 4.7 in (120 mm)
Seat Height
25.6 in (649 mm)
Weight (Empty Tank / Full of Fuel)
541 lbs (245 kg) / 561 lbs (254 kg)
Wheelbase
62 in (1,575 mm)
Brakes
Front Brakes
Single / 298 mm Rotor / 2 Piston Caliper
Rear Brakes
Single / 298 mm Rotor / 1 Piston Caliper
Tires / Wheels
Front Tires
Pirelli Night Dragon 130/90B16 67H
Front Wheel
Contrast Cut 16 in x 3.5 in
Rear Tires
Pirelli Night Dragon 150/80B16 77H
Rear Wheel
Contrast Cut 16 in x 3.5 in
Suspension
Front Fork Tube Diameter
41 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (120 mm)
Rear Suspension
Dual Shocks
Rear Travel
3.0 in (76 mm)
Features
Color / Graphics
Black Metallic, Black Metallic ABS, Maroon Metallic ABS, White Smoke ABS, Silver Quartz Metallic / Black Metallic
Factory Warranty
2 Years, Unlimited Miles
Gauges
Digital tachometer, odometer, trip meter, engine temp and low fuel lamp
Infotainment
N/A
Lights
Headlight, tail/brake light, turn signals, license plate light, speedometer and indicator lights
Standard Equipment
N/A
.png)
Scout
Starting at $14,399 US MSRPPlus destination charge and set-up.Logistics surcharge of $600 will apply.Trim & Color options Riot Orange / Black
Engine & Drivetrain
Bore x Stroke
3.898 in x 2.898 in (99 mm x 73.6 mm)
Compression Ratio
10.7:1
Displacement
69 cu in (1,133 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed Loop Fuel Injection / 60 mm Bore
Engine Type
Liquid Cooled V-Twin (60 degrees)
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
10.926 : 1
Gear Ratio (2nd)
7.427 : 1
Gear Ratio (3rd)
5.918 : 1
Gear Ratio (4th)
5.022 : 1
Gear Ratio (5th)
4.439 : 1
Gear Ratio (6th)
3.810 : 1
Horsepower
100 HP
Peak Torque
72 ft-lbs (97.7 Nm)
Peak Torque RPM
5,900 rpm
Transmission/Final Drive
2.357 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
3.3 gal (12.5 L)
Ground Clearance
5.7 in (146 mm)
GVWR
988 lbs (449 kg)
Lean Angle
31°
Overall Height
42 in (1,068 mm)
Overall Length
91.5 in (2,324 mm)
Overall Width
36.1 in (916 mm)
Rake/Trail
29.0° / 4.7 in (120 mm)
Seat Height
25.6 in (649 mm)
Weight (Empty Tank / Full of Fuel)
541 lbs (245 kg) / 561 lbs (254 kg)
Wheelbase
62 in (1,575 mm)
Brakes
Front Brakes
Single / 298 mm Rotor / 2 Piston Caliper
Rear Brakes
Single / 298 mm Rotor / 1 Piston Caliper
Tires / Wheels
Front Tires
Pirelli Night Dragon 130/90B16 67H
Front Wheel
Contrast Cut 16 in x 3.5 in
Rear Tires
Pirelli Night Dragon 150/80B16 77H
Rear Wheel
Contrast Cut 16 in x 3.5 in
Suspension
Front Fork Tube Diameter
41 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (120 mm)
Rear Suspension
Dual Shocks
Rear Travel
3.0 in (76 mm)
Features
Color / Graphics
Black Metallic, Black Metallic ABS, Maroon Metallic ABS, White Smoke ABS, Silver Quartz Metallic / Black Metallic
Factory Warranty
2 Years, Unlimited Miles
Gauges
Digital tachometer, odometer, trip meter, engine temp and low fuel lamp
Infotainment
N/A
Lights
Headlight, tail/brake light, turn signals, license plate light, speedometer and indicator lights
Standard Equipment
N/A
.png)
Scout
Starting at $14,399 US MSRPPlus destination charge and set-up.Logistics surcharge of $600 will apply.Trim & Color options Riot Orange / Black
Engine & Drivetrain
Bore x Stroke
3.898 in x 2.898 in (99 mm x 73.6 mm)
Compression Ratio
10.7:1
Displacement
69 cu in (1,133 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed Loop Fuel Injection / 60 mm Bore
Engine Type
Liquid Cooled V-Twin (60 degrees)
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
10.926 : 1
Gear Ratio (2nd)
7.427 : 1
Gear Ratio (3rd)
5.918 : 1
Gear Ratio (4th)
5.022 : 1
Gear Ratio (5th)
4.439 : 1
Gear Ratio (6th)
3.810 : 1
Horsepower
100 HP
Peak Torque
72 ft-lbs (97.7 Nm)
Peak Torque RPM
5,900 rpm
Transmission/Final Drive
2.357 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
3.3 gal (12.5 L)
Ground Clearance
5.7 in (146 mm)
GVWR
988 lbs (449 kg)
Lean Angle
31°
Overall Height
42 in (1,068 mm)
Overall Length
91.5 in (2,324 mm)
Overall Width
36.1 in (916 mm)
Rake/Trail
29.0° / 4.7 in (120 mm)
Seat Height
25.6 in (649 mm)
Weight (Empty Tank / Full of Fuel)
541 lbs (245 kg) / 561 lbs (254 kg)
Wheelbase
62 in (1,575 mm)
Brakes
Front Brakes
Single / 298 mm Rotor / 2 Piston Caliper
Rear Brakes
Single / 298 mm Rotor / 1 Piston Caliper
Tires / Wheels
Front Tires
Pirelli Night Dragon 130/90B16 67H
Front Wheel
Contrast Cut 16 in x 3.5 in
Rear Tires
Pirelli Night Dragon 150/80B16 77H
Rear Wheel
Contrast Cut 16 in x 3.5 in
Suspension
Front Fork Tube Diameter
41 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (120 mm)
Rear Suspension
Dual Shocks
Rear Travel
3.0 in (76 mm)
Features
Color / Graphics
Black Metallic, Black Metallic ABS, Maroon Metallic ABS, White Smoke ABS, Silver Quartz Metallic / Black Metallic
Factory Warranty
2 Years, Unlimited Miles
Gauges
Digital tachometer, odometer, trip meter, engine temp and low fuel lamp
Infotainment
N/A
Lights
Headlight, tail/brake light, turn signals, license plate light, speedometer and indicator lights
Standard Equipment
N/A
.png)

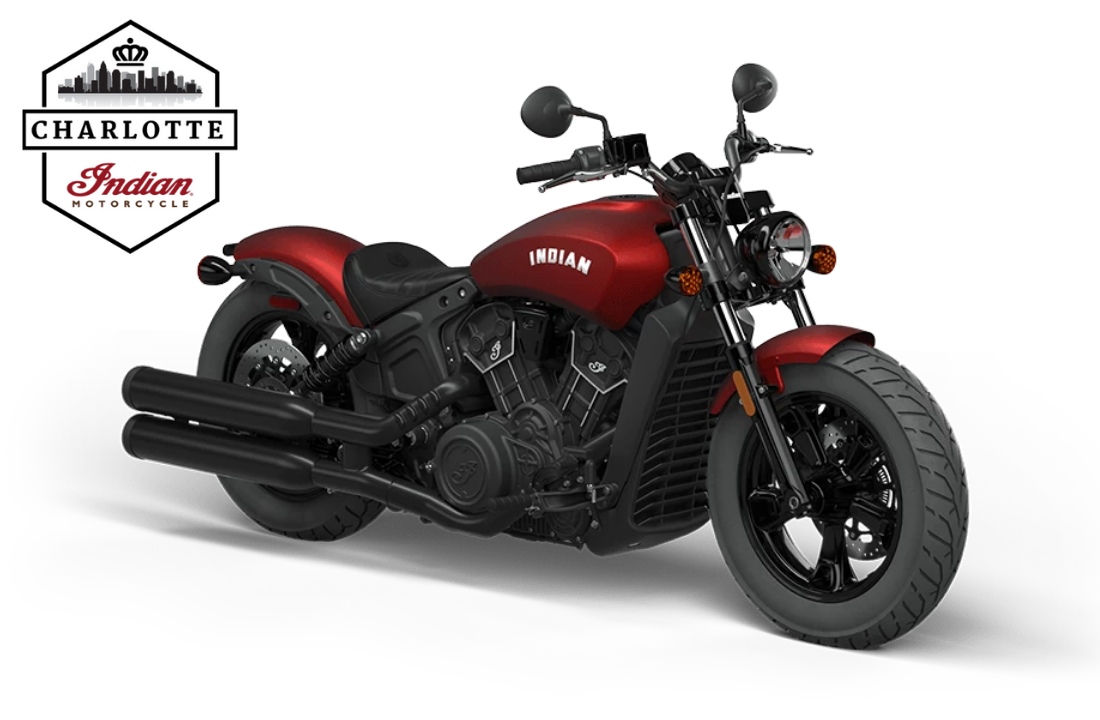

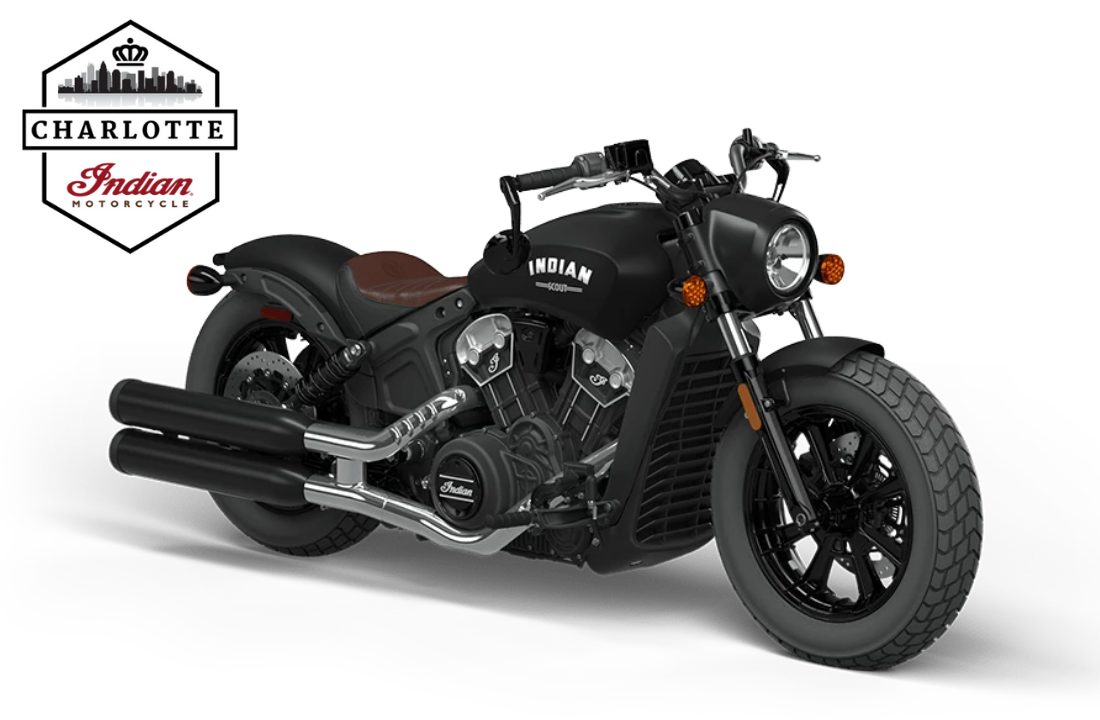

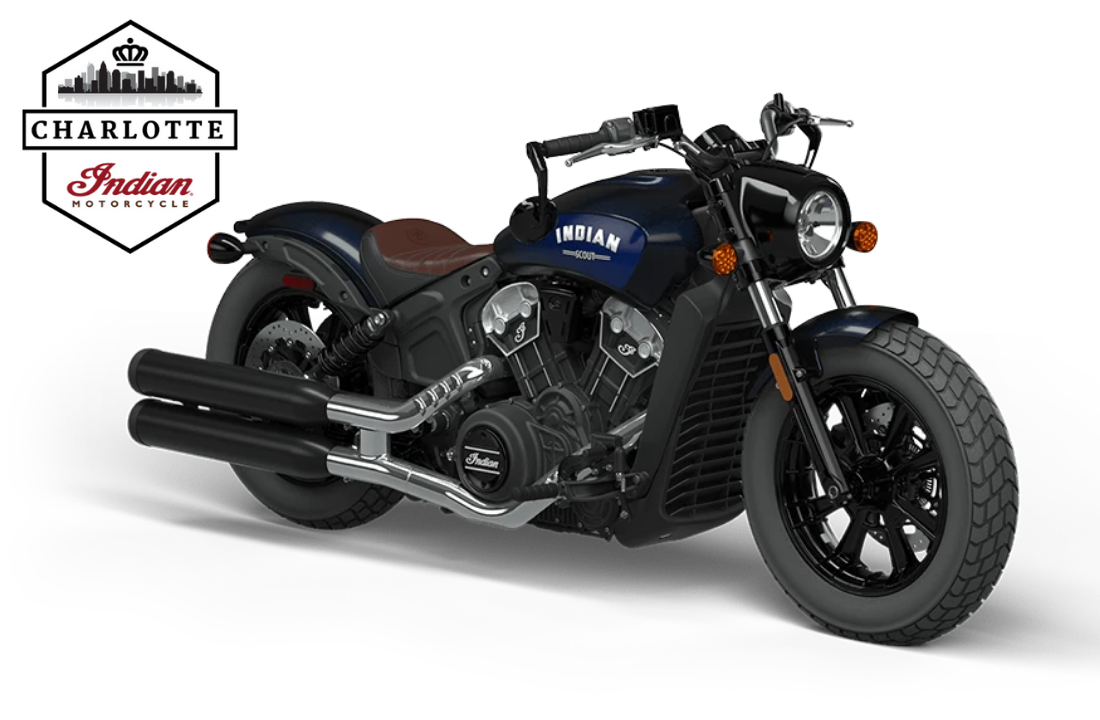

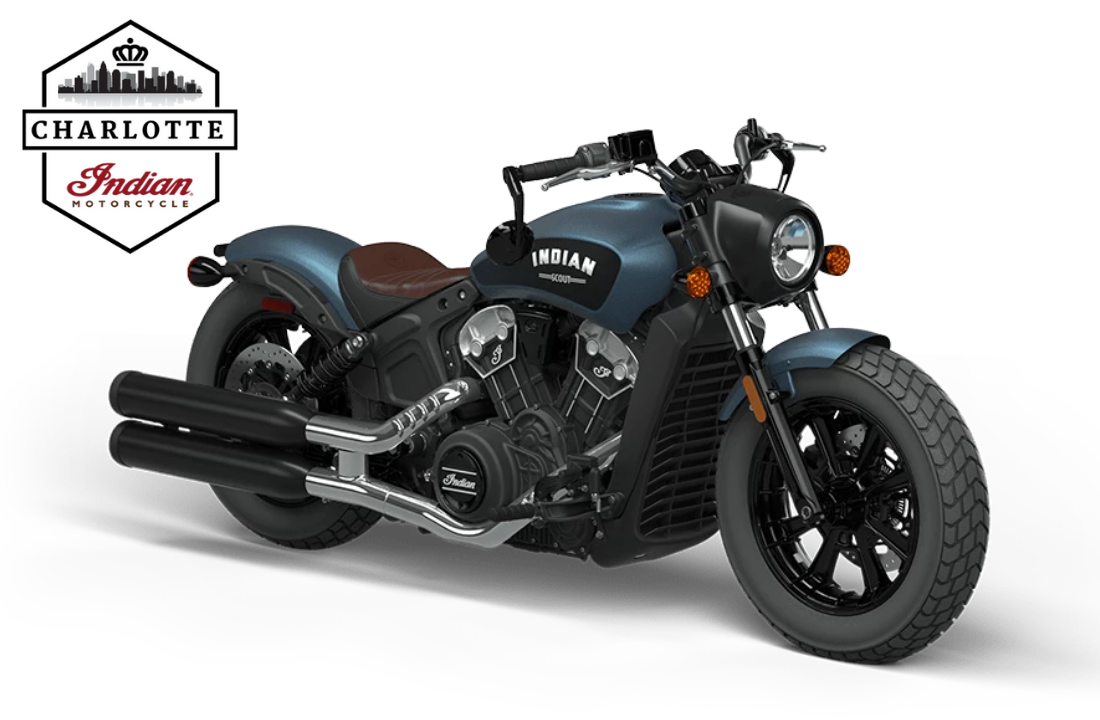

Scout Bobber
Starting at $10,999 US MSRPPlus destination charge and set-up.Logistics surcharge of $600 will apply.Trim & Color options Black Metallic
Engine & Drivetrain
Bore x Stroke
3.898 in x 2.898 in (99 mm x 73.6 mm)
Compression Ratio
10.7:1
Displacement
69 cu in (1,133 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed Loop Fuel Injection / 60 mm Bore
Engine Type
Liquid Cooled V-Twin (60 degrees)
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
10.926 : 1
Gear Ratio (2nd)
7.427 : 1
Gear Ratio (3rd)
5.918 : 1
Gear Ratio (4th)
5.022 : 1
Gear Ratio (5th)
4.439 : 1
Gear Ratio (6th)
3.810 : 1
Horsepower
100 HP
Peak Torque
72 ft-lbs (97.7 Nm)
Peak Torque RPM
5,900 rpm
Transmission/Final Drive
2.357 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
3.3 gal (12.5 L)
Ground Clearance
5.1 in (129 mm)
GVWR
988 lbs (449 kg)
Lean Angle
29°
Overall Height
41.5 in (1,053 mm)
Overall Length
87.5 in (2223 mm)
Overall Width
36.5 in (926 mm)
Rake/Trail
29.0° / 4.7 in (120 mm)
Seat Height
25.6 in (649 mm)
Weight (Empty Tank / Full of Fuel)
533 lbs (242 kg) / 553 lbs (251 kg)
Wheelbase
62 in (1,576 mm)
Brakes
Front Brakes
Single / 298 mm Rotor / 2 Piston Caliper
Rear Brakes
Single / 298 mm Rotor / 1 Piston Caliper
Tires / Wheels
Front Tires
Pirelli MT60RS 130/90B16 67H
Front Wheel
Cast Black 16 in x 3.5 in
Rear Tires
Pirelli MT60RS 150/80B16 77H
Rear Wheel
Cast Black 16 in x 3.5 in
Suspension
Front Fork Tube Diameter
41 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (120 mm)
Rear Suspension
Dual Shocks
Rear Travel
2.0 in (51 mm)
Features
Color / Graphics
Black Metallic, Black Metallic ABS, Silver Quartz Smoke ABS, Stealth Gray ABS, Spirit Blue Metallic ABS
Factory Warranty
2 Years, Unlimited Miles
Gauges
Digital tachometer, odometer, trip meter, engine temp, low fuel lamp
Infotainment
N/A
Lights
Headlight, tail/brake light, turn signals, license plate light, speedometer and indicator lights
Standard Equipment
N/A
(1).png)
Scout Bobber
Starting at $11,899 US MSRPPlus destination charge and set-up.Logistics surcharge of $600 will apply.Trim & Color options Black Metallic (ABS)
Engine & Drivetrain
Bore x Stroke
3.898 in x 2.898 in (99 mm x 73.6 mm)
Compression Ratio
10.7:1
Displacement
69 cu in (1,133 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed Loop Fuel Injection / 60 mm Bore
Engine Type
Liquid Cooled V-Twin (60 degrees)
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
10.926 : 1
Gear Ratio (2nd)
7.427 : 1
Gear Ratio (3rd)
5.918 : 1
Gear Ratio (4th)
5.022 : 1
Gear Ratio (5th)
4.439 : 1
Gear Ratio (6th)
3.810 : 1
Horsepower
100 HP
Peak Torque
72 ft-lbs (97.7 Nm)
Peak Torque RPM
5,900 rpm
Transmission/Final Drive
2.357 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
3.3 gal (12.5 L)
Ground Clearance
5.1 in (129 mm)
GVWR
988 lbs (449 kg)
Lean Angle
29°
Overall Height
41.5 in (1,053 mm)
Overall Length
87.5 in (2223 mm)
Overall Width
36.5 in (926 mm)
Rake/Trail
29.0° / 4.7 in (120 mm)
Seat Height
25.6 in (649 mm)
Weight (Empty Tank / Full of Fuel)
533 lbs (242 kg) / 553 lbs (251 kg)
Wheelbase
62 in (1,576 mm)
Brakes
Front Brakes
Single / 298 mm Rotor / 2 Piston Caliper
Rear Brakes
Single / 298 mm Rotor / 1 Piston Caliper
Tires / Wheels
Front Tires
Pirelli MT60RS 130/90B16 67H
Front Wheel
Cast Black 16 in x 3.5 in
Rear Tires
Pirelli MT60RS 150/80B16 77H
Rear Wheel
Cast Black 16 in x 3.5 in
Suspension
Front Fork Tube Diameter
41 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (120 mm)
Rear Suspension
Dual Shocks
Rear Travel
2.0 in (51 mm)
Features
Color / Graphics
Black Metallic, Black Metallic ABS, Silver Quartz Smoke ABS, Stealth Gray ABS, Spirit Blue Metallic ABS
Factory Warranty
2 Years, Unlimited Miles
Gauges
Digital tachometer, odometer, trip meter, engine temp, low fuel lamp
Infotainment
N/A
Lights
Headlight, tail/brake light, turn signals, license plate light, speedometer and indicator lights
Standard Equipment
N/A
.png)
Scout Bobber
Starting at $12,399 US MSRPPlus destination charge and set-up.Logistics surcharge of $600 will apply.Trim & Color options Black Smoke (ABS)
Engine & Drivetrain
Bore x Stroke
3.898 in x 2.898 in (99 mm x 73.6 mm)
Compression Ratio
10.7:1
Displacement
69 cu in (1,133 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed Loop Fuel Injection / 60 mm Bore
Engine Type
Liquid Cooled V-Twin (60 degrees)
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
10.926 : 1
Gear Ratio (2nd)
7.427 : 1
Gear Ratio (3rd)
5.918 : 1
Gear Ratio (4th)
5.022 : 1
Gear Ratio (5th)
4.439 : 1
Gear Ratio (6th)
3.810 : 1
Horsepower
100 HP
Peak Torque
72 ft-lbs (97.7 Nm)
Peak Torque RPM
5,900 rpm
Transmission/Final Drive
2.357 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
3.3 gal (12.5 L)
Ground Clearance
5.1 in (129 mm)
GVWR
988 lbs (449 kg)
Lean Angle
29°
Overall Height
41.5 in (1,053 mm)
Overall Length
87.5 in (2223 mm)
Overall Width
36.5 in (926 mm)
Rake/Trail
29.0° / 4.7 in (120 mm)
Seat Height
25.6 in (649 mm)
Weight (Empty Tank / Full of Fuel)
533 lbs (242 kg) / 553 lbs (251 kg)
Wheelbase
62 in (1,576 mm)
Brakes
Front Brakes
Single / 298 mm Rotor / 2 Piston Caliper
Rear Brakes
Single / 298 mm Rotor / 1 Piston Caliper
Tires / Wheels
Front Tires
Pirelli MT60RS 130/90B16 67H
Front Wheel
Cast Black 16 in x 3.5 in
Rear Tires
Pirelli MT60RS 150/80B16 77H
Rear Wheel
Cast Black 16 in x 3.5 in
Suspension
Front Fork Tube Diameter
41 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (120 mm)
Rear Suspension
Dual Shocks
Rear Travel
2.0 in (51 mm)
Features
Color / Graphics
Black Metallic, Black Metallic ABS, Silver Quartz Smoke ABS, Stealth Gray ABS, Spirit Blue Metallic ABS
Factory Warranty
2 Years, Unlimited Miles
Gauges
Digital tachometer, odometer, trip meter, engine temp, low fuel lamp
Infotainment
N/A
Lights
Headlight, tail/brake light, turn signals, license plate light, speedometer and indicator lights
Standard Equipment
N/A
.png)
Scout Bobber
Starting at $12,899 US MSRPPlus destination charge and set-up.Logistics surcharge of $600 will apply.Trim & Color options Silver Quartz Smoke (ABS).png)
Scout Bobber
Starting at $12,899 US MSRPPlus destination charge and set-up.Logistics surcharge of $600 will apply.Trim & Color options Alumina Jade Smoke (ABS)
Engine & Drivetrain
Bore x Stroke
3.898 in x 2.898 in (99 mm x 73.6 mm)
Compression Ratio
10.7:1
Displacement
69 cu in (1,133 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed Loop Fuel Injection / 60 mm Bore
Engine Type
Liquid Cooled V-Twin (60 degrees)
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
10.926 : 1
Gear Ratio (2nd)
7.427 : 1
Gear Ratio (3rd)
5.918 : 1
Gear Ratio (4th)
5.022 : 1
Gear Ratio (5th)
4.439 : 1
Gear Ratio (6th)
3.810 : 1
Horsepower
100 HP
Peak Torque
72 ft-lbs (97.7 Nm)
Peak Torque RPM
5,900 rpm
Transmission/Final Drive
2.357 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
3.3 gal (12.5 L)
Ground Clearance
5.1 in (129 mm)
GVWR
988 lbs (449 kg)
Lean Angle
29°
Overall Height
41.5 in (1,053 mm)
Overall Length
87.5 in (2223 mm)
Overall Width
36.5 in (926 mm)
Rake/Trail
29.0° / 4.7 in (120 mm)
Seat Height
25.6 in (649 mm)
Weight (Empty Tank / Full of Fuel)
533 lbs (242 kg) / 553 lbs (251 kg)
Wheelbase
62 in (1,576 mm)
Brakes
Front Brakes
Single / 298 mm Rotor / 2 Piston Caliper
Rear Brakes
Single / 298 mm Rotor / 1 Piston Caliper
Tires / Wheels
Front Tires
Pirelli MT60RS 130/90B16 67H
Front Wheel
Cast Black 16 in x 3.5 in
Rear Tires
Pirelli MT60RS 150/80B16 77H
Rear Wheel
Cast Black 16 in x 3.5 in
Suspension
Front Fork Tube Diameter
41 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (120 mm)
Rear Suspension
Dual Shocks
Rear Travel
2.0 in (51 mm)
Features
Color / Graphics
Black Metallic, Black Metallic ABS, Silver Quartz Smoke ABS, Stealth Gray ABS, Spirit Blue Metallic ABS
Factory Warranty
2 Years, Unlimited Miles
Gauges
Digital tachometer, odometer, trip meter, engine temp, low fuel lamp
Infotainment
N/A
Lights
Headlight, tail/brake light, turn signals, license plate light, speedometer and indicator lights
Standard Equipment
N/A
.png)
Scout Bobber
Starting at $12,399 US MSRPPlus destination charge and set-up.Logistics surcharge of $600 will apply.Trim & Color options Titanium Metallic (ABS)
Engine & Drivetrain
Bore x Stroke
3.898 in x 2.898 in (99 mm x 73.6 mm)
Compression Ratio
10.7:1
Displacement
69 cu in (1,133 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed Loop Fuel Injection / 60 mm Bore
Engine Type
Liquid Cooled V-Twin (60 degrees)
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
10.926 : 1
Gear Ratio (2nd)
7.427 : 1
Gear Ratio (3rd)
5.918 : 1
Gear Ratio (4th)
5.022 : 1
Gear Ratio (5th)
4.439 : 1
Gear Ratio (6th)
3.810 : 1
Horsepower
100 HP
Peak Torque
72 ft-lbs (97.7 Nm)
Peak Torque RPM
5,900 rpm
Transmission/Final Drive
2.357 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
3.3 gal (12.5 L)
Ground Clearance
5.1 in (129 mm)
GVWR
988 lbs (449 kg)
Lean Angle
29°
Overall Height
41.5 in (1,053 mm)
Overall Length
87.5 in (2223 mm)
Overall Width
36.5 in (926 mm)
Rake/Trail
29.0° / 4.7 in (120 mm)
Seat Height
25.6 in (649 mm)
Weight (Empty Tank / Full of Fuel)
533 lbs (242 kg) / 553 lbs (251 kg)
Wheelbase
62 in (1,576 mm)
Brakes
Front Brakes
Single / 298 mm Rotor / 2 Piston Caliper
Rear Brakes
Single / 298 mm Rotor / 1 Piston Caliper
Tires / Wheels
Front Tires
Pirelli MT60RS 130/90B16 67H
Front Wheel
Cast Black 16 in x 3.5 in
Rear Tires
Pirelli MT60RS 150/80B16 77H
Rear Wheel
Cast Black 16 in x 3.5 in
Suspension
Front Fork Tube Diameter
41 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (120 mm)
Rear Suspension
Dual Shocks
Rear Travel
2.0 in (51 mm)
Features
Color / Graphics
Black Metallic, Black Metallic ABS, Silver Quartz Smoke ABS, Stealth Gray ABS, Spirit Blue Metallic ABS
Factory Warranty
2 Years, Unlimited Miles
Gauges
Digital tachometer, odometer, trip meter, engine temp, low fuel lamp
Infotainment
N/A
Lights
Headlight, tail/brake light, turn signals, license plate light, speedometer and indicator lights
Standard Equipment
N/A
.png)
Scout Bobber
Starting at $12,399 US MSRPPlus destination charge and set-up.Logistics surcharge of $600 will apply.Trim & Color options Maroon Metallic Smoke (ABS)
Engine & Drivetrain
Bore x Stroke
3.898 in x 2.898 in (99 mm x 73.6 mm)
Compression Ratio
10.7:1
Displacement
69 cu in (1,133 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed Loop Fuel Injection / 60 mm Bore
Engine Type
Liquid Cooled V-Twin (60 degrees)
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
10.926 : 1
Gear Ratio (2nd)
7.427 : 1
Gear Ratio (3rd)
5.918 : 1
Gear Ratio (4th)
5.022 : 1
Gear Ratio (5th)
4.439 : 1
Gear Ratio (6th)
3.810 : 1
Horsepower
100 HP
Peak Torque
72 ft-lbs (97.7 Nm)
Peak Torque RPM
5,900 rpm
Transmission/Final Drive
2.357 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
3.3 gal (12.5 L)
Ground Clearance
5.1 in (129 mm)
GVWR
988 lbs (449 kg)
Lean Angle
29°
Overall Height
41.5 in (1,053 mm)
Overall Length
87.5 in (2223 mm)
Overall Width
36.5 in (926 mm)
Rake/Trail
29.0° / 4.7 in (120 mm)
Seat Height
25.6 in (649 mm)
Weight (Empty Tank / Full of Fuel)
533 lbs (242 kg) / 553 lbs (251 kg)
Wheelbase
62 in (1,576 mm)
Brakes
Front Brakes
Single / 298 mm Rotor / 2 Piston Caliper
Rear Brakes
Single / 298 mm Rotor / 1 Piston Caliper
Tires / Wheels
Front Tires
Pirelli MT60RS 130/90B16 67H
Front Wheel
Cast Black 16 in x 3.5 in
Rear Tires
Pirelli MT60RS 150/80B16 77H
Rear Wheel
Cast Black 16 in x 3.5 in
Suspension
Front Fork Tube Diameter
41 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (120 mm)
Rear Suspension
Dual Shocks
Rear Travel
2.0 in (51 mm)
Features
Color / Graphics
Black Metallic, Black Metallic ABS, Silver Quartz Smoke ABS, Stealth Gray ABS, Spirit Blue Metallic ABS
Factory Warranty
2 Years, Unlimited Miles
Gauges
Digital tachometer, odometer, trip meter, engine temp, low fuel lamp
Infotainment
N/A
Lights
Headlight, tail/brake light, turn signals, license plate light, speedometer and indicator lights
Standard Equipment
N/A
.png)
Scout Bobber
Starting at $13,399 US MSRPPlus destination charge and set-up.Logistics surcharge of $600 will apply.Trim & Color options Indy Red
Engine & Drivetrain
Bore x Stroke
3.898 in x 2.898 in (99 mm x 73.6 mm)
Compression Ratio
10.7:1
Displacement
69 cu in (1,133 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed Loop Fuel Injection / 60 mm Bore
Engine Type
Liquid Cooled V-Twin (60 degrees)
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
10.926 : 1
Gear Ratio (2nd)
7.427 : 1
Gear Ratio (3rd)
5.918 : 1
Gear Ratio (4th)
5.022 : 1
Gear Ratio (5th)
4.439 : 1
Gear Ratio (6th)
3.810 : 1
Horsepower
100 HP
Peak Torque
72 ft-lbs (97.7 Nm)
Peak Torque RPM
5,900 rpm
Transmission/Final Drive
2.357 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
3.3 gal (12.5 L)
Ground Clearance
5.1 in (129 mm)
GVWR
988 lbs (449 kg)
Lean Angle
29°
Overall Height
41.5 in (1,053 mm)
Overall Length
87.5 in (2223 mm)
Overall Width
36.5 in (926 mm)
Rake/Trail
29.0° / 4.7 in (120 mm)
Seat Height
25.6 in (649 mm)
Weight (Empty Tank / Full of Fuel)
533 lbs (242 kg) / 553 lbs (251 kg)
Wheelbase
62 in (1,576 mm)
Brakes
Front Brakes
Single / 298 mm Rotor / 2 Piston Caliper
Rear Brakes
Single / 298 mm Rotor / 1 Piston Caliper
Tires / Wheels
Front Tires
Pirelli MT60RS 130/90B16 67H
Front Wheel
Cast Black 16 in x 3.5 in
Rear Tires
Pirelli MT60RS 150/80B16 77H
Rear Wheel
Cast Black 16 in x 3.5 in
Suspension
Front Fork Tube Diameter
41 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (120 mm)
Rear Suspension
Dual Shocks
Rear Travel
2.0 in (51 mm)
Features
Color / Graphics
Black Metallic, Black Metallic ABS, Silver Quartz Smoke ABS, Stealth Gray ABS, Spirit Blue Metallic ABS
Factory Warranty
2 Years, Unlimited Miles
Gauges
Digital tachometer, odometer, trip meter, engine temp, low fuel lamp
Infotainment
N/A
Lights
Headlight, tail/brake light, turn signals, license plate light, speedometer and indicator lights
Standard Equipment
N/A
.png)
Scout Bobber
Starting at $13,399 US MSRPPlus destination charge and set-up.Logistics surcharge of $600 will apply.Trim & Color options Blue Slate Smoke
Engine & Drivetrain
Bore x Stroke
3.898 in x 2.898 in (99 mm x 73.6 mm)
Compression Ratio
10.7:1
Displacement
69 cu in (1,133 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed Loop Fuel Injection / 60 mm Bore
Engine Type
Liquid Cooled V-Twin (60 degrees)
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
10.926 : 1
Gear Ratio (2nd)
7.427 : 1
Gear Ratio (3rd)
5.918 : 1
Gear Ratio (4th)
5.022 : 1
Gear Ratio (5th)
4.439 : 1
Gear Ratio (6th)
3.810 : 1
Horsepower
100 HP
Peak Torque
72 ft-lbs (97.7 Nm)
Peak Torque RPM
5,900 rpm
Transmission/Final Drive
2.357 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
3.3 gal (12.5 L)
Ground Clearance
5.1 in (129 mm)
GVWR
988 lbs (449 kg)
Lean Angle
29°
Overall Height
41.5 in (1,053 mm)
Overall Length
87.5 in (2223 mm)
Overall Width
36.5 in (926 mm)
Rake/Trail
29.0° / 4.7 in (120 mm)
Seat Height
25.6 in (649 mm)
Weight (Empty Tank / Full of Fuel)
533 lbs (242 kg) / 553 lbs (251 kg)
Wheelbase
62 in (1,576 mm)
Brakes
Front Brakes
Single / 298 mm Rotor / 2 Piston Caliper
Rear Brakes
Single / 298 mm Rotor / 1 Piston Caliper
Tires / Wheels
Front Tires
Pirelli MT60RS 130/90B16 67H
Front Wheel
Cast Black 16 in x 3.5 in
Rear Tires
Pirelli MT60RS 150/80B16 77H
Rear Wheel
Cast Black 16 in x 3.5 in
Suspension
Front Fork Tube Diameter
41 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (120 mm)
Rear Suspension
Dual Shocks
Rear Travel
2.0 in (51 mm)
Features
Color / Graphics
Black Metallic, Black Metallic ABS, Silver Quartz Smoke ABS, Stealth Gray ABS, Spirit Blue Metallic ABS
Factory Warranty
2 Years, Unlimited Miles
Gauges
Digital tachometer, odometer, trip meter, engine temp, low fuel lamp
Infotainment
N/A
Lights
Headlight, tail/brake light, turn signals, license plate light, speedometer and indicator lights
Standard Equipment
N/A
.png)
Scout Bobber
Starting at $13,399 US MSRPPlus destination charge and set-up.Logistics surcharge of $600 will apply.Trim & Color options Black Azure Crystal
Engine & Drivetrain
Bore x Stroke
3.898 in x 2.898 in (99 mm x 73.6 mm)
Compression Ratio
10.7:1
Displacement
69 cu in (1,133 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed Loop Fuel Injection / 60 mm Bore
Engine Type
Liquid Cooled V-Twin (60 degrees)
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
10.926 : 1
Gear Ratio (2nd)
7.427 : 1
Gear Ratio (3rd)
5.918 : 1
Gear Ratio (4th)
5.022 : 1
Gear Ratio (5th)
4.439 : 1
Gear Ratio (6th)
3.810 : 1
Horsepower
100 HP
Peak Torque
72 ft-lbs (97.7 Nm)
Peak Torque RPM
5,900 rpm
Transmission/Final Drive
2.357 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
3.3 gal (12.5 L)
Ground Clearance
5.1 in (129 mm)
GVWR
988 lbs (449 kg)
Lean Angle
29°
Overall Height
41.5 in (1,053 mm)
Overall Length
87.5 in (2223 mm)
Overall Width
36.5 in (926 mm)
Rake/Trail
29.0° / 4.7 in (120 mm)
Seat Height
25.6 in (649 mm)
Weight (Empty Tank / Full of Fuel)
533 lbs (242 kg) / 553 lbs (251 kg)
Wheelbase
62 in (1,576 mm)
Brakes
Front Brakes
Single / 298 mm Rotor / 2 Piston Caliper
Rear Brakes
Single / 298 mm Rotor / 1 Piston Caliper
Tires / Wheels
Front Tires
Pirelli MT60RS 130/90B16 67H
Front Wheel
Cast Black 16 in x 3.5 in
Rear Tires
Pirelli MT60RS 150/80B16 77H
Rear Wheel
Cast Black 16 in x 3.5 in
Suspension
Front Fork Tube Diameter
41 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (120 mm)
Rear Suspension
Dual Shocks
Rear Travel
2.0 in (51 mm)
Features
Color / Graphics
Black Metallic, Black Metallic ABS, Silver Quartz Smoke ABS, Stealth Gray ABS, Spirit Blue Metallic ABS
Factory Warranty
2 Years, Unlimited Miles
Gauges
Digital tachometer, odometer, trip meter, engine temp, low fuel lamp
Infotainment
N/A
Lights
Headlight, tail/brake light, turn signals, license plate light, speedometer and indicator lights
Standard Equipment
N/A
.png)
Scout Bobber Twenty
Starting at $11,999 US MSRPPlus destination charge and set-up.Logistics surcharge of $600 will apply.Trim & Color options Black Metallic
Engine & Drivetrain
Bore x Stroke
3.898 in x 2.898 in (99 mm x 73.6 mm)
Compression Ratio
10.7:1
Displacement
69 cu in (1,133 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed Loop Fuel Injection / 60 mm Bore
Engine Type
Liquid Cooled V-Twin (60 degrees)
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
10.926 : 1
Gear Ratio (2nd)
7.427 : 1
Gear Ratio (3rd)
5.918 : 1
Gear Ratio (4th)
5.022 : 1
Gear Ratio (5th)
4.439 : 1
Gear Ratio (6th)
3.810 : 1
Horsepower
100 HP
Peak Torque
72 ft-lbs (97.7 Nm)
Peak Torque RPM
5,900 rpm
Transmission/Final Drive
2.357 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
3.3 gal (12.5 L)
Ground Clearance
5.1 in (129 mm)
GVWR
988 lbs (449 kg)
Lean Angle
29°
Overall Height
46.5 in (1,181 mm)
Overall Length
87.5 in (2223 mm)
Overall Width
39.2 in (995 mm)
Rake/Trail
29.0° / 4.7 in (120 mm)
Seat Height
25.6 in (649 mm)
Weight (Empty Tank / Full of Fuel)
547 lbs (248 kg) / 567 lbs (257 kg)
Wheelbase
62 in (1,576 mm)
Brakes
Front Brakes
Single / 298 mm Rotor / 2 Piston Caliper
Rear Brakes
Single / 298 mm Rotor / 1 Piston Caliper
Tires / Wheels
Front Tires
Pirelli MT60RS 130/90B16 67H
Front Wheel
Black Wire 16 in x 3.5 in
Rear Tires
Pirelli MT60RS 150/80B16 77H
Rear Wheel
Black Wire 16 in x 3.5 in
Suspension
Front Fork Tube Diameter
41 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (120 mm)
Rear Suspension
Dual Shocks
Rear Travel
2.0 in (51 mm)
Features
Color / Graphics
Black Metallic, Black Metallic ABS, Silver Quartz Smoke ABS, Stealth Gray ABS, Spirit Blue Metallic ABS
Factory Warranty
2 Years, Unlimited Miles
Gauges
Digital tachometer, odometer, trip meter, engine temp, low fuel lamp
Infotainment
N/A
Lights
Headlight, tail/brake light, turn signals, license plate light, speedometer and indicator lights
Standard Equipment
Wire wheels
(1).png)
Scout Bobber Twenty
Starting at $12,899 US MSRPPlus destination charge and set-up.Logistics surcharge of $600 will apply.Trim & Color options Black Metallic (ABS)
Engine & Drivetrain
Bore x Stroke
3.898 in x 2.898 in (99 mm x 73.6 mm)
Compression Ratio
10.7:1
Displacement
69 cu in (1,133 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed Loop Fuel Injection / 60 mm Bore
Engine Type
Liquid Cooled V-Twin (60 degrees)
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
10.926 : 1
Gear Ratio (2nd)
7.427 : 1
Gear Ratio (3rd)
5.918 : 1
Gear Ratio (4th)
5.022 : 1
Gear Ratio (5th)
4.439 : 1
Gear Ratio (6th)
3.810 : 1
Horsepower
100 HP
Peak Torque
72 ft-lbs (97.7 Nm)
Peak Torque RPM
5,900 rpm
Transmission/Final Drive
2.357 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
3.3 gal (12.5 L)
Ground Clearance
5.1 in (129 mm)
GVWR
988 lbs (449 kg)
Lean Angle
29°
Overall Height
46.5 in (1,181 mm)
Overall Length
87.5 in (2223 mm)
Overall Width
39.2 in (995 mm)
Rake/Trail
29.0° / 4.7 in (120 mm)
Seat Height
25.6 in (649 mm)
Weight (Empty Tank / Full of Fuel)
547 lbs (248 kg) / 567 lbs (257 kg)
Wheelbase
62 in (1,576 mm)
Brakes
Front Brakes
Single / 298 mm Rotor / 2 Piston Caliper
Rear Brakes
Single / 298 mm Rotor / 1 Piston Caliper
Tires / Wheels
Front Tires
Pirelli MT60RS 130/90B16 67H
Front Wheel
Black Wire 16 in x 3.5 in
Rear Tires
Pirelli MT60RS 150/80B16 77H
Rear Wheel
Black Wire 16 in x 3.5 in
Suspension
Front Fork Tube Diameter
41 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (120 mm)
Rear Suspension
Dual Shocks
Rear Travel
2.0 in (51 mm)
Features
Color / Graphics
Black Metallic, Black Metallic ABS, Silver Quartz Smoke ABS, Stealth Gray ABS, Spirit Blue Metallic ABS
Factory Warranty
2 Years, Unlimited Miles
Gauges
Digital tachometer, odometer, trip meter, engine temp, low fuel lamp
Infotainment
N/A
Lights
Headlight, tail/brake light, turn signals, license plate light, speedometer and indicator lights
Standard Equipment
Wire wheels
.png)
Scout Bobber Twenty
Starting at $13,399 US MSRPPlus destination charge and set-up.Logistics surcharge of $600 will apply.Trim & Color options Silver Quartz Smoke (ABS)
Engine & Drivetrain
Bore x Stroke
3.898 in x 2.898 in (99 mm x 73.6 mm)
Compression Ratio
10.7:1
Displacement
69 cu in (1,133 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed Loop Fuel Injection / 60 mm Bore
Engine Type
Liquid Cooled V-Twin (60 degrees)
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
10.926 : 1
Gear Ratio (2nd)
7.427 : 1
Gear Ratio (3rd)
5.918 : 1
Gear Ratio (4th)
5.022 : 1
Gear Ratio (5th)
4.439 : 1
Gear Ratio (6th)
3.810 : 1
Horsepower
100 HP
Peak Torque
72 ft-lbs (97.7 Nm)
Peak Torque RPM
5,900 rpm
Transmission/Final Drive
2.357 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
3.3 gal (12.5 L)
Ground Clearance
5.1 in (129 mm)
GVWR
988 lbs (449 kg)
Lean Angle
29°
Overall Height
46.5 in (1,181 mm)
Overall Length
87.5 in (2223 mm)
Overall Width
39.2 in (995 mm)
Rake/Trail
29.0° / 4.7 in (120 mm)
Seat Height
25.6 in (649 mm)
Weight (Empty Tank / Full of Fuel)
547 lbs (248 kg) / 567 lbs (257 kg)
Wheelbase
62 in (1,576 mm)
Brakes
Front Brakes
Single / 298 mm Rotor / 2 Piston Caliper
Rear Brakes
Single / 298 mm Rotor / 1 Piston Caliper
Tires / Wheels
Front Tires
Pirelli MT60RS 130/90B16 67H
Front Wheel
Black Wire 16 in x 3.5 in
Rear Tires
Pirelli MT60RS 150/80B16 77H
Rear Wheel
Black Wire 16 in x 3.5 in
Suspension
Front Fork Tube Diameter
41 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (120 mm)
Rear Suspension
Dual Shocks
Rear Travel
2.0 in (51 mm)
Features
Color / Graphics
Black Metallic, Black Metallic ABS, Silver Quartz Smoke ABS, Stealth Gray ABS, Spirit Blue Metallic ABS
Factory Warranty
2 Years, Unlimited Miles
Gauges
Digital tachometer, odometer, trip meter, engine temp, low fuel lamp
Infotainment
N/A
Lights
Headlight, tail/brake light, turn signals, license plate light, speedometer and indicator lights
Standard Equipment
Wire wheels
.png)
Scout Bobber Twenty
Starting at $13,399 US MSRPPlus destination charge and set-up.Logistics surcharge of $600 will apply.Trim & Color options Stealth Gray (ABS)
Engine & Drivetrain
Bore x Stroke
3.898 in x 2.898 in (99 mm x 73.6 mm)
Compression Ratio
10.7:1
Displacement
69 cu in (1,133 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed Loop Fuel Injection / 60 mm Bore
Engine Type
Liquid Cooled V-Twin (60 degrees)
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
10.926 : 1
Gear Ratio (2nd)
7.427 : 1
Gear Ratio (3rd)
5.918 : 1
Gear Ratio (4th)
5.022 : 1
Gear Ratio (5th)
4.439 : 1
Gear Ratio (6th)
3.810 : 1
Horsepower
100 HP
Peak Torque
72 ft-lbs (97.7 Nm)
Peak Torque RPM
5,900 rpm
Transmission/Final Drive
2.357 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
3.3 gal (12.5 L)
Ground Clearance
5.1 in (129 mm)
GVWR
988 lbs (449 kg)
Lean Angle
29°
Overall Height
46.5 in (1,181 mm)
Overall Length
87.5 in (2223 mm)
Overall Width
39.2 in (995 mm)
Rake/Trail
29.0° / 4.7 in (120 mm)
Seat Height
25.6 in (649 mm)
Weight (Empty Tank / Full of Fuel)
547 lbs (248 kg) / 567 lbs (257 kg)
Wheelbase
62 in (1,576 mm)
Brakes
Front Brakes
Single / 298 mm Rotor / 2 Piston Caliper
Rear Brakes
Single / 298 mm Rotor / 1 Piston Caliper
Tires / Wheels
Front Tires
Pirelli MT60RS 130/90B16 67H
Front Wheel
Black Wire 16 in x 3.5 in
Rear Tires
Pirelli MT60RS 150/80B16 77H
Rear Wheel
Black Wire 16 in x 3.5 in
Suspension
Front Fork Tube Diameter
41 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (120 mm)
Rear Suspension
Dual Shocks
Rear Travel
2.0 in (51 mm)
Features
Color / Graphics
Black Metallic, Black Metallic ABS, Silver Quartz Smoke ABS, Stealth Gray ABS, Spirit Blue Metallic ABS
Factory Warranty
2 Years, Unlimited Miles
Gauges
Digital tachometer, odometer, trip meter, engine temp, low fuel lamp
Infotainment
N/A
Lights
Headlight, tail/brake light, turn signals, license plate light, speedometer and indicator lights
Standard Equipment
Wire wheels
.png)
Scout Bobber Twenty
Starting at $13,399 US MSRPPlus destination charge and set-up.Logistics surcharge of $600 will apply.Trim & Color options Spirit Blue Metallic (ABS)
Engine & Drivetrain
Bore x Stroke
3.898 in x 2.898 in (99 mm x 73.6 mm)
Compression Ratio
10.7:1
Displacement
69 cu in (1,133 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed Loop Fuel Injection / 60 mm Bore
Engine Type
Liquid Cooled V-Twin (60 degrees)
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
10.926 : 1
Gear Ratio (2nd)
7.427 : 1
Gear Ratio (3rd)
5.918 : 1
Gear Ratio (4th)
5.022 : 1
Gear Ratio (5th)
4.439 : 1
Gear Ratio (6th)
3.810 : 1
Horsepower
100 HP
Peak Torque
72 ft-lbs (97.7 Nm)
Peak Torque RPM
5,900 rpm
Transmission/Final Drive
2.357 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
3.3 gal (12.5 L)
Ground Clearance
5.1 in (129 mm)
GVWR
988 lbs (449 kg)
Lean Angle
29°
Overall Height
46.5 in (1,181 mm)
Overall Length
87.5 in (2223 mm)
Overall Width
39.2 in (995 mm)
Rake/Trail
29.0° / 4.7 in (120 mm)
Seat Height
25.6 in (649 mm)
Weight (Empty Tank / Full of Fuel)
547 lbs (248 kg) / 567 lbs (257 kg)
Wheelbase
62 in (1,576 mm)
Brakes
Front Brakes
Single / 298 mm Rotor / 2 Piston Caliper
Rear Brakes
Single / 298 mm Rotor / 1 Piston Caliper
Tires / Wheels
Front Tires
Pirelli MT60RS 130/90B16 67H
Front Wheel
Black Wire 16 in x 3.5 in
Rear Tires
Pirelli MT60RS 150/80B16 77H
Rear Wheel
Black Wire 16 in x 3.5 in
Suspension
Front Fork Tube Diameter
41 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (120 mm)
Rear Suspension
Dual Shocks
Rear Travel
2.0 in (51 mm)
Features
Color / Graphics
Black Metallic, Black Metallic ABS, Silver Quartz Smoke ABS, Stealth Gray ABS, Spirit Blue Metallic ABS
Factory Warranty
2 Years, Unlimited Miles
Gauges
Digital tachometer, odometer, trip meter, engine temp, low fuel lamp
Infotainment
N/A
Lights
Headlight, tail/brake light, turn signals, license plate light, speedometer and indicator lights
Standard Equipment
Wire wheels
(1).png)
Springfield
Starting at $21,999 US MSRPPlus destination charge and set-up.Logistics surcharge of $900 will apply.Trim & Color options Maroon Metallic / Crimson Metallic
Engine & Drivetrain
Bore x Stroke
3.976 in x 4.449 in (101 mm x 113 mm)
Compression Ratio
9.5:1
Displacement
111 cu in (1,811 cc)
Drive/Driven Clutch
Wet, Multi-Plate, Assist
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 111
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
119 ft-lbs
Peak Torque RPM
3,000 rpm
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
5.5 gal (20.8 L)
Ground Clearance
5.6 in (142 mm)
GVWR
1385 lbs / 628 kg
Lean Angle
31°
Overall Height
56.6 in / 1439 in
Overall Length
101.7 in (2,583 mm)
Overall Width
42.5 in (1,080 mm)
Rake/Trail
25° / 5.2 in (133 mm)
Seat Height
26 in / 660 mm
Weight (Empty Tank / Full of Fuel)
797 lbs / 829 lbs (362 kg / 376 kg)
Wheelbase
67.0 in (1,701 mm)
Brakes
Front Brakes
Dual 300mm floating rotors with 4-piston calipers
Rear Brakes
Single / 300 mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Metzeler Cruisetec 130/80B17 65H
Front Wheel
Highlight Machine Tour 17 in x 3.5 in
Rear Tires
Metzeler Cruisetec 180/60R16 80H
Rear Wheel
Highlight Machine Tour 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork/4.7 in (119 mm)
Front Travel
4.7 in (119 mm)
Rear Suspension
Single Shock w/ Air adjust
Rear Travel
4.5 in (114 mm)
Features
Color/graphics
Maroon Metallic / Crimson Metallic, Black Metallic / Dirt Track Tan
Factory Warranty
2 Years, Unlimited Miles
Gauges
Tank-mounted electronic speedometer with odometer; dual tripmeters; digital tachometer; ambient air temperature; fuel range; average fuel economy; battery voltage; gear position display; real-time clock; vehicle trouble code readout; heated grip level (if heated grips installed); low engine oil pressure; and 9 LED telltale indicators: cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS, check engine, and MPH or km/h unit designation; tank-mounted electronic fuel gauge with low fuel LED indicator
Infotainment
N/A
Lights
Halogen Headlamp/Driving, LED Tail/Brake/Turn Signal
Standard Equipment
Quick Release Windshield; Genuine Leather Seat; Remote-Locking Hard Saddlebags, Highway Bars; Tire Pressure Monitoring; Light Bar; Selectable Ride Modes, ABS; Cruise Control; Keyless Ignition; Indian® Script Tank Badge; 12v Charging Port
.png)
Springfield
Starting at $21,999 US MSRPPlus destination charge and set-up.Logistics surcharge of $900 will apply.Trim & Color options Black Metallic / Dirt Track Tan
Engine & Drivetrain
Bore x Stroke
3.976 in x 4.449 in (101 mm x 113 mm)
Compression Ratio
9.5:1
Displacement
111 cu in (1,811 cc)
Drive/Driven Clutch
Wet, Multi-Plate, Assist
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 111
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
119 ft-lbs
Peak Torque RPM
3,000 rpm
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
5.5 gal (20.8 L)
Ground Clearance
5.6 in (142 mm)
GVWR
1385 lbs / 628 kg
Lean Angle
31°
Overall Height
56.6 in / 1439 in
Overall Length
101.7 in (2,583 mm)
Overall Width
42.5 in (1,080 mm)
Rake/Trail
25° / 5.2 in (133 mm)
Seat Height
26 in / 660 mm
Weight (Empty Tank / Full of Fuel)
797 lbs / 829 lbs (362 kg / 376 kg)
Wheelbase
67.0 in (1,701 mm)
Brakes
Front Brakes
Dual 300mm floating rotors with 4-piston calipers
Rear Brakes
Single / 300 mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Metzeler Cruisetec 130/80B17 65H
Front Wheel
Highlight Machine Tour 17 in x 3.5 in
Rear Tires
Metzeler Cruisetec 180/60R16 80H
Rear Wheel
Highlight Machine Tour 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork/4.7 in (119 mm)
Front Travel
4.7 in (119 mm)
Rear Suspension
Single Shock w/ Air adjust
Rear Travel
4.5 in (114 mm)
Features
Color/graphics
Maroon Metallic / Crimson Metallic, Black Metallic / Dirt Track Tan
Factory Warranty
2 Years, Unlimited Miles
Gauges
Tank-mounted electronic speedometer with odometer; dual tripmeters; digital tachometer; ambient air temperature; fuel range; average fuel economy; battery voltage; gear position display; real-time clock; vehicle trouble code readout; heated grip level (if heated grips installed); low engine oil pressure; and 9 LED telltale indicators: cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS, check engine, and MPH or km/h unit designation; tank-mounted electronic fuel gauge with low fuel LED indicator
Infotainment
N/A
Lights
Halogen Headlamp/Driving, LED Tail/Brake/Turn Signal
Standard Equipment
Quick Release Windshield; Genuine Leather Seat; Remote-Locking Hard Saddlebags, Highway Bars; Tire Pressure Monitoring; Light Bar; Selectable Ride Modes, ABS; Cruise Control; Keyless Ignition; Indian® Script Tank Badge; 12v Charging Port
.png)
Springfield Dark Horse
Starting at $22,499 US MSRPPlus destination charge and set-up.Logistics surcharge of $900 will apply.Trim & Color options Black Smoke
Engine & Drivetrain
Bore x Stroke
4.063" x 4.449" (103.2mm x113mm)
Compression Ratio
11:1
Displacement
116 cu in (1,890 cc)
Drive/Driven Clutch
Wet, Multi-Plate, Assist
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 116
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
126 ft-lbs
Peak Torque RPM
2,900 RPM
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
5.5 gal (20.8 L)
Ground Clearance
5.1 in (130 mm)
GVWR
1,385 lb (628 kg)
Lean Angle
31°
Overall Height
48.3 in / 1226 mm
Overall Length
99.3 in (2,522 mm)
Overall Width
38.3 in / 972 mm
Rake/Trail
25° / 5.2 in (133 mm)
Seat Height
25.6 in (650 mm)
Weight (Empty Tank / Full of Fuel)
758 lbs / 790 lbs (344 kg / 358 kg)
Wheelbase
67.0 in (1,701 mm)
Brakes
Front Brakes
Dual / 300 mm Floating Rotor / 4 Piston Caliper
Rear Brakes
Single / 300 mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Metzeler Cruisetec 130/60B19 66H
Front Wheel
10-Spoke Contrast Cut 19 in x 3.5 in
Rear Tires
Metzeler Cruisetec 180/60R16 80H
Rear Wheel
10-Spoke Contrast Cut 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (119 mm)
Rear Suspension
Single Shock w/ Air adjust
Rear Travel
4.5 in (114 mm)
Features
Color/graphics
Black Smoke, Quartz Gray
Factory Warranty
2 Years, Unlimited Miles
Gauges
Tank-mounted electronic speedometer with odometer; dual tripmeters; digital tachometer; ambient air temperature; fuel range; average fuel economy; battery voltage; gear position display; real-time clock; vehicle trouble code readout; heated grip level (if heated grips installed); low engine oil pressure; and 9 LED telltale indicators: cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS, check engine, and MPH or km/h unit designation; tank-mounted electronic fuel gauge with low fuel LED indicator
Infotainment
N/A
Lights
Halogen Headlamp/Driving, LED Tail/Brake/Turn Signal
Standard Equipment
Remote-Locking Hard Saddlebags, Vinyl Rogue Seat; Tire Pressure Monitoring; Light Bar; ABS, Selectable Ride Modes; Cruise Control; Keyless Ignition
.png)
Springfield Dark Horse
Starting at $22,999 US MSRPPlus destination charge and set-up.Logistics surcharge of $900 will apply.Trim & Color options Quartz Gray
Engine & Drivetrain
Bore x Stroke
4.063" x 4.449" (103.2mm x113mm)
Compression Ratio
11:1
Displacement
116 cu in (1,890 cc)
Drive/Driven Clutch
Wet, Multi-Plate, Assist
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 116
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
126 ft-lbs
Peak Torque RPM
2,900 RPM
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
5.5 gal (20.8 L)
Ground Clearance
5.1 in (130 mm)
GVWR
1,385 lb (628 kg)
Lean Angle
31°
Overall Height
48.3 in / 1226 mm
Overall Length
99.3 in (2,522 mm)
Overall Width
38.3 in / 972 mm
Rake/Trail
25° / 5.2 in (133 mm)
Seat Height
25.6 in (650 mm)
Weight (Empty Tank / Full of Fuel)
758 lbs / 790 lbs (344 kg / 358 kg)
Wheelbase
67.0 in (1,701 mm)
Brakes
Front Brakes
Dual / 300 mm Floating Rotor / 4 Piston Caliper
Rear Brakes
Single / 300 mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Metzeler Cruisetec 130/60B19 66H
Front Wheel
10-Spoke Contrast Cut 19 in x 3.5 in
Rear Tires
Metzeler Cruisetec 180/60R16 80H
Rear Wheel
10-Spoke Contrast Cut 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (119 mm)
Rear Suspension
Single Shock w/ Air adjust
Rear Travel
4.5 in (114 mm)
Features
Color/graphics
Black Smoke, Quartz Gray
Factory Warranty
2 Years, Unlimited Miles
Gauges
Tank-mounted electronic speedometer with odometer; dual tripmeters; digital tachometer; ambient air temperature; fuel range; average fuel economy; battery voltage; gear position display; real-time clock; vehicle trouble code readout; heated grip level (if heated grips installed); low engine oil pressure; and 9 LED telltale indicators: cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS, check engine, and MPH or km/h unit designation; tank-mounted electronic fuel gauge with low fuel LED indicator
Infotainment
N/A
Lights
Halogen Headlamp/Driving, LED Tail/Brake/Turn Signal
Standard Equipment
Remote-Locking Hard Saddlebags, Vinyl Rogue Seat; Tire Pressure Monitoring; Light Bar; ABS, Selectable Ride Modes; Cruise Control; Keyless Ignition
.png)
Challenger
Starting at $23,999 US MSRPPlus destination charge and set-up.Logistics surcharge of $900 will apply.Trim & Color options Black Metallic
Engine & Drivetrain
Bore x Stroke
4.251 in x 3.799 in (108 mm x 96.5 mm)
Compression Ratio
11.0:1
Displacement
108 cu in (1768 cc)
Drive/Driven Clutch
Wet, Multi-Plate, Assist
Electronic Fuel Injection System
Closed loop fuel Injection / 52mm dual bore
Engine Type
Liquid-cooled PowerPlus
Exhaust
Split Dual exhaust w/ Resonator
Gear Ratio (1st)
10.169:1
Gear Ratio (2nd)
6.933:1
Gear Ratio (3rd)
5.151:1
Gear Ratio (4th)
4.105:1
Gear Ratio (5th)
3.508:1
Gear Ratio (6th)
3.017:1
Horsepower
122 HP
Peak Torque
128 ft-lbs
Peak Torque RPM
3800 rpm
Transmission/Final Drive
2.379:1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
6.0 gal (22.7 L)
Ground Clearance
5.4 in (137.3 mm)
GVWR
1,385 lb (628 kg)
Lean Angle
31°
Overall Height
53 in (134.6 mm)
Overall Length
98.5 in (2500.7 mm)
Overall Width
39 in (990.2 mm)
Rake/Trail
25° / 5.9 in (150 mm)
Seat Height
26.5 in (672 mm)
Weight (Empty Tank / Full of Fuel)
796 lb (361 kg)/831 lb (377 kg)
Wheelbase
65.7 in (1667.8 mm)
Brakes
Front Brakes
Dual / 320mm Semi-Floating Rotor / 4 Piston Radial Caliper
Rear Brakes
Single / 298mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Metzeler Cruisetec 130/60B19 66H
Front Wheel
Sport Cast Black 19 in x 3.5 in
Rear Tires
Metzeler Cruisetec 180/60R16 80H
Rear Wheel
Sport Cast Black 16 in x 5 in
Suspension
Front Fork Tube Diameter
43 mm
Front Suspension
Inverted Telescopic Cartridge Fork
Front Travel
5.1 in (130 mm)
Rear Suspension
Fox Single Shock w/Hyd adjust
Rear Travel
4.5 in (114 mm)
Features
Color/graphics
Black Metallic, Titanium Smoke
Factory Warranty
2 Years, Unlimited Miles
Gauges
Fairing-mounted instrument cluster featuring analog speedometer and tachometer with fuel gauge, range, odometer and current gear. 15 LED telltale indicators; cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS, check engine, battery, low fuel, security system, low engine oil pressure and MPH or km/h unit designation.
Infotainment
7 in Touchscreen Display with real-time clock; ambient air temperature; heading; audio information display; 100 Watt Audio System with AM/FM, Bluetooth®, USB, Smartphone Compatible Input, and Weather-band
Lights
LED lighting including Pathfinder LED Headlamp
Standard Equipment
7 in touchescreen powered by RIDE COMMAND, Selectable Ride Modes, Locking Hard Saddlebags, Brembo brakes, 18+ Gallons of storage, ABS, Keyless Ignition, Chassis Mounted Fairing, Adjustable Fairing Air Flow Vents, Power Windshield, Adjustable Air Vents, 12V Charging Port
.png)
Challenger
Starting at $24,749 US MSRPPlus destination charge and set-up.Logistics surcharge of $900 will apply.Trim & Color options Titanium Smoke
Engine & Drivetrain
Bore x Stroke
4.251 in x 3.799 in (108 mm x 96.5 mm)
Compression Ratio
11.0:1
Displacement
108 cu in (1768 cc)
Drive/Driven Clutch
Wet, Multi-Plate, Assist
Electronic Fuel Injection System
Closed loop fuel Injection / 52mm dual bore
Engine Type
Liquid-cooled PowerPlus
Exhaust
Split Dual exhaust w/ Resonator
Gear Ratio (1st)
10.169:1
Gear Ratio (2nd)
6.933:1
Gear Ratio (3rd)
5.151:1
Gear Ratio (4th)
4.105:1
Gear Ratio (5th)
3.508:1
Gear Ratio (6th)
3.017:1
Horsepower
122 HP
Peak Torque
128 ft-lbs
Peak Torque RPM
3800 rpm
Transmission/Final Drive
2.379:1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
6.0 gal (22.7 L)
Ground Clearance
5.4 in (137.3 mm)
GVWR
1,385 lb (628 kg)
Lean Angle
31°
Overall Height
53 in (134.6 mm)
Overall Length
98.5 in (2500.7 mm)
Overall Width
39 in (990.2 mm)
Rake/Trail
25° / 5.9 in (150 mm)
Seat Height
26.5 in (672 mm)
Weight (Empty Tank / Full of Fuel)
796 lb (361 kg)/831 lb (377 kg)
Wheelbase
65.7 in (1667.8 mm)
Brakes
Front Brakes
Dual / 320mm Semi-Floating Rotor / 4 Piston Radial Caliper
Rear Brakes
Single / 298mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Metzeler Cruisetec 130/60B19 66H
Front Wheel
Sport Cast Black 19 in x 3.5 in
Rear Tires
Metzeler Cruisetec 180/60R16 80H
Rear Wheel
Sport Cast Black 16 in x 5 in
Suspension
Front Fork Tube Diameter
43 mm
Front Suspension
Inverted Telescopic Cartridge Fork
Front Travel
5.1 in (130 mm)
Rear Suspension
Fox Single Shock w/Hyd adjust
Rear Travel
4.5 in (114 mm)
Features
Color/graphics
Black Metallic, Titanium Smoke
Factory Warranty
2 Years, Unlimited Miles
Gauges
Fairing-mounted instrument cluster featuring analog speedometer and tachometer with fuel gauge, range, odometer and current gear. 15 LED telltale indicators; cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS, check engine, battery, low fuel, security system, low engine oil pressure and MPH or km/h unit designation.
Infotainment
7 in Touchscreen Display with real-time clock; ambient air temperature; heading; audio information display; 100 Watt Audio System with AM/FM, Bluetooth®, USB, Smartphone Compatible Input, and Weather-band
Lights
LED lighting including Pathfinder LED Headlamp
Standard Equipment
7 in touchescreen powered by RIDE COMMAND, Selectable Ride Modes, Locking Hard Saddlebags, Brembo brakes, 18+ Gallons of storage, ABS, Keyless Ignition, Chassis Mounted Fairing, Adjustable Fairing Air Flow Vents, Power Windshield, Adjustable Air Vents, 12V Charging Port
.png)
Challenger Limited
Starting at $27,999 US MSRPPlus destination charge and set-up.Logistics surcharge of $900 will apply.Trim & Color options Black Metallic
Engine & Drivetrain
Bore x Stroke
4.251 in x 3.799 in (108 mm x 96.5 mm)
Compression Ratio
11.0:1
Displacement
108 cu in (1768 cc)
Drive/Driven Clutch
Wet, Multi-Plate, Assist
Electronic Fuel Injection System
Closed loop fuel Injection / 52mm dual bore
Engine Type
Liquid-cooled PowerPlus
Exhaust
Split Dual exhaust w/ Resonator
Gear Ratio (1st)
10.169:1
Gear Ratio (2nd)
6.933:1
Gear Ratio (3rd)
5.151:1
Gear Ratio (4th)
4.105:1
Gear Ratio (5th)
3.508:1
Gear Ratio (6th)
3.017:1
Horsepower
122 HP
Peak Torque
128 ft-lbs
Peak Torque RPM
3800 rpm
Transmission/Final Drive
2.379:1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
6.0 gal (22.7 L)
Ground Clearance
5.4 in (137.3 mm)
GVWR
1,385 lb (628 kg)
Lean Angle
31°
Overall Height
53 in (134.6 mm)
Overall Length
98.5 in (2500.7 mm)
Overall Width
39 in (990.2 mm)
Rake/Trail
25° / 5.9 in (150 mm)
Seat Height
26.5 in (672 mm)
Weight (Empty Tank / Full of Fuel)
804 lbs (365 kg)/839 lbs (381 kg)
Wheelbase
65.7 in (1667.8 mm)
Brakes
Front Brakes
Dual / 320mm Semi-Floating Rotor / 4 Piston Radial Caliper
Rear Brakes
Single / 298mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Metzeler Cruisetec 130/60B19 66H
Front Wheel
Sport Contrast Cut with Indian Red Pin Stripe 19 in x 3.5 in
Rear Tires
Metzeler Cruisetec 180/60R16 80H
Rear Wheel
Sport Contrast Cut with Indian Red Pin Stripe 16 in x 5 in
Suspension
Front Fork Tube Diameter
43 mm
Front Suspension
Inverted Telescopic Fork
Front Travel
5.1 in (130 mm)
Rear Suspension
Fox Single Shock w/Hyd adjust
Rear Travel
4.5 in (114 mm)
Features
Color/graphics
Black Metallic, Maroon Metallic, Spirit Blue Metallic/Black Metallic
Factory Warranty
2 Years, Unlimited Miles
Gauges
Fairing-mounted instrument cluster featuring analog speedometer and tachometer with fuel gauge, range, odometer and current gear. 15 LED telltale indicators; cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS, check engine, low tire pressure, battery, low fuel, security system, low engine oil pressure and MPH or km/h unit designation.
Infotainment
7 in touchscreen powered by RIDE COMMAND: Model year 2022 bikes includes a complimentary 1-year trial for connected features from the vehicle sales date (after which, fees apply). 7 in touchscreen display with real-time clock; ambient air temperature; heading; audio information display; map/navigation with real-time traffic and weather; Bluetooth status for phone and headset; vehicle status (tire pressure, voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; vehicle trouble code readout; Apple CarPlay integration.
Lights
LED lighting including Pathfinder LED Headlamp
Standard Equipment
7 in touchscreen powered by RIDE COMMAND with Navigation and Apple CarPlay integration; Smart Lean Technology; Selectable Ride Modes: Locking Hard Saddlebags: Brembo brakes: 18+ Gallons of storage: ABS: Keyless Ignition: Chassis Mounted Fairing: Adjustable Fairing Air Flow Vents; Power Windshield: Adjustable Air Vents; 12V Charging Port
.png)
Challenger Limited
Starting at $28,749 US MSRPPlus destination charge and set-up.Logistics surcharge of $900 will apply.Trim & Color options Maroon Metallic
Engine & Drivetrain
Bore x Stroke
4.251 in x 3.799 in (108 mm x 96.5 mm)
Compression Ratio
11.0:1
Displacement
108 cu in (1768 cc)
Drive/Driven Clutch
Wet, Multi-Plate, Assist
Electronic Fuel Injection System
Closed loop fuel Injection / 52mm dual bore
Engine Type
Liquid-cooled PowerPlus
Exhaust
Split Dual exhaust w/ Resonator
Gear Ratio (1st)
10.169:1
Gear Ratio (2nd)
6.933:1
Gear Ratio (3rd)
5.151:1
Gear Ratio (4th)
4.105:1
Gear Ratio (5th)
3.508:1
Gear Ratio (6th)
3.017:1
Horsepower
122 HP
Peak Torque
128 ft-lbs
Peak Torque RPM
3800 rpm
Transmission/Final Drive
2.379:1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
6.0 gal (22.7 L)
Ground Clearance
5.4 in (137.3 mm)
GVWR
1,385 lb (628 kg)
Lean Angle
31°
Overall Height
53 in (134.6 mm)
Overall Length
98.5 in (2500.7 mm)
Overall Width
39 in (990.2 mm)
Rake/Trail
25° / 5.9 in (150 mm)
Seat Height
26.5 in (672 mm)
Weight (Empty Tank / Full of Fuel)
804 lbs (365 kg)/839 lbs (381 kg)
Wheelbase
65.7 in (1667.8 mm)
Brakes
Front Brakes
Dual / 320mm Semi-Floating Rotor / 4 Piston Radial Caliper
Rear Brakes
Single / 298mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Metzeler Cruisetec 130/60B19 66H
Front Wheel
Sport Contrast Cut with Indian Red Pin Stripe 19 in x 3.5 in
Rear Tires
Metzeler Cruisetec 180/60R16 80H
Rear Wheel
Sport Contrast Cut with Indian Red Pin Stripe 16 in x 5 in
Suspension
Front Fork Tube Diameter
43 mm
Front Suspension
Inverted Telescopic Fork
Front Travel
5.1 in (130 mm)
Rear Suspension
Fox Single Shock w/Hyd adjust
Rear Travel
4.5 in (114 mm)
Features
Color/graphics
Black Metallic, Maroon Metallic, Spirit Blue Metallic/Black Metallic
Factory Warranty
2 Years, Unlimited Miles
Gauges
Fairing-mounted instrument cluster featuring analog speedometer and tachometer with fuel gauge, range, odometer and current gear. 15 LED telltale indicators; cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS, check engine, low tire pressure, battery, low fuel, security system, low engine oil pressure and MPH or km/h unit designation.
Infotainment
7 in touchscreen powered by RIDE COMMAND: Model year 2022 bikes includes a complimentary 1-year trial for connected features from the vehicle sales date (after which, fees apply). 7 in touchscreen display with real-time clock; ambient air temperature; heading; audio information display; map/navigation with real-time traffic and weather; Bluetooth status for phone and headset; vehicle status (tire pressure, voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; vehicle trouble code readout; Apple CarPlay integration.
Lights
LED lighting including Pathfinder LED Headlamp
Standard Equipment
7 in touchscreen powered by RIDE COMMAND with Navigation and Apple CarPlay integration; Smart Lean Technology; Selectable Ride Modes: Locking Hard Saddlebags: Brembo brakes: 18+ Gallons of storage: ABS: Keyless Ignition: Chassis Mounted Fairing: Adjustable Fairing Air Flow Vents; Power Windshield: Adjustable Air Vents; 12V Charging Port
.png)
Challenger Limted
Starting at $29,499 US MSRPPlus destination charge and set-up.Logistics surcharge of $900 will apply.Trim & Color options Spirit Blue Metallic / Black Metallic
Engine & Drivetrain
Bore x Stroke
4.251 in x 3.799 in (108 mm x 96.5 mm)
Compression Ratio
11.0:1
Displacement
108 cu in (1768 cc)
Drive/Driven Clutch
Wet, Multi-Plate, Assist
Electronic Fuel Injection System
Closed loop fuel Injection / 52mm dual bore
Engine Type
Liquid-cooled PowerPlus
Exhaust
Split Dual exhaust w/ Resonator
Gear Ratio (1st)
10.169:1
Gear Ratio (2nd)
6.933:1
Gear Ratio (3rd)
5.151:1
Gear Ratio (4th)
4.105:1
Gear Ratio (5th)
3.508:1
Gear Ratio (6th)
3.017:1
Horsepower
122 HP
Peak Torque
128 ft-lbs
Peak Torque RPM
3800 rpm
Transmission/Final Drive
2.379:1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
6.0 gal (22.7 L)
Ground Clearance
5.4 in (137.3 mm)
GVWR
1,385 lb (628 kg)
Lean Angle
31°
Overall Height
53 in (134.6 mm)
Overall Length
98.5 in (2500.7 mm)
Overall Width
39 in (990.2 mm)
Rake/Trail
25° / 5.9 in (150 mm)
Seat Height
26.5 in (672 mm)
Weight (Empty Tank / Full of Fuel)
804 lbs (365 kg)/839 lbs (381 kg)
Wheelbase
65.7 in (1667.8 mm)
Brakes
Front Brakes
Dual / 320mm Semi-Floating Rotor / 4 Piston Radial Caliper
Rear Brakes
Single / 298mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Metzeler Cruisetec 130/60B19 66H
Front Wheel
Sport Contrast Cut with Indian Red Pin Stripe 19 in x 3.5 in
Rear Tires
Metzeler Cruisetec 180/60R16 80H
Rear Wheel
Sport Contrast Cut with Indian Red Pin Stripe 16 in x 5 in
Suspension
Front Fork Tube Diameter
43 mm
Front Suspension
Inverted Telescopic Fork
Front Travel
5.1 in (130 mm)
Rear Suspension
Fox Single Shock w/Hyd adjust
Rear Travel
4.5 in (114 mm)
Features
Color/graphics
Black Metallic, Maroon Metallic, Spirit Blue Metallic/Black Metallic
Factory Warranty
2 Years, Unlimited Miles
Gauges
Fairing-mounted instrument cluster featuring analog speedometer and tachometer with fuel gauge, range, odometer and current gear. 15 LED telltale indicators; cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS, check engine, low tire pressure, battery, low fuel, security system, low engine oil pressure and MPH or km/h unit designation.
Infotainment
7 in touchscreen powered by RIDE COMMAND: Model year 2022 bikes includes a complimentary 1-year trial for connected features from the vehicle sales date (after which, fees apply). 7 in touchscreen display with real-time clock; ambient air temperature; heading; audio information display; map/navigation with real-time traffic and weather; Bluetooth status for phone and headset; vehicle status (tire pressure, voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; vehicle trouble code readout; Apple CarPlay integration.
Lights
LED lighting including Pathfinder LED Headlamp
Standard Equipment
7 in touchscreen powered by RIDE COMMAND with Navigation and Apple CarPlay integration; Smart Lean Technology; Selectable Ride Modes: Locking Hard Saddlebags: Brembo brakes: 18+ Gallons of storage: ABS: Keyless Ignition: Chassis Mounted Fairing: Adjustable Fairing Air Flow Vents; Power Windshield: Adjustable Air Vents; 12V Charging Port
.png)
Challenger Dark Horse
Starting at $28,499 US MSRPPlus destination charge and set-up.Logistics surcharge of $900 will apply.Trim & Color options Black Smoke
Engine & Drivetrain
Bore x Stroke
4.251 in x 3.799 in (108 mm x 96.5 mm)
Compression Ratio
11.0:1
Displacement
108 cu in (1768 cc)
Drive/Driven Clutch
Wet, Multi-Plate, Assist
Electronic Fuel Injection System
Closed loop fuel Injection / 52mm dual bore
Engine Type
Liquid-cooled PowerPlus
Exhaust
Split Dual exhaust w/ Resonator
Gear Ratio (1st)
10.169:1
Gear Ratio (2nd)
6.933:1
Gear Ratio (3rd)
5.151:1
Gear Ratio (4th)
4.105:1
Gear Ratio (5th)
3.508:1
Gear Ratio (6th)
3.017:1
Horsepower
122 HP
Peak Torque
128 ft-lbs
Peak Torque RPM
3800 rpm
Transmission/Final Drive
2.379:1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
6.0 gal (22.7 L)
Ground Clearance
5.4 in (137.3 mm)
GVWR
1,385 lb (628 kg)
Lean Angle
31°
Overall Height
53 in (134.6 mm)
Overall Length
98.5 in (2500.7 mm)
Overall Width
39 in (990.2 mm)
Rake/Trail
25° / 5.9 in (150 mm)
Seat Height
26.5 in (672 mm)
Weight (Empty Tank / Full of Fuel)
796 lb (361 kg)/831 lb (377 kg)
Wheelbase
65.7 in (1667.8 mm)
Brakes
Front Brakes
Dual / 320mm Semi-Floating Rotor / 4 Piston Radial Caliper
Rear Brakes
Single / 298mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Metzeler Cruisetec 130/60B19 66H
Front Wheel
Sport Contrast Cut with Indian Red Pin Stripe 19 in x 3.5 in
Rear Tires
Metzeler Cruisetec 180/60R16 80H
Rear Wheel
Sport Contrast Cut with Indian Red Pin Stripe 16 in x 5 in
Suspension
Front Fork Tube Diameter
43 mm
Front Suspension
Inverted Telescopic Fork
Front Travel
5.1 in (130 mm)
Rear Suspension
Single Shock w/Hyd adjust
Rear Travel
4.5 in (114 mm)
Features
Color/graphics
Black Smoke, Bronze Smoke, Indy Red/Black Metallic Icon - Stealth Gray Azure Crystal, Riot Orange Smoke, Storm Blue/Black Metallic
Factory Warranty
2 Years, Unlimited Miles
Gauges
Fairing-mounted instrument cluster featuring analog speedometer and tachometer with fuel gauge, range, odometer and current gear. 15 LED telltale indicators; cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS, check engine, low tire pressure, battery, low fuel, security system, low engine oil pressure and MPH or km/h unit designation.
Infotainment
7 in touchscreen powered by RIDE COMMAND: Model year 2022 bikes includes a complimentary 1-year trial for connected features from the vehicle sales date (after which, fees apply). 7 in touchscreen display with real-time clock; ambient air temperature; heading; audio information display; map/navigation with real-time traffic and weather; Bluetooth status for phone and headset; vehicle status (tire pressure, voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; vehicle trouble code readout; Apple CarPlay integration.
Lights
LED lighting including Pathfinder LED Headlamp
Standard Equipment
7 in touchscreen powered by RIDE COMMAND with Navigation and Apple CarPlay integration; Smart Lean Technology; Selectable Ride Modes: Locking Hard Saddlebags: Brembo brakes: 18+ Gallons of storage: ABS: Keyless Ignition: Chassis Mounted Fairing: Adjustable Fairing Air Flow Vents; Power Windshield: Adjustable Air Vents; 12V Charging Port
.png)
Challenger Dark Horse
Starting at $29,249 US MSRPPlus destination charge and set-up.Logistics surcharge of $900 will apply.Trim & Color options Bronze Smoke
Engine & Drivetrain
Bore x Stroke
4.251 in x 3.799 in (108 mm x 96.5 mm)
Compression Ratio
11.0:1
Displacement
108 cu in (1768 cc)
Drive/Driven Clutch
Wet, Multi-Plate, Assist
Electronic Fuel Injection System
Closed loop fuel Injection / 52mm dual bore
Engine Type
Liquid-cooled PowerPlus
Exhaust
Split Dual exhaust w/ Resonator
Gear Ratio (1st)
10.169:1
Gear Ratio (2nd)
6.933:1
Gear Ratio (3rd)
5.151:1
Gear Ratio (4th)
4.105:1
Gear Ratio (5th)
3.508:1
Gear Ratio (6th)
3.017:1
Horsepower
122 HP
Peak Torque
128 ft-lbs
Peak Torque RPM
3800 rpm
Transmission/Final Drive
2.379:1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
6.0 gal (22.7 L)
Ground Clearance
5.4 in (137.3 mm)
GVWR
1,385 lb (628 kg)
Lean Angle
31°
Overall Height
53 in (134.6 mm)
Overall Length
98.5 in (2500.7 mm)
Overall Width
39 in (990.2 mm)
Rake/Trail
25° / 5.9 in (150 mm)
Seat Height
26.5 in (672 mm)
Weight (Empty Tank / Full of Fuel)
796 lb (361 kg)/831 lb (377 kg)
Wheelbase
65.7 in (1667.8 mm)
Brakes
Front Brakes
Dual / 320mm Semi-Floating Rotor / 4 Piston Radial Caliper
Rear Brakes
Single / 298mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Metzeler Cruisetec 130/60B19 66H
Front Wheel
Sport Contrast Cut with Indian Red Pin Stripe 19 in x 3.5 in
Rear Tires
Metzeler Cruisetec 180/60R16 80H
Rear Wheel
Sport Contrast Cut with Indian Red Pin Stripe 16 in x 5 in
Suspension
Front Fork Tube Diameter
43 mm
Front Suspension
Inverted Telescopic Fork
Front Travel
5.1 in (130 mm)
Rear Suspension
Single Shock w/Hyd adjust
Rear Travel
4.5 in (114 mm)
Features
Color/graphics
Black Smoke, Bronze Smoke, Indy Red/Black Metallic Icon - Stealth Gray Azure Crystal, Riot Orange Smoke, Storm Blue/Black Metallic
Factory Warranty
2 Years, Unlimited Miles
Gauges
Fairing-mounted instrument cluster featuring analog speedometer and tachometer with fuel gauge, range, odometer and current gear. 15 LED telltale indicators; cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS, check engine, low tire pressure, battery, low fuel, security system, low engine oil pressure and MPH or km/h unit designation.
Infotainment
7 in touchscreen powered by RIDE COMMAND: Model year 2022 bikes includes a complimentary 1-year trial for connected features from the vehicle sales date (after which, fees apply). 7 in touchscreen display with real-time clock; ambient air temperature; heading; audio information display; map/navigation with real-time traffic and weather; Bluetooth status for phone and headset; vehicle status (tire pressure, voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; vehicle trouble code readout; Apple CarPlay integration.
Lights
LED lighting including Pathfinder LED Headlamp
Standard Equipment
7 in touchscreen powered by RIDE COMMAND with Navigation and Apple CarPlay integration; Smart Lean Technology; Selectable Ride Modes: Locking Hard Saddlebags: Brembo brakes: 18+ Gallons of storage: ABS: Keyless Ignition: Chassis Mounted Fairing: Adjustable Fairing Air Flow Vents; Power Windshield: Adjustable Air Vents; 12V Charging Port
.png)
Challenger Dark Horse
Starting at $29,999 US MSRPPlus destination charge and set-up.Logistics surcharge of $900 will apply.Trim & Color options Indy Red / Black Metallic
Engine & Drivetrain
Bore x Stroke
4.251 in x 3.799 in (108 mm x 96.5 mm)
Compression Ratio
11.0:1
Displacement
108 cu in (1768 cc)
Drive/Driven Clutch
Wet, Multi-Plate, Assist
Electronic Fuel Injection System
Closed loop fuel Injection / 52mm dual bore
Engine Type
Liquid-cooled PowerPlus
Exhaust
Split Dual exhaust w/ Resonator
Gear Ratio (1st)
10.169:1
Gear Ratio (2nd)
6.933:1
Gear Ratio (3rd)
5.151:1
Gear Ratio (4th)
4.105:1
Gear Ratio (5th)
3.508:1
Gear Ratio (6th)
3.017:1
Horsepower
122 HP
Peak Torque
128 ft-lbs
Peak Torque RPM
3800 rpm
Transmission/Final Drive
2.379:1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
6.0 gal (22.7 L)
Ground Clearance
5.4 in (137.3 mm)
GVWR
1,385 lb (628 kg)
Lean Angle
31°
Overall Height
53 in (134.6 mm)
Overall Length
98.5 in (2500.7 mm)
Overall Width
39 in (990.2 mm)
Rake/Trail
25° / 5.9 in (150 mm)
Seat Height
26.5 in (672 mm)
Weight (Empty Tank / Full of Fuel)
796 lb (361 kg)/831 lb (377 kg)
Wheelbase
65.7 in (1667.8 mm)
Brakes
Front Brakes
Dual / 320mm Semi-Floating Rotor / 4 Piston Radial Caliper
Rear Brakes
Single / 298mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Metzeler Cruisetec 130/60B19 66H
Front Wheel
Sport Contrast Cut with Indian Red Pin Stripe 19 in x 3.5 in
Rear Tires
Metzeler Cruisetec 180/60R16 80H
Rear Wheel
Sport Contrast Cut with Indian Red Pin Stripe 16 in x 5 in
Suspension
Front Fork Tube Diameter
43 mm
Front Suspension
Inverted Telescopic Fork
Front Travel
5.1 in (130 mm)
Rear Suspension
Single Shock w/Hyd adjust
Rear Travel
4.5 in (114 mm)
Features
Color/graphics
Black Smoke, Bronze Smoke, Indy Red/Black Metallic Icon - Stealth Gray Azure Crystal, Riot Orange Smoke, Storm Blue/Black Metallic
Factory Warranty
2 Years, Unlimited Miles
Gauges
Fairing-mounted instrument cluster featuring analog speedometer and tachometer with fuel gauge, range, odometer and current gear. 15 LED telltale indicators; cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS, check engine, low tire pressure, battery, low fuel, security system, low engine oil pressure and MPH or km/h unit designation.
Infotainment
7 in touchscreen powered by RIDE COMMAND: Model year 2022 bikes includes a complimentary 1-year trial for connected features from the vehicle sales date (after which, fees apply). 7 in touchscreen display with real-time clock; ambient air temperature; heading; audio information display; map/navigation with real-time traffic and weather; Bluetooth status for phone and headset; vehicle status (tire pressure, voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; vehicle trouble code readout; Apple CarPlay integration.
Lights
LED lighting including Pathfinder LED Headlamp
Standard Equipment
7 in touchscreen powered by RIDE COMMAND with Navigation and Apple CarPlay integration; Smart Lean Technology; Selectable Ride Modes: Locking Hard Saddlebags: Brembo brakes: 18+ Gallons of storage: ABS: Keyless Ignition: Chassis Mounted Fairing: Adjustable Fairing Air Flow Vents; Power Windshield: Adjustable Air Vents; 12V Charging Port
.png)
Challenger Dark Horse Icon
Starting at $30,249 US MSRPPlus destination charge and set-up.Logistics surcharge of $900 will apply.Trim & Color options Stealth Gray Azure Crystal
Engine & Drivetrain
Bore x Stroke
4.251 in x 3.799 in (108 mm x 96.5 mm)
Compression Ratio
11.0:1
Displacement
108 cu in (1768 cc)
Drive/Driven Clutch
Wet, Multi-Plate, Assist
Electronic Fuel Injection System
Closed loop fuel Injection / 52mm dual bore
Engine Type
Liquid-cooled PowerPlus
Exhaust
Split Dual exhaust w/ Resonator
Gear Ratio (1st)
10.169:1
Gear Ratio (2nd)
6.933:1
Gear Ratio (3rd)
5.151:1
Gear Ratio (4th)
4.105:1
Gear Ratio (5th)
3.508:1
Gear Ratio (6th)
3.017:1
Horsepower
122 HP
Peak Torque
128 ft-lbs
Peak Torque RPM
3800 rpm
Transmission/Final Drive
2.379:1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
6.0 gal (22.7 L)
Ground Clearance
5.4 in (137.3 mm)
GVWR
1,385 lb (628 kg)
Lean Angle
31°
Overall Height
53 in (134.6 mm)
Overall Length
98.5 in (2500.7 mm)
Overall Width
39 in (990.2 mm)
Rake/Trail
25° / 5.9 in (150 mm)
Seat Height
26.5 in (672 mm)
Weight (Empty Tank / Full of Fuel)
796 lb (361 kg)/831 lb (377 kg)
Wheelbase
65.7 in (1667.8 mm)
Brakes
Front Brakes
Dual / 320mm Semi-Floating Rotor / 4 Piston Radial Caliper
Rear Brakes
Single / 298mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Metzeler Cruisetec 130/60B19 66H
Front Wheel
Sport Contrast Cut with Indian Red Pin Stripe 19 in x 3.5 in
Rear Tires
Metzeler Cruisetec 180/60R16 80H
Rear Wheel
Sport Contrast Cut with Indian Red Pin Stripe 16 in x 5 in
Suspension
Front Fork Tube Diameter
43 mm
Front Suspension
Inverted Telescopic Fork
Front Travel
5.1 in (130 mm)
Rear Suspension
Single Shock w/Hyd adjust
Rear Travel
4.5 in (114 mm)
Features
Color/graphics
Black Smoke, Bronze Smoke, Indy Red/Black Metallic Icon - Stealth Gray Azure Crystal, Riot Orange Smoke, Storm Blue/Black Metallic
Factory Warranty
2 Years, Unlimited Miles
Gauges
Fairing-mounted instrument cluster featuring analog speedometer and tachometer with fuel gauge, range, odometer and current gear. 15 LED telltale indicators; cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS, check engine, low tire pressure, battery, low fuel, security system, low engine oil pressure and MPH or km/h unit designation.
Infotainment
7 in touchscreen powered by RIDE COMMAND: Model year 2022 bikes includes a complimentary 1-year trial for connected features from the vehicle sales date (after which, fees apply). 7 in touchscreen display with real-time clock; ambient air temperature; heading; audio information display; map/navigation with real-time traffic and weather; Bluetooth status for phone and headset; vehicle status (tire pressure, voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; vehicle trouble code readout; Apple CarPlay integration.
Lights
LED lighting including Pathfinder LED Headlamp
Standard Equipment
7 in touchscreen powered by RIDE COMMAND with Navigation and Apple CarPlay integration; Smart Lean Technology; Selectable Ride Modes: Locking Hard Saddlebags: Brembo brakes: 18+ Gallons of storage: ABS: Keyless Ignition: Chassis Mounted Fairing: Adjustable Fairing Air Flow Vents; Power Windshield: Adjustable Air Vents; 12V Charging Port
.png)
Challenger Dark Horse Icon
Starting at $30,249 US MSRPPlus destination charge and set-up.Logistics surcharge of $900 will apply.Trim & Color options Riot Orange Smoke
Engine & Drivetrain
Bore x Stroke
4.251 in x 3.799 in (108 mm x 96.5 mm)
Compression Ratio
11.0:1
Displacement
108 cu in (1768 cc)
Drive/Driven Clutch
Wet, Multi-Plate, Assist
Electronic Fuel Injection System
Closed loop fuel Injection / 52mm dual bore
Engine Type
Liquid-cooled PowerPlus
Exhaust
Split Dual exhaust w/ Resonator
Gear Ratio (1st)
10.169:1
Gear Ratio (2nd)
6.933:1
Gear Ratio (3rd)
5.151:1
Gear Ratio (4th)
4.105:1
Gear Ratio (5th)
3.508:1
Gear Ratio (6th)
3.017:1
Horsepower
122 HP
Peak Torque
128 ft-lbs
Peak Torque RPM
3800 rpm
Transmission/Final Drive
2.379:1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
6.0 gal (22.7 L)
Ground Clearance
5.4 in (137.3 mm)
GVWR
1,385 lb (628 kg)
Lean Angle
31°
Overall Height
53 in (134.6 mm)
Overall Length
98.5 in (2500.7 mm)
Overall Width
39 in (990.2 mm)
Rake/Trail
25° / 5.9 in (150 mm)
Seat Height
26.5 in (672 mm)
Weight (Empty Tank / Full of Fuel)
796 lb (361 kg)/831 lb (377 kg)
Wheelbase
65.7 in (1667.8 mm)
Brakes
Front Brakes
Dual / 320mm Semi-Floating Rotor / 4 Piston Radial Caliper
Rear Brakes
Single / 298mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Metzeler Cruisetec 130/60B19 66H
Front Wheel
Sport Contrast Cut with Indian Red Pin Stripe 19 in x 3.5 in
Rear Tires
Metzeler Cruisetec 180/60R16 80H
Rear Wheel
Sport Contrast Cut with Indian Red Pin Stripe 16 in x 5 in
Suspension
Front Fork Tube Diameter
43 mm
Front Suspension
Inverted Telescopic Fork
Front Travel
5.1 in (130 mm)
Rear Suspension
Single Shock w/Hyd adjust
Rear Travel
4.5 in (114 mm)
Features
Color/graphics
Black Smoke, Bronze Smoke, Indy Red/Black Metallic Icon - Stealth Gray Azure Crystal, Riot Orange Smoke, Storm Blue/Black Metallic
Factory Warranty
2 Years, Unlimited Miles
Gauges
Fairing-mounted instrument cluster featuring analog speedometer and tachometer with fuel gauge, range, odometer and current gear. 15 LED telltale indicators; cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS, check engine, low tire pressure, battery, low fuel, security system, low engine oil pressure and MPH or km/h unit designation.
Infotainment
7 in touchscreen powered by RIDE COMMAND: Model year 2022 bikes includes a complimentary 1-year trial for connected features from the vehicle sales date (after which, fees apply). 7 in touchscreen display with real-time clock; ambient air temperature; heading; audio information display; map/navigation with real-time traffic and weather; Bluetooth status for phone and headset; vehicle status (tire pressure, voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; vehicle trouble code readout; Apple CarPlay integration.
Lights
LED lighting including Pathfinder LED Headlamp
Standard Equipment
7 in touchscreen powered by RIDE COMMAND with Navigation and Apple CarPlay integration; Smart Lean Technology; Selectable Ride Modes: Locking Hard Saddlebags: Brembo brakes: 18+ Gallons of storage: ABS: Keyless Ignition: Chassis Mounted Fairing: Adjustable Fairing Air Flow Vents; Power Windshield: Adjustable Air Vents; 12V Charging Port
.png)
Challenger Dark Horse Icon
Indian Challenger Dark HorseStarting at $30,999 US MSRPPlus destination charge and set-up.Logistics surcharge of $900 will apply.Trim & Color options Storm Blue / Black Metallic
Engine & Drivetrain
Bore x Stroke
4.251 in x 3.799 in (108 mm x 96.5 mm)
Compression Ratio
11.0:1
Displacement
108 cu in (1768 cc)
Drive/Driven Clutch
Wet, Multi-Plate, Assist
Electronic Fuel Injection System
Closed loop fuel Injection / 52mm dual bore
Engine Type
Liquid-cooled PowerPlus
Exhaust
Split Dual exhaust w/ Resonator
Gear Ratio (1st)
10.169:1
Gear Ratio (2nd)
6.933:1
Gear Ratio (3rd)
5.151:1
Gear Ratio (4th)
4.105:1
Gear Ratio (5th)
3.508:1
Gear Ratio (6th)
3.017:1
Horsepower
122 HP
Peak Torque
128 ft-lbs
Peak Torque RPM
3800 rpm
Transmission/Final Drive
2.379:1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
6.0 gal (22.7 L)
Ground Clearance
5.4 in (137.3 mm)
GVWR
1,385 lb (628 kg)
Lean Angle
31°
Overall Height
53 in (134.6 mm)
Overall Length
98.5 in (2500.7 mm)
Overall Width
39 in (990.2 mm)
Rake/Trail
25° / 5.9 in (150 mm)
Seat Height
26.5 in (672 mm)
Weight (Empty Tank / Full of Fuel)
796 lb (361 kg)/831 lb (377 kg)
Wheelbase
65.7 in (1667.8 mm)
Brakes
Front Brakes
Dual / 320mm Semi-Floating Rotor / 4 Piston Radial Caliper
Rear Brakes
Single / 298mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Metzeler Cruisetec 130/60B19 66H
Front Wheel
Sport Contrast Cut with Indian Red Pin Stripe 19 in x 3.5 in
Rear Tires
Metzeler Cruisetec 180/60R16 80H
Rear Wheel
Sport Contrast Cut with Indian Red Pin Stripe 16 in x 5 in
Suspension
Front Fork Tube Diameter
43 mm
Front Suspension
Inverted Telescopic Fork
Front Travel
5.1 in (130 mm)
Rear Suspension
Single Shock w/Hyd adjust
Rear Travel
4.5 in (114 mm)
Features
Color/graphics
Black Smoke, Bronze Smoke, Indy Red/Black Metallic Icon - Stealth Gray Azure Crystal, Riot Orange Smoke, Storm Blue/Black Metallic
Factory Warranty
2 Years, Unlimited Miles
Gauges
Fairing-mounted instrument cluster featuring analog speedometer and tachometer with fuel gauge, range, odometer and current gear. 15 LED telltale indicators; cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS, check engine, low tire pressure, battery, low fuel, security system, low engine oil pressure and MPH or km/h unit designation.
Infotainment
7 in touchscreen powered by RIDE COMMAND: Model year 2022 bikes includes a complimentary 1-year trial for connected features from the vehicle sales date (after which, fees apply). 7 in touchscreen display with real-time clock; ambient air temperature; heading; audio information display; map/navigation with real-time traffic and weather; Bluetooth status for phone and headset; vehicle status (tire pressure, voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; vehicle trouble code readout; Apple CarPlay integration.
Lights
LED lighting including Pathfinder LED Headlamp
Standard Equipment
7 in touchscreen powered by RIDE COMMAND with Navigation and Apple CarPlay integration; Smart Lean Technology; Selectable Ride Modes: Locking Hard Saddlebags: Brembo brakes: 18+ Gallons of storage: ABS: Keyless Ignition: Chassis Mounted Fairing: Adjustable Fairing Air Flow Vents; Power Windshield: Adjustable Air Vents; 12V Charging Port
.png)
Chieftain
Starting at $21,999 US MSRPPlus destination charge and set-up.Logistics surcharge of $900 will apply.Trim & Color options Black Metallic
Engine & Drivetrain
Bore x Stroke
3.976 in x 4.449 in (101 mm x 113 mm)
Compression Ratio
9.5:1
Displacement
111 cu in (1,811 cc)
Drive/Driven Clutch
Wet, Multi-Plate, Assist
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 111
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
119 ft-lbs
Peak Torque RPM
3,000 rpm
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
5.5 gal (20.8 L)
Ground Clearance
5.1 in (130 mm)
GVWR
1,385 lb (628 kg)
Lean Angle
31°
Overall Height
51.6 in / 1310 mm
Overall Length
98.7 in (2,506 mm)
Overall Width
40.3 in / 1023 mm
Rake/Trail
25° / 5.9 in (150 mm)
Seat Height
25.6 in (650 mm)
Weight (Empty Tank / Full of Fuel)
791 lb (359 kg) / 823 lb (373 kg)
Wheelbase
65.7 in (1668 mm)
Brakes
Front Brakes
Dual / 300 mm Floating Rotor / 4 Piston Caliper
Rear Brakes
Single / 300 mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Metzeler Cruisetec 130/60B19 66H
Front Wheel
10-Spoke Contrast Cut 19 in x 3.5 in
Rear Tires
Metzeler Cruisetec 180/60R16 80H
Rear Wheel
10-Spoke Contrast Cut 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (119 mm)
Rear Suspension
Single Shock w/ Air adjust
Rear Travel
4.5 in (114 mm)
Features
Color/graphics
Black Metallic
Factory Warranty
2 Years, Unlimited Miles
Gauges
Fairing-mounted instrument cluster featuring analog speedometer and tachometer with fuel gauge, range, odometer and current gear.
Infotainment
7 in touchscreen powered by RIDE COMMAND with real-time clock; ambient air temperature; heading; audio information display; vehicle trouble code readout; Vehicle Status (voltage, engine hours, oil change); Vehicle Info (speed, fuel range, RPM, gear position); Dual Trip Meters (fuel range, miles, average fuel economy, instantaneous fuel economy time, average speed); Ride Data (heading, moving time, stop time, altitude, altitude change); Bluetooth Status for phone and headset; Ride Mode Selection.
Lights
Halogen Headlamp, LED Tail/Brake/Turn Signal
Standard Equipment
7 in touchscreen powered by RIDE COMMAND; Power Windshield; Vinyl Rogue Seat; Selectable Ride Modes; Rear Cylinder Deactivation; ABS; Cruise Control; Keyless Ignition; 100 Watt Audio System with AM/FM, Bluetooth, USB, Smartphone Compatible Input, and Weatherband; 12V Charging Port
.png)
Chieftain Limited
Starting at $28,749 US MSRPPlus destination charge and set-up.Logistics surcharge of $900 will apply.Trim & Color options Silver Quartz Metallic
Engine & Drivetrain
Bore x Stroke
4.063" x 4.449" (103.2mm x113mm)
Compression Ratio
11:1
Displacement
116 cu in (1,890 cc)
Drive/Driven Clutch
Wet, Multi-Plate, Assist
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 116
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
126 ft-lbs
Peak Torque RPM
2,900 RPM
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
5.5 gal (20.8 L)
Ground Clearance
5.1 in (130 mm)
GVWR
1,385 lb (628 kg)
Lean Angle
31°
Overall Height
51.6 in / 1310 mm
Overall Length
98.7 in (2,506 mm)
Overall Width
40.3 in / 1023 mm
Rake/Trail
25° / 5.9 in (150 mm)
Seat Height
25.6 in (650 mm)
Weight (Empty Tank / Full of Fuel)
791 lb (359 kg) / 823 lb (373 kg)
Wheelbase
65.7 in (1668 mm)
Brakes
Front Brakes
Dual / 300 mm Floating Rotor / 4 Piston Caliper
Rear Brakes
Single / 300 mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Metzeler Cruisetec 130/60B19 66H
Front Wheel
10-Spoke Contrast Cut 19 in x 3.5 in
Rear Tires
Metzeler Cruisetec 180/60R16 80H
Rear Wheel
10-Spoke Contrast Cut 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (119 mm)
Rear Suspension
Single Shock w/ Air adjust
Rear Travel
4.5 in (114 mm)
Features
Color/graphics
Silver Quartz Metallic, Deepwater Metallic
Factory Warranty
2 Years, Unlimited Miles
Gauges
Fairing-mounted instrument cluster featuring analog speedometer and tachometer with fuel gauge, range, odometer and current gear.
Infotainment
7 in touchscreen powered by RIDE COMMAND: Model year 2022 bikes includes a complimentary 1-year trial for connected features from the vehicle sales date (after which, fees apply). 7 in touchscreen display with real-time clock; ambient air temperature; heading; audio information display; map/navigation with real-time traffic and weather; Bluetooth status for phone and headset; vehicle status (tire pressure, voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; vehicle trouble code readout; Apple CarPlay integration.
Lights
LED Headlamp/Tail/Brake/Turn Signal
Standard Equipment
7 in touchscreen powered by RIDE COMMAND with Navigation and Apple CarPlay integration; Power Windshield; Highway Bars; Vinyl Rogue Seat; Tire Pressure Monitoring; Remote-locking Hard Saddlebags; Selectable Ride Modes; Rear Cylinder Deactivation; ABS; Cruise Control; Keyless Ignition; 100 Watt Audio System with AM/FM, Bluetooth, USB, Smartphone Compatible Input, and Weatherband; 12V Charging Port
.png)
Chieftain Limited
Starting at $28,749 US MSRPPlus destination charge and set-up.Logistics surcharge of $900 will apply.Trim & Color options Deepwater Metallic
Engine & Drivetrain
Bore x Stroke
4.063" x 4.449" (103.2mm x113mm)
Compression Ratio
11:1
Displacement
116 cu in (1,890 cc)
Drive/Driven Clutch
Wet, Multi-Plate, Assist
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 116
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
126 ft-lbs
Peak Torque RPM
2,900 RPM
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
5.5 gal (20.8 L)
Ground Clearance
5.1 in (130 mm)
GVWR
1,385 lb (628 kg)
Lean Angle
31°
Overall Height
51.6 in / 1310 mm
Overall Length
98.7 in (2,506 mm)
Overall Width
40.3 in / 1023 mm
Rake/Trail
25° / 5.9 in (150 mm)
Seat Height
25.6 in (650 mm)
Weight (Empty Tank / Full of Fuel)
791 lb (359 kg) / 823 lb (373 kg)
Wheelbase
65.7 in (1668 mm)
Brakes
Front Brakes
Dual / 300 mm Floating Rotor / 4 Piston Caliper
Rear Brakes
Single / 300 mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Metzeler Cruisetec 130/60B19 66H
Front Wheel
10-Spoke Contrast Cut 19 in x 3.5 in
Rear Tires
Metzeler Cruisetec 180/60R16 80H
Rear Wheel
10-Spoke Contrast Cut 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (119 mm)
Rear Suspension
Single Shock w/ Air adjust
Rear Travel
4.5 in (114 mm)
Features
Color/graphics
Silver Quartz Metallic, Deepwater Metallic
Factory Warranty
2 Years, Unlimited Miles
Gauges
Fairing-mounted instrument cluster featuring analog speedometer and tachometer with fuel gauge, range, odometer and current gear.
Infotainment
7 in touchscreen powered by RIDE COMMAND: Model year 2022 bikes includes a complimentary 1-year trial for connected features from the vehicle sales date (after which, fees apply). 7 in touchscreen display with real-time clock; ambient air temperature; heading; audio information display; map/navigation with real-time traffic and weather; Bluetooth status for phone and headset; vehicle status (tire pressure, voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; vehicle trouble code readout; Apple CarPlay integration.
Lights
LED Headlamp/Tail/Brake/Turn Signal
Standard Equipment
7 in touchscreen powered by RIDE COMMAND with Navigation and Apple CarPlay integration; Power Windshield; Highway Bars; Vinyl Rogue Seat; Tire Pressure Monitoring; Remote-locking Hard Saddlebags; Selectable Ride Modes; Rear Cylinder Deactivation; ABS; Cruise Control; Keyless Ignition; 100 Watt Audio System with AM/FM, Bluetooth, USB, Smartphone Compatible Input, and Weatherband; 12V Charging Port
.png)
Challenger Dark Horse
Starting at $27,999 US MSRPPlus destination charge and set-up.Logistics surcharge of $900 will apply.Trim & Color options Black Smoke
Engine & Drivetrain
Bore x Stroke
4.063" x 4.449" (103.2mm x113mm)
Compression Ratio
11:1
Displacement
116 cu in (1,890 cc)
Drive/Driven Clutch
Wet, Multi-Plate, Assist
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 116
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
126 ft-lbs (171 Nm)
Peak Torque RPM
2,900 RPM
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
5.5 gal (20.8 L)
Ground Clearance
5.1 in (130 mm)
GVWR
1,385 lb (628 kg)
Lean Angle
31°
Overall Height
51.6 in / 1310 mm
Overall Length
98.7 in (2,506 mm)
Overall Width
40.3 in / 1023 mm
Rake/Trail
25° / 5.9 in (150 mm)
Seat Height
25.6 in (650 mm)
Weight (Empty Tank / Full of Fuel)
791 lb (359 kg) / 823 lb (373 kg)
Wheelbase
65.7 in (1668 mm)
Brakes
Front Brakes
Dual 300mm floating rotors with 4-piston calipers
Rear Brakes
Single / 300 mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Metzeler Cruisetec 130/60B19 66H
Front Wheel
10-Spoke Contrast Cut 19 in x 3.5 in
Rear Tires
Metzeler Cruisetec 180/60R16 80H
Rear Wheel
10-Spoke Contrast Cut 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (119 mm)
Rear Suspension
Single Shock w/ Air adjust
Rear Travel
4.5 in (114 mm)
Features
Color/graphics
Black Smoke, Quartz Gray, Ruby Smoke Icon Colors: Dirt Track Smoke, Stealth Gray Azure w/gfx, Blue Slate Metallic
Factory Warranty
2 Years, Unlimited Miles
Gauges
Fairing-mounted instrument cluster featuring analog speedometer and tachometer with fuel gauge, range, odometer and current gear.
Infotainment
7 in touchscreen powered by RIDE COMMAND: Model year 2022 bikes includes a complimentary 1-year trial for connected features from the vehicle sales date (after which, fees apply). 7 in touchscreen display with real-time clock; ambient air temperature; heading; audio information display; map/navigation with real-time traffic and weather; Bluetooth status for phone and headset; vehicle status (tire pressure, voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; vehicle trouble code readout; Apple CarPlay integration.
Lights
LED Headlamp/Tail/Brake/Turn Signal
Standard Equipment
7 in Touchscreen powered by RIDE COMMAND with Navigation and Apple CarPlay integration; Power Windshield; Highway Bars; Vinyl Rogue Seat; Tire Pressure Monitoring; Remote-locking Hard Saddlebags; Selectable Ride Modes; Rear Cylinder Deactivation; ABS; Cruise Control; Keyless Ignition; 100 Watt Audio System with AM/FM, Bluetooth, USB, Smartphone Compatible Input, and Weatherband; 12V Charging Port
.png)
Chieftain Dark Horse
Starting at $28,749 US MSRPPlus destination charge and set-up.Logistics surcharge of $900 will apply.Trim & Color options Quartz Gray
Engine & Drivetrain
Bore x Stroke
4.063" x 4.449" (103.2mm x113mm)
Compression Ratio
11:1
Displacement
116 cu in (1,890 cc)
Drive/Driven Clutch
Wet, Multi-Plate, Assist
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 116
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
126 ft-lbs (171 Nm)
Peak Torque RPM
2,900 RPM
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
5.5 gal (20.8 L)
Ground Clearance
5.1 in (130 mm)
GVWR
1,385 lb (628 kg)
Lean Angle
31°
Overall Height
51.6 in / 1310 mm
Overall Length
98.7 in (2,506 mm)
Overall Width
40.3 in / 1023 mm
Rake/Trail
25° / 5.9 in (150 mm)
Seat Height
25.6 in (650 mm)
Weight (Empty Tank / Full of Fuel)
791 lb (359 kg) / 823 lb (373 kg)
Wheelbase
65.7 in (1668 mm)
Brakes
Front Brakes
Dual 300mm floating rotors with 4-piston calipers
Rear Brakes
Single / 300 mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Metzeler Cruisetec 130/60B19 66H
Front Wheel
10-Spoke Contrast Cut 19 in x 3.5 in
Rear Tires
Metzeler Cruisetec 180/60R16 80H
Rear Wheel
10-Spoke Contrast Cut 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (119 mm)
Rear Suspension
Single Shock w/ Air adjust
Rear Travel
4.5 in (114 mm)
Features
Color/graphics
Black Smoke, Quartz Gray, Ruby Smoke Icon Colors: Dirt Track Smoke, Stealth Gray Azure w/gfx, Blue Slate Metallic
Factory Warranty
2 Years, Unlimited Miles
Gauges
Fairing-mounted instrument cluster featuring analog speedometer and tachometer with fuel gauge, range, odometer and current gear.
Infotainment
7 in touchscreen powered by RIDE COMMAND: Model year 2022 bikes includes a complimentary 1-year trial for connected features from the vehicle sales date (after which, fees apply). 7 in touchscreen display with real-time clock; ambient air temperature; heading; audio information display; map/navigation with real-time traffic and weather; Bluetooth status for phone and headset; vehicle status (tire pressure, voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; vehicle trouble code readout; Apple CarPlay integration.
Lights
LED Headlamp/Tail/Brake/Turn Signal
Standard Equipment
7 in Touchscreen powered by RIDE COMMAND with Navigation and Apple CarPlay integration; Power Windshield; Highway Bars; Vinyl Rogue Seat; Tire Pressure Monitoring; Remote-locking Hard Saddlebags; Selectable Ride Modes; Rear Cylinder Deactivation; ABS; Cruise Control; Keyless Ignition; 100 Watt Audio System with AM/FM, Bluetooth, USB, Smartphone Compatible Input, and Weatherband; 12V Charging Port
.png)
Chieftain Dark Horse
Starting at $28,749 US MSRPPlus destination charge and set-up.Logistics surcharge of $900 will apply.Trim & Color options Ruby Smoke
Engine & Drivetrain
Bore x Stroke
4.063" x 4.449" (103.2mm x113mm)
Compression Ratio
11:1
Displacement
116 cu in (1,890 cc)
Drive/Driven Clutch
Wet, Multi-Plate, Assist
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 116
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
126 ft-lbs (171 Nm)
Peak Torque RPM
2,900 RPM
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
5.5 gal (20.8 L)
Ground Clearance
5.1 in (130 mm)
GVWR
1,385 lb (628 kg)
Lean Angle
31°
Overall Height
51.6 in / 1310 mm
Overall Length
98.7 in (2,506 mm)
Overall Width
40.3 in / 1023 mm
Rake/Trail
25° / 5.9 in (150 mm)
Seat Height
25.6 in (650 mm)
Weight (Empty Tank / Full of Fuel)
791 lb (359 kg) / 823 lb (373 kg)
Wheelbase
65.7 in (1668 mm)
Brakes
Front Brakes
Dual 300mm floating rotors with 4-piston calipers
Rear Brakes
Single / 300 mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Metzeler Cruisetec 130/60B19 66H
Front Wheel
10-Spoke Contrast Cut 19 in x 3.5 in
Rear Tires
Metzeler Cruisetec 180/60R16 80H
Rear Wheel
10-Spoke Contrast Cut 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (119 mm)
Rear Suspension
Single Shock w/ Air adjust
Rear Travel
4.5 in (114 mm)
Features
Color/graphics
Black Smoke, Quartz Gray, Ruby Smoke Icon Colors: Dirt Track Smoke, Stealth Gray Azure w/gfx, Blue Slate Metallic
Factory Warranty
2 Years, Unlimited Miles
Gauges
Fairing-mounted instrument cluster featuring analog speedometer and tachometer with fuel gauge, range, odometer and current gear.
Infotainment
7 in touchscreen powered by RIDE COMMAND: Model year 2022 bikes includes a complimentary 1-year trial for connected features from the vehicle sales date (after which, fees apply). 7 in touchscreen display with real-time clock; ambient air temperature; heading; audio information display; map/navigation with real-time traffic and weather; Bluetooth status for phone and headset; vehicle status (tire pressure, voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; vehicle trouble code readout; Apple CarPlay integration.
Lights
LED Headlamp/Tail/Brake/Turn Signal
Standard Equipment
7 in Touchscreen powered by RIDE COMMAND with Navigation and Apple CarPlay integration; Power Windshield; Highway Bars; Vinyl Rogue Seat; Tire Pressure Monitoring; Remote-locking Hard Saddlebags; Selectable Ride Modes; Rear Cylinder Deactivation; ABS; Cruise Control; Keyless Ignition; 100 Watt Audio System with AM/FM, Bluetooth, USB, Smartphone Compatible Input, and Weatherband; 12V Charging Port
.png)
Chieftain Dark Horse Icon
Starting at $29,749 US MSRPPlus destination charge and set-up.Logistics surcharge of $900 will apply.Trim & Color options Dirt Track Smoke
Engine & Drivetrain
Bore x Stroke
4.063" x 4.449" (103.2mm x113mm)
Compression Ratio
11:1
Displacement
116 cu in (1,890 cc)
Drive/Driven Clutch
Wet, Multi-Plate, Assist
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 116
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
126 ft-lbs (171 Nm)
Peak Torque RPM
2,900 RPM
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
5.5 gal (20.8 L)
Ground Clearance
5.1 in (130 mm)
GVWR
1,385 lb (628 kg)
Lean Angle
31°
Overall Height
51.6 in / 1310 mm
Overall Length
98.7 in (2,506 mm)
Overall Width
40.3 in / 1023 mm
Rake/Trail
25° / 5.9 in (150 mm)
Seat Height
25.6 in (650 mm)
Weight (Empty Tank / Full of Fuel)
791 lb (359 kg) / 823 lb (373 kg)
Wheelbase
65.7 in (1668 mm)
Brakes
Front Brakes
Dual 300mm floating rotors with 4-piston calipers
Rear Brakes
Single / 300 mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Metzeler Cruisetec 130/60B19 66H
Front Wheel
10-Spoke Contrast Cut 19 in x 3.5 in
Rear Tires
Metzeler Cruisetec 180/60R16 80H
Rear Wheel
10-Spoke Contrast Cut 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (119 mm)
Rear Suspension
Single Shock w/ Air adjust
Rear Travel
4.5 in (114 mm)
Features
Color/graphics
Black Smoke, Quartz Gray, Ruby Smoke Icon Colors: Dirt Track Smoke, Stealth Gray Azure w/gfx, Blue Slate Metallic
Factory Warranty
2 Years, Unlimited Miles
Gauges
Fairing-mounted instrument cluster featuring analog speedometer and tachometer with fuel gauge, range, odometer and current gear.
Infotainment
7 in touchscreen powered by RIDE COMMAND: Model year 2022 bikes includes a complimentary 1-year trial for connected features from the vehicle sales date (after which, fees apply). 7 in touchscreen display with real-time clock; ambient air temperature; heading; audio information display; map/navigation with real-time traffic and weather; Bluetooth status for phone and headset; vehicle status (tire pressure, voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; vehicle trouble code readout; Apple CarPlay integration.
Lights
LED Headlamp/Tail/Brake/Turn Signal
Standard Equipment
7 in Touchscreen powered by RIDE COMMAND with Navigation and Apple CarPlay integration; Power Windshield; Highway Bars; Vinyl Rogue Seat; Tire Pressure Monitoring; Remote-locking Hard Saddlebags; Selectable Ride Modes; Rear Cylinder Deactivation; ABS; Cruise Control; Keyless Ignition; 100 Watt Audio System with AM/FM, Bluetooth, USB, Smartphone Compatible Input, and Weatherband; 12V Charging Port
.png)
Chieftain Dark Horse Icon
Starting at $29,749 US MSRPPlus destination charge and set-up.Logistics surcharge of $900 will apply.Trim & Color options Stealth Gray Azure w/gfx
Engine & Drivetrain
Bore x Stroke
4.063" x 4.449" (103.2mm x113mm)
Compression Ratio
11:1
Displacement
116 cu in (1,890 cc)
Drive/Driven Clutch
Wet, Multi-Plate, Assist
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 116
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
126 ft-lbs (171 Nm)
Peak Torque RPM
2,900 RPM
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
5.5 gal (20.8 L)
Ground Clearance
5.1 in (130 mm)
GVWR
1,385 lb (628 kg)
Lean Angle
31°
Overall Height
51.6 in / 1310 mm
Overall Length
98.7 in (2,506 mm)
Overall Width
40.3 in / 1023 mm
Rake/Trail
25° / 5.9 in (150 mm)
Seat Height
25.6 in (650 mm)
Weight (Empty Tank / Full of Fuel)
791 lb (359 kg) / 823 lb (373 kg)
Wheelbase
65.7 in (1668 mm)
Brakes
Front Brakes
Dual 300mm floating rotors with 4-piston calipers
Rear Brakes
Single / 300 mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Metzeler Cruisetec 130/60B19 66H
Front Wheel
10-Spoke Contrast Cut 19 in x 3.5 in
Rear Tires
Metzeler Cruisetec 180/60R16 80H
Rear Wheel
10-Spoke Contrast Cut 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (119 mm)
Rear Suspension
Single Shock w/ Air adjust
Rear Travel
4.5 in (114 mm)
Features
Color/graphics
Black Smoke, Quartz Gray, Ruby Smoke Icon Colors: Dirt Track Smoke, Stealth Gray Azure w/gfx, Blue Slate Metallic
Factory Warranty
2 Years, Unlimited Miles
Gauges
Fairing-mounted instrument cluster featuring analog speedometer and tachometer with fuel gauge, range, odometer and current gear.
Infotainment
7 in touchscreen powered by RIDE COMMAND: Model year 2022 bikes includes a complimentary 1-year trial for connected features from the vehicle sales date (after which, fees apply). 7 in touchscreen display with real-time clock; ambient air temperature; heading; audio information display; map/navigation with real-time traffic and weather; Bluetooth status for phone and headset; vehicle status (tire pressure, voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; vehicle trouble code readout; Apple CarPlay integration.
Lights
LED Headlamp/Tail/Brake/Turn Signal
Standard Equipment
7 in Touchscreen powered by RIDE COMMAND with Navigation and Apple CarPlay integration; Power Windshield; Highway Bars; Vinyl Rogue Seat; Tire Pressure Monitoring; Remote-locking Hard Saddlebags; Selectable Ride Modes; Rear Cylinder Deactivation; ABS; Cruise Control; Keyless Ignition; 100 Watt Audio System with AM/FM, Bluetooth, USB, Smartphone Compatible Input, and Weatherband; 12V Charging Port
.png)
Chieftain Dark Horse Icon
Starting at $29,749 US MSRPPlus destination charge and set-up.Logistics surcharge of $900 will apply.Trim & Color options Blue Slate Metallic
Engine & Drivetrain
Bore x Stroke
4.063" x 4.449" (103.2mm x113mm)
Compression Ratio
11:1
Displacement
116 cu in (1,890 cc)
Drive/Driven Clutch
Wet, Multi-Plate, Assist
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 116
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
126 ft-lbs (171 Nm)
Peak Torque RPM
2,900 RPM
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
5.5 gal (20.8 L)
Ground Clearance
5.1 in (130 mm)
GVWR
1,385 lb (628 kg)
Lean Angle
31°
Overall Height
51.6 in / 1310 mm
Overall Length
98.7 in (2,506 mm)
Overall Width
40.3 in / 1023 mm
Rake/Trail
25° / 5.9 in (150 mm)
Seat Height
25.6 in (650 mm)
Weight (Empty Tank / Full of Fuel)
791 lb (359 kg) / 823 lb (373 kg)
Wheelbase
65.7 in (1668 mm)
Brakes
Front Brakes
Dual 300mm floating rotors with 4-piston calipers
Rear Brakes
Single / 300 mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Metzeler Cruisetec 130/60B19 66H
Front Wheel
10-Spoke Contrast Cut 19 in x 3.5 in
Rear Tires
Metzeler Cruisetec 180/60R16 80H
Rear Wheel
10-Spoke Contrast Cut 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (119 mm)
Rear Suspension
Single Shock w/ Air adjust
Rear Travel
4.5 in (114 mm)
Features
Color/graphics
Black Smoke, Quartz Gray, Ruby Smoke Icon Colors: Dirt Track Smoke, Stealth Gray Azure w/gfx, Blue Slate Metallic
Factory Warranty
2 Years, Unlimited Miles
Gauges
Fairing-mounted instrument cluster featuring analog speedometer and tachometer with fuel gauge, range, odometer and current gear.
Infotainment
7 in touchscreen powered by RIDE COMMAND: Model year 2022 bikes includes a complimentary 1-year trial for connected features from the vehicle sales date (after which, fees apply). 7 in touchscreen display with real-time clock; ambient air temperature; heading; audio information display; map/navigation with real-time traffic and weather; Bluetooth status for phone and headset; vehicle status (tire pressure, voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; vehicle trouble code readout; Apple CarPlay integration.
Lights
LED Headlamp/Tail/Brake/Turn Signal
Standard Equipment
7 in Touchscreen powered by RIDE COMMAND with Navigation and Apple CarPlay integration; Power Windshield; Highway Bars; Vinyl Rogue Seat; Tire Pressure Monitoring; Remote-locking Hard Saddlebags; Selectable Ride Modes; Rear Cylinder Deactivation; ABS; Cruise Control; Keyless Ignition; 100 Watt Audio System with AM/FM, Bluetooth, USB, Smartphone Compatible Input, and Weatherband; 12V Charging Port
.png)
Roadmaster
Starting at $29,999 US MSRPPlus destination charge and set-up.Logistics surcharge of $900 will apply.Trim & Color options Black Metallic
Engine & Drivetrain
Bore x Stroke
4.063" x 4.449" (103.2mm x113mm)
Compression Ratio
11:1
Displacement
116 cu in (1,890 cc)
Drive/Driven Clutch
Wet, Multi-Plate, Assist
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 116
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
126 ft-lbs
Peak Torque RPM
2,900 RPM
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
5.5 gal (20.8 L)
Ground Clearance
5.5 in (140 mm)
GVWR
1,385 lb (628 kg)
Lean Angle
31°
Overall Height
55.7 in / 1415 mm
Overall Length
104.6 in (2,656 mm)
Overall Width
40.2 in (1,022 mm)
Rake/Trail
25° / 5.9 in (150 mm)
Seat Height
26.5 in (673 mm)
Weight (Empty Tank / Full of Fuel)
877 lb (398 kg) / 909 lb (412 kg)
Wheelbase
65.7 in (1668 mm)
Brakes
Front Brakes
Dual / 300 mm Floating Rotor / 4 Piston Caliper
Rear Brakes
Single / 300 mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Metzeler Cruisetec 130/80B17 65H
Front Wheel
Highlight Machine Tour 17 in x 3.5 in
Rear Tires
Metzeler Cruisetec 180/60R16 80H
Rear Wheel
Highlight Machine Tour 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (119 mm)
Rear Suspension
Single Shock w/ Air adjust
Rear Travel
4.5 in (114 mm)
Features
Color/graphics
Black Metallic, Maroon Metallic over Crimson Metallic
Factory Warranty
2 Years, Unlimited Miles
Gauges
Fairing-mounted instrument cluster featuring analog speedometer and tachometer with fuel gauge, range, odometer and current gear. 15 LED telltale indicators; cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS, check engine, low tire pressure, battery, low fuel, security system, low engine oil pressure and MPH or km/h unit designation.
Infotainment
7 in touchscreen powered by RIDE COMMAND: Model year 2022 bikes includes a complimentary 1-year trial for connected features from the vehicle sales date (after which, fees apply). 7 in touchscreen display with real-time clock; ambient air temperature; heading; audio information display; map/navigation with real-time traffic and weather; Bluetooth status for phone and headset; vehicle status (tire pressure, voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; vehicle trouble code readout; Apple CarPlay integration.
Lights
LED Headlamp / Driving / Tail / Brake / Turn Signal
Standard Equipment
7 in Display powered by RIDE COMMAND with Navigation and Apple CarPlay integration; Power Windshield; Driving Lights; Highway Bars; Vinyl Seats (Separate Rider/Passenger Heat Controls); Heated Grips; Adjustable Passenger Floorboards; 36.2 Gallons of Storage; Tire Pressure Monitoring; Remote-locking Hard Saddlebags & Trunk; Selectable Ride Modes; Rear Cylinder Deactivation; ABS; Cruise Control; Keyless Ignition; 200 Watt Audio System with AM/FM, Bluetooth, USB, Smartphone Compatible Input, and Weatherband; 12V Charging Port
.png)
Roadmaster
Starting at $31,499 US MSRPPlus destination charge and set-up.Logistics surcharge of $900 will apply.Trim & Color options Maroon Metallic / Crimson Metallic
Engine & Drivetrain
Bore x Stroke
4.063" x 4.449" (103.2mm x113mm)
Compression Ratio
11:1
Displacement
116 cu in (1,890 cc)
Drive/Driven Clutch
Wet, Multi-Plate, Assist
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 116
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
126 ft-lbs
Peak Torque RPM
2,900 RPM
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
5.5 gal (20.8 L)
Ground Clearance
5.5 in (140 mm)
GVWR
1,385 lb (628 kg)
Lean Angle
31°
Overall Height
55.7 in / 1415 mm
Overall Length
104.6 in (2,656 mm)
Overall Width
40.2 in (1,022 mm)
Rake/Trail
25° / 5.9 in (150 mm)
Seat Height
26.5 in (673 mm)
Weight (Empty Tank / Full of Fuel)
877 lb (398 kg) / 909 lb (412 kg)
Wheelbase
65.7 in (1668 mm)
Brakes
Front Brakes
Dual / 300 mm Floating Rotor / 4 Piston Caliper
Rear Brakes
Single / 300 mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Metzeler Cruisetec 130/80B17 65H
Front Wheel
Highlight Machine Tour 17 in x 3.5 in
Rear Tires
Metzeler Cruisetec 180/60R16 80H
Rear Wheel
Highlight Machine Tour 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (119 mm)
Rear Suspension
Single Shock w/ Air adjust
Rear Travel
4.5 in (114 mm)
Features
Color/graphics
Black Metallic, Maroon Metallic over Crimson Metallic
Factory Warranty
2 Years, Unlimited Miles
Gauges
Fairing-mounted instrument cluster featuring analog speedometer and tachometer with fuel gauge, range, odometer and current gear. 15 LED telltale indicators; cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS, check engine, low tire pressure, battery, low fuel, security system, low engine oil pressure and MPH or km/h unit designation.
Infotainment
7 in touchscreen powered by RIDE COMMAND: Model year 2022 bikes includes a complimentary 1-year trial for connected features from the vehicle sales date (after which, fees apply). 7 in touchscreen display with real-time clock; ambient air temperature; heading; audio information display; map/navigation with real-time traffic and weather; Bluetooth status for phone and headset; vehicle status (tire pressure, voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; vehicle trouble code readout; Apple CarPlay integration.
Lights
LED Headlamp / Driving / Tail / Brake / Turn Signal
Standard Equipment
7 in Display powered by RIDE COMMAND with Navigation and Apple CarPlay integration; Power Windshield; Driving Lights; Highway Bars; Vinyl Seats (Separate Rider/Passenger Heat Controls); Heated Grips; Adjustable Passenger Floorboards; 36.2 Gallons of Storage; Tire Pressure Monitoring; Remote-locking Hard Saddlebags & Trunk; Selectable Ride Modes; Rear Cylinder Deactivation; ABS; Cruise Control; Keyless Ignition; 200 Watt Audio System with AM/FM, Bluetooth, USB, Smartphone Compatible Input, and Weatherband; 12V Charging Port
.png)
Roadmaster Limited
Starting at $30,749 US MSRPPlus destination charge and set-up.Logistics surcharge of $900 will apply.Trim & Color options Black Azure Crystal
Engine & Drivetrain
Bore x Stroke
4.063" x 4.449" (103.2mm x113mm)
Compression Ratio
11.0:1
Displacement
116 cu in (1,890 cc)
Drive/Driven Clutch
Wet, Multi-Plate, Assist
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 116
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
126 ft-lb (172.2 Nm)
Peak Torque RPM
2,900 RPM
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
5.5 gal (20.8 L)
Ground Clearance
5.5 in (140 mm)
GVWR
1,385 lb (628 kg)
Lean Angle
31°
Overall Height
55.7 in / 1415 mm
Overall Length
102.1 in (2,593.3 mm)
Overall Width
40.2 in (1,022 mm)
Rake/Trail
25° / 5.9 in (150 mm)
Seat Height
26.5 in (673 mm)
Weight (Empty Tank / Full of Fuel)
858 lb (389 kg) / 890 lb (403 kg)
Wheelbase
65.7 in (1,669 mm)
Brakes
Front Brakes
Dual / 300 mm Floating Rotor / 4 Piston Caliper
Rear Brakes
Single / 300 mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Metzeler Cruisetec 130/60B19 66H
Front Wheel
10-Spoke Contrast Cut 19 in x 3.5 in
Rear Tires
Metzeler Cruisetec 180/60R16 80H
Rear Wheel
10-Spoke Contrast Cut 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (119 mm)
Rear Suspension
Single Shock w/ Air adjust
Rear Travel
4.5 in (114 mm)
Features
Color/graphics
Black Azure Crystal, Crimson Metallic
Factory Warranty
2 Years, Unlimited Miles
Gauges
Fairing-mounted instrument cluster featuring analog speedometer and tachometer with fuel gauge, range, odometer and current gear. 15 LED telltale indicators; cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS, check engine, low tire pressure, battery, low fuel, security system, low engine oil pressure and MPH or km/h unit designation. Tank mounted auxiliary analog fuel and voltage guages.
Infotainment
7 in touchscreen powered by RIDE COMMAND: Model year 2022 bikes includes a complimentary 1-year trial for connected features from the vehicle sales date (after which, fees apply). 7 in touchscreen display with real-time clock; ambient air temperature; heading; audio information display; map/navigation with real-time traffic and weather; Bluetooth status for phone and headset; vehicle status (tire pressure, voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; vehicle trouble code readout; Apple CarPlay integration.
Lights
LED Headlamp/Driving/Tail/Brake/Turn Signal
Standard Equipment
7 inch touchscreen powered by RIDE COMMAND with Navigation and Apple CarPlay® integration; Power Windshield; Highway Bars; Vinyl Rogue Seats; Heated Grips; Adjustable Passenger Floorboards; 36.2 Gallons of Storage; Tire Pressure Monitoring; Remote-locking Hard Saddlebags & Trunk; Selectable Ride Modes; Rear Cylinder Deactivation; ABS; Cruise Control; Keyless Ignition; 200 Watt Audio System with AM/FM, Bluetooth, USB, Smartphone Compatible Input, and Weatherband; 12V Charging Port
.png)
Roadmaster Limited
Starting at $30,749 US MSRPPlus destination charge and set-up.Logistics surcharge of $900 will apply.Trim & Color options Crimson Metallic
Engine & Drivetrain
Bore x Stroke
4.063" x 4.449" (103.2mm x113mm)
Compression Ratio
11.0:1
Displacement
116 cu in (1,890 cc)
Drive/Driven Clutch
Wet, Multi-Plate, Assist
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 116
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
126 ft-lb (172.2 Nm)
Peak Torque RPM
2,900 RPM
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
5.5 gal (20.8 L)
Ground Clearance
5.5 in (140 mm)
GVWR
1,385 lb (628 kg)
Lean Angle
31°
Overall Height
55.7 in / 1415 mm
Overall Length
102.1 in (2,593.3 mm)
Overall Width
40.2 in (1,022 mm)
Rake/Trail
25° / 5.9 in (150 mm)
Seat Height
26.5 in (673 mm)
Weight (Empty Tank / Full of Fuel)
858 lb (389 kg) / 890 lb (403 kg)
Wheelbase
65.7 in (1,669 mm)
Brakes
Front Brakes
Dual / 300 mm Floating Rotor / 4 Piston Caliper
Rear Brakes
Single / 300 mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Metzeler Cruisetec 130/60B19 66H
Front Wheel
10-Spoke Contrast Cut 19 in x 3.5 in
Rear Tires
Metzeler Cruisetec 180/60R16 80H
Rear Wheel
10-Spoke Contrast Cut 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (119 mm)
Rear Suspension
Single Shock w/ Air adjust
Rear Travel
4.5 in (114 mm)
Features
Color/graphics
Black Azure Crystal, Crimson Metallic
Factory Warranty
2 Years, Unlimited Miles
Gauges
Fairing-mounted instrument cluster featuring analog speedometer and tachometer with fuel gauge, range, odometer and current gear. 15 LED telltale indicators; cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS, check engine, low tire pressure, battery, low fuel, security system, low engine oil pressure and MPH or km/h unit designation. Tank mounted auxiliary analog fuel and voltage guages.
Infotainment
7 in touchscreen powered by RIDE COMMAND: Model year 2022 bikes includes a complimentary 1-year trial for connected features from the vehicle sales date (after which, fees apply). 7 in touchscreen display with real-time clock; ambient air temperature; heading; audio information display; map/navigation with real-time traffic and weather; Bluetooth status for phone and headset; vehicle status (tire pressure, voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; vehicle trouble code readout; Apple CarPlay integration.
Lights
LED Headlamp/Driving/Tail/Brake/Turn Signal
Standard Equipment
7 inch touchscreen powered by RIDE COMMAND with Navigation and Apple CarPlay® integration; Power Windshield; Highway Bars; Vinyl Rogue Seats; Heated Grips; Adjustable Passenger Floorboards; 36.2 Gallons of Storage; Tire Pressure Monitoring; Remote-locking Hard Saddlebags & Trunk; Selectable Ride Modes; Rear Cylinder Deactivation; ABS; Cruise Control; Keyless Ignition; 200 Watt Audio System with AM/FM, Bluetooth, USB, Smartphone Compatible Input, and Weatherband; 12V Charging Port
.png)
Roadmaster Dark Horse
Starting at $30,499 US MSRPPlus destination charge and set-up.Logistics surcharge of $900 will apply.Trim & Color options Black Smoke
Engine & Drivetrain
Bore x Stroke
4.063" x 4.449" (103.2mm x113mm)
Compression Ratio
11.0:1
Displacement
116 cu in (1,890 cc)
Drive/Driven Clutch
Wet, Multi-Plate, Assist
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 116
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
126 ft-lb (172.2 Nm)
Peak Torque RPM
2,900 RPM
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
5.5 gal (20.8 L)
Ground Clearance
5.5 in (140 mm)
GVWR
1,385 lb (628 kg)
Lean Angle
31°
Overall Height
55.7 in / 1415 mm
Overall Length
102.1 in (2,593.3 mm)
Overall Width
40.2 in (1,022 mm)
Rake/Trail
25° / 5.9 in (150 mm)
Seat Height
26.5 in (673 mm)
Weight (Empty Tank / Full of Fuel)
858 lb (389 kg) / 890 lb (403 kg)
Wheelbase
65.7 in (1,669 mm)
Brakes
Front Brakes
Dual / 300 mm Floating Rotor / 4 Piston Caliper
Rear Brakes
Single / 300 mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Metzeler Cruisetec 130/60B19 66H
Front Wheel
10-Spoke Contrast Cut 19 in x 3.5 in
Rear Tires
Metzeler Cruisetec 180/60R16 80H
Rear Wheel
10-Spoke Contrast Cut 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (119 mm)
Rear Suspension
Single Shock w/ Air adjust
Rear Travel
4.5 in (114 mm)
Features
Color/graphics
Black Azure Crystal, Crimson Metallic
Factory Warranty
2 Years, Unlimited Miles
Gauges
Fairing-mounted instrument cluster featuring analog speedometer and tachometer with fuel gauge, range, odometer and current gear. 15 LED telltale indicators; cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS, check engine, low tire pressure, battery, low fuel, security system, low engine oil pressure and MPH or km/h unit designation. Tank mounted auxiliary analog fuel and voltage guages.
Infotainment
7 in touchscreen powered by RIDE COMMAND: Model year 2022 bikes includes a complimentary 1-year trial for connected features from the vehicle sales date (after which, fees apply). 7 in touchscreen display with real-time clock; ambient air temperature; heading; audio information display; map/navigation with real-time traffic and weather; Bluetooth status for phone and headset; vehicle status (tire pressure, voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; vehicle trouble code readout; Apple CarPlay integration.
Lights
LED Headlamp/Driving/Tail/Brake/Turn Signal
Standard Equipment
7 inch touchscreen powered by RIDE COMMAND with Navigation and Apple CarPlay® integration; Power Windshield; Highway Bars; Vinyl Rogue Seats; Heated Grips; Adjustable Passenger Floorboards; 36.2 Gallons of Storage; Tire Pressure Monitoring; Remote-locking Hard Saddlebags & Trunk; Selectable Ride Modes; Rear Cylinder Deactivation; ABS; Cruise Control; Keyless Ignition; 200 Watt Audio System with AM/FM, Bluetooth, USB, Smartphone Compatible Input, and Weatherband; 12V Charging Port
.png)
Roadmaster Dark Horse
Starting at $31,249 US MSRPPlus destination charge and set-up.Logistics surcharge of $900 will apply.Trim & Color options Polished Bronze
Engine & Drivetrain
Bore x Stroke
4.063" x 4.449" (103.2mm x113mm)
Compression Ratio
11:1
Displacement
116 cu in (1,890 cc)
Drive/Driven Clutch
Wet, Multi-Plate, Assist
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 116
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
126 ft-lbs
Peak Torque RPM
2,900 RPM
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
5.5 gal (20.8 L)
Ground Clearance
5.5 in (140 mm)
GVWR
1,385 lb (628 kg)
Lean Angle
31°
Overall Height
55.7 in / 1415 mm
Overall Length
102.1 in / 2593 mm
Overall Width
40.2 in (1,022 mm)
Rake/Trail
25° / 5.9 in (150 mm)
Seat Height
26.5 in (673 mm)
Weight (Empty Tank / Full of Fuel)
858 lb (389 kg) / 890 lb (403 kg)
Wheelbase
65.7 in (1668 mm)
Brakes
Front Brakes
Dual / 300 mm Floating Rotor / 4 Piston Caliper
Rear Brakes
Single / 300 mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Metzeler Cruisetec 130/60B19 66H
Front Wheel
10-Spoke Contrast Cut 19 in x 3.5 in
Rear Tires
Metzeler Cruisetec 180/60R16 80H
Rear Wheel
10-Spoke Contrast Cut 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (119 mm)
Rear Suspension
Single Shock w/ Air adjust
Rear Travel
4.5 in (114 mm)
Features
Color/graphics
Black Smoke, Polished Bronze, Silver Quartz Smoke
Factory Warranty
2 Years, Unlimited Miles
Gauges
Fairing-mounted instrument cluster featuring analog speedometer and tachometer with fuel gauge, range, odometer and current gear. 15 LED telltale indicators; cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS, check engine, low tire pressure, battery, low fuel, security system, low engine oil pressure and MPH or km/h unit designation.
Infotainment
7 in touchscreen powered by RIDE COMMAND: Model year 2022 bikes includes a complimentary 1-year trial for connected features from the vehicle sales date (after which, fees apply). 7 in touchscreen display with real-time clock; ambient air temperature; heading; audio information display; map/navigation with real-time traffic and weather; Bluetooth status for phone and headset; vehicle status (tire pressure, voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; vehicle trouble code readout; Apple CarPlay integration.
Lights
LED Headlamp / Tail / Brake / Turn Signal
Standard Equipment
7 in Display powered by RIDE COMMAND® with Navigation and Apple CarPlay integration; Power Windshield; Driving Lights; Highway Bars; Vinyl Rogue Seats; Heated Grips; Adjustable Passenger Floorboards; 36.2 Gallons of Storage; Tire Pressure Monitoring; Remote-locking Hard Saddlebags & Trunk; Selectable Ride Modes; Rear Cylinder Deactivation; ABS; Cruise Control; Keyless Ignition; 200 Watt Audio System with AM/FM, Bluetooth, USB, Smartphone Compatible Input, and Weatherband; 12V Charging Port
.png)
Roadmaster Dark Horse
Starting at $31,249 US MSRPPlus destination charge and set-up.Logistics surcharge of $900 will apply.Trim & Color options Silver Quartz Smoke
Engine & Drivetrain
Bore x Stroke
4.063" x 4.449" (103.2mm x113mm)
Compression Ratio
11:1
Displacement
116 cu in (1,890 cc)
Drive/Driven Clutch
Wet, Multi-Plate, Assist
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 116
Exhaust
Split Dual Exhaust w/ Cross-over
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
126 ft-lbs
Peak Torque RPM
2,900 RPM
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
5.5 gal (20.8 L)
Ground Clearance
5.5 in (140 mm)
GVWR
1,385 lb (628 kg)
Lean Angle
31°
Overall Height
55.7 in / 1415 mm
Overall Length
102.1 in / 2593 mm
Overall Width
40.2 in (1,022 mm)
Rake/Trail
25° / 5.9 in (150 mm)
Seat Height
26.5 in (673 mm)
Weight (Empty Tank / Full of Fuel)
858 lb (389 kg) / 890 lb (403 kg)
Wheelbase
65.7 in (1668 mm)
Brakes
Front Brakes
Dual / 300 mm Floating Rotor / 4 Piston Caliper
Rear Brakes
Single / 300 mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Metzeler Cruisetec 130/60B19 66H
Front Wheel
10-Spoke Contrast Cut 19 in x 3.5 in
Rear Tires
Metzeler Cruisetec 180/60R16 80H
Rear Wheel
10-Spoke Contrast Cut 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
4.7 in (119 mm)
Rear Suspension
Single Shock w/ Air adjust
Rear Travel
4.5 in (114 mm)
Features
Color/graphics
Black Smoke, Polished Bronze, Silver Quartz Smoke
Factory Warranty
2 Years, Unlimited Miles
Gauges
Fairing-mounted instrument cluster featuring analog speedometer and tachometer with fuel gauge, range, odometer and current gear. 15 LED telltale indicators; cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS, check engine, low tire pressure, battery, low fuel, security system, low engine oil pressure and MPH or km/h unit designation.
Infotainment
7 in touchscreen powered by RIDE COMMAND: Model year 2022 bikes includes a complimentary 1-year trial for connected features from the vehicle sales date (after which, fees apply). 7 in touchscreen display with real-time clock; ambient air temperature; heading; audio information display; map/navigation with real-time traffic and weather; Bluetooth status for phone and headset; vehicle status (tire pressure, voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; vehicle trouble code readout; Apple CarPlay integration.
Lights
LED Headlamp / Tail / Brake / Turn Signal
Standard Equipment
7 in Display powered by RIDE COMMAND® with Navigation and Apple CarPlay integration; Power Windshield; Driving Lights; Highway Bars; Vinyl Rogue Seats; Heated Grips; Adjustable Passenger Floorboards; 36.2 Gallons of Storage; Tire Pressure Monitoring; Remote-locking Hard Saddlebags & Trunk; Selectable Ride Modes; Rear Cylinder Deactivation; ABS; Cruise Control; Keyless Ignition; 200 Watt Audio System with AM/FM, Bluetooth, USB, Smartphone Compatible Input, and Weatherband; 12V Charging Port
Chief
Starting at $14,499 US MSRPPlus destination charge and set-up.Logistics surcharge of $800 will apply.Trim & Color options Black Metallic
Engine & Drivetrain
Bore x Stroke
3.976 in x 4.449 in (101 mm x 113 mm)
Compression Ratio
9.5:1
Displacement
111 cu in (1,811 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 111
Exhaust
Dual Exhaust w/ Crossover
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
108 ft-lbs (146 Nm)
Peak Torque RPM
3,200 rpm
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
4.0 gal (15.1 L)
Ground Clearance
4.9 in (125 mm)
GVWR
1,160 lbs (522 kg)
Lean Angle
28.5°
Overall Height
49.3 in (1,253 cm)
Overall Length
90 in (2,286 mm)
Overall Width
36.3 in (922 mm)
Rake/Trail
29° / 5.2 in (131.5 mm)
Seat Height
26.0 in (662 mm)
Weight (Empty Tank / Full of Fuel)
647 lbs (294 kg) / 670 lbs (304 kg)
Wheelbase
64.0 in (1,626 mm)
Brakes
Front Brakes
Single / 300 mm Floating Rotor / 4 Piston Caliper
Rear Brakes
Single / 300 mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Pirelli® Night Dragon 130/60B19 61H
Front Wheel
Cast Black 19 in x 3.5 in
Rear Tires
Pirelli® Night Dragon 180/65 B16 81H
Rear Wheel
Cast Black 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
5.2 in (132 mm)
Rear Suspension
Dual Shocks w/adjustable preload
Rear Travel
3.0 in (75 mm)
Features
Color / Graphics
Black Metallic, Ruby Smoke, White Smoke
Factory Warranty
2 Years, Unlimited Miles
Gauges
Electronic speedometer with odometer; dual tripmeters; digital tachometer; ambient air temperature; fuel range; average fuel economy; battery voltage; gear position display; real-time clock; vehicle trouble code readout; low engine oil pressure; and 9 LED telltale indicators: cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS (if equipped), check engine, and MPH or km/h unit designation; electronic fuel gauge with low fuel indicator
Infotainment
N/A
Lights
LED Headlight, LED Tail/Brake/Turn Signals
Standard Equipment
Ride Modes, Keyless Ignition, 12V Charge Port, Rear Cylinder Deactivation
Chief
Starting at $14,999 US MSRPPlus destination charge and set-up.Logistics surcharge of $800 will apply.Trim & Color options White Metallic
Engine & Drivetrain
Bore x Stroke
3.976 in x 4.449 in (101 mm x 113 mm)
Compression Ratio
9.5:1
Displacement
111 cu in (1,811 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 111
Exhaust
Dual Exhaust w/ Crossover
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
108 ft-lbs (146 Nm)
Peak Torque RPM
3,200 rpm
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
4.0 gal (15.1 L)
Ground Clearance
4.9 in (125 mm)
GVWR
1,160 lbs (522 kg)
Lean Angle
28.5°
Overall Height
49.3 in (1,253 cm)
Overall Length
90 in (2,286 mm)
Overall Width
36.3 in (922 mm)
Rake/Trail
29° / 5.2 in (131.5 mm)
Seat Height
26.0 in (662 mm)
Weight (Empty Tank / Full of Fuel)
647 lbs (294 kg) / 670 lbs (304 kg)
Wheelbase
64.0 in (1,626 mm)
Brakes
Front Brakes
Single / 300 mm Floating Rotor / 4 Piston Caliper
Rear Brakes
Single / 300 mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Pirelli® Night Dragon 130/60B19 61H
Front Wheel
Cast Black 19 in x 3.5 in
Rear Tires
Pirelli® Night Dragon 180/65 B16 81H
Rear Wheel
Cast Black 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
5.2 in (132 mm)
Rear Suspension
Dual Shocks w/adjustable preload
Rear Travel
3.0 in (75 mm)
Features
Color / Graphics
Black Metallic, Ruby Smoke, White Smoke
Factory Warranty
2 Years, Unlimited Miles
Gauges
Electronic speedometer with odometer; dual tripmeters; digital tachometer; ambient air temperature; fuel range; average fuel economy; battery voltage; gear position display; real-time clock; vehicle trouble code readout; low engine oil pressure; and 9 LED telltale indicators: cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS (if equipped), check engine, and MPH or km/h unit designation; electronic fuel gauge with low fuel indicator
Infotainment
N/A
Lights
LED Headlight, LED Tail/Brake/Turn Signals
Standard Equipment
Ride Modes, Keyless Ignition, 12V Charge Port, Rear Cylinder Deactivation
Chief
Starting at $15,299 US MSRPPlus destination charge and set-up.Logistics surcharge of $800 will apply.Trim & Color options Black Metallic (ABS)
Engine & Drivetrain
Bore x Stroke
3.976 in x 4.449 in (101 mm x 113 mm)
Compression Ratio
9.5:1
Displacement
111 cu in (1,811 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 111
Exhaust
Dual Exhaust w/ Crossover
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
108 ft-lbs (146 Nm)
Peak Torque RPM
3,200 rpm
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
4.0 gal (15.1 L)
Ground Clearance
4.9 in (125 mm)
GVWR
1,160 lbs (522 kg)
Lean Angle
28.5°
Overall Height
49.3 in (1,253 cm)
Overall Length
90 in (2,286 mm)
Overall Width
36.3 in (922 mm)
Rake/Trail
29° / 5.2 in (131.5 mm)
Seat Height
26.0 in (662 mm)
Weight (Empty Tank / Full of Fuel)
647 lbs (294 kg) / 670 lbs (304 kg)
Wheelbase
64.0 in (1,626 mm)
Brakes
Front Brakes
Single / 300 mm Floating Rotor / 4 Piston Caliper
Rear Brakes
Single / 300 mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Pirelli® Night Dragon 130/60B19 61H
Front Wheel
Cast Black 19 in x 3.5 in
Rear Tires
Pirelli® Night Dragon 180/65 B16 81H
Rear Wheel
Cast Black 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
5.2 in (132 mm)
Rear Suspension
Dual Shocks w/adjustable preload
Rear Travel
3.0 in (75 mm)
Features
Color / Graphics
Black Metallic, Ruby Smoke, White Smoke
Factory Warranty
2 Years, Unlimited Miles
Gauges
Electronic speedometer with odometer; dual tripmeters; digital tachometer; ambient air temperature; fuel range; average fuel economy; battery voltage; gear position display; real-time clock; vehicle trouble code readout; low engine oil pressure; and 9 LED telltale indicators: cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS (if equipped), check engine, and MPH or km/h unit designation; electronic fuel gauge with low fuel indicator
Infotainment
N/A
Lights
LED Headlight, LED Tail/Brake/Turn Signals
Standard Equipment
Ride Modes, Keyless Ignition, 12V Charge Port, Rear Cylinder Deactivation
Chief
Starting at $15,799 US MSRPPlus destination charge and set-up.Logistics surcharge of $800 will apply.Trim & Color options White Smoke (ABS)
Engine & Drivetrain
Bore x Stroke
3.976 in x 4.449 in (101 mm x 113 mm)
Compression Ratio
9.5:1
Displacement
111 cu in (1,811 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 111
Exhaust
Dual Exhaust w/ Crossover
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
108 ft-lbs (146 Nm)
Peak Torque RPM
3,200 rpm
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
4.0 gal (15.1 L)
Ground Clearance
4.9 in (125 mm)
GVWR
1,160 lbs (522 kg)
Lean Angle
28.5°
Overall Height
49.3 in (1,253 cm)
Overall Length
90 in (2,286 mm)
Overall Width
36.3 in (922 mm)
Rake/Trail
29° / 5.2 in (131.5 mm)
Seat Height
26.0 in (662 mm)
Weight (Empty Tank / Full of Fuel)
647 lbs (294 kg) / 670 lbs (304 kg)
Wheelbase
64.0 in (1,626 mm)
Brakes
Front Brakes
Single / 300 mm Floating Rotor / 4 Piston Caliper
Rear Brakes
Single / 300 mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Pirelli® Night Dragon 130/60B19 61H
Front Wheel
Cast Black 19 in x 3.5 in
Rear Tires
Pirelli® Night Dragon 180/65 B16 81H
Rear Wheel
Cast Black 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
5.2 in (132 mm)
Rear Suspension
Dual Shocks w/adjustable preload
Rear Travel
3.0 in (75 mm)
Features
Color / Graphics
Black Metallic, Ruby Smoke, White Smoke
Factory Warranty
2 Years, Unlimited Miles
Gauges
Electronic speedometer with odometer; dual tripmeters; digital tachometer; ambient air temperature; fuel range; average fuel economy; battery voltage; gear position display; real-time clock; vehicle trouble code readout; low engine oil pressure; and 9 LED telltale indicators: cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS (if equipped), check engine, and MPH or km/h unit designation; electronic fuel gauge with low fuel indicator
Infotainment
N/A
Lights
LED Headlight, LED Tail/Brake/Turn Signals
Standard Equipment
Ride Modes, Keyless Ignition, 12V Charge Port, Rear Cylinder Deactivation
Chief
Starting at $15,799 US MSRPPlus destination charge and set-up.Logistics surcharge of $800 will apply.Trim & Color options Ruby Smoke (ABS)
Engine & Drivetrain
Bore x Stroke
3.976 in x 4.449 in (101 mm x 113 mm)
Compression Ratio
9.5:1
Displacement
111 cu in (1,811 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 111
Exhaust
Dual Exhaust w/ Crossover
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
108 ft-lbs (146 Nm)
Peak Torque RPM
3,200 rpm
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
4.0 gal (15.1 L)
Ground Clearance
4.9 in (125 mm)
GVWR
1,160 lbs (522 kg)
Lean Angle
28.5°
Overall Height
49.3 in (1,253 cm)
Overall Length
90 in (2,286 mm)
Overall Width
36.3 in (922 mm)
Rake/Trail
29° / 5.2 in (131.5 mm)
Seat Height
26.0 in (662 mm)
Weight (Empty Tank / Full of Fuel)
647 lbs (294 kg) / 670 lbs (304 kg)
Wheelbase
64.0 in (1,626 mm)
Brakes
Front Brakes
Single / 300 mm Floating Rotor / 4 Piston Caliper
Rear Brakes
Single / 300 mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Pirelli® Night Dragon 130/60B19 61H
Front Wheel
Cast Black 19 in x 3.5 in
Rear Tires
Pirelli® Night Dragon 180/65 B16 81H
Rear Wheel
Cast Black 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
5.2 in (132 mm)
Rear Suspension
Dual Shocks w/adjustable preload
Rear Travel
3.0 in (75 mm)
Features
Color / Graphics
Black Metallic, Ruby Smoke, White Smoke
Factory Warranty
2 Years, Unlimited Miles
Gauges
Electronic speedometer with odometer; dual tripmeters; digital tachometer; ambient air temperature; fuel range; average fuel economy; battery voltage; gear position display; real-time clock; vehicle trouble code readout; low engine oil pressure; and 9 LED telltale indicators: cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS (if equipped), check engine, and MPH or km/h unit designation; electronic fuel gauge with low fuel indicator
Infotainment
N/A
Lights
LED Headlight, LED Tail/Brake/Turn Signals
Standard Equipment
Ride Modes, Keyless Ignition, 12V Charge Port, Rear Cylinder Deactivation
.png)
Chief Dark Horse
Starting at $16,999 US MSRPPlus destination charge and set-up.Logistics surcharge of $800 will apply.Trim & Color options Black Smoke
Engine & Drivetrain
Bore x Stroke
4.063" x 4.449" (103.2mm x113mm)
Compression Ratio
11.0:1
Displacement
116 cu in (1,890 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 116
Exhaust
Dual Exhaust w/ Crossover
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
120 ft-lbs (162 Nm)
Peak Torque RPM
2,900 RPM
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
4.0 gal (15.1 L)
Ground Clearance
4.9 in (125 mm)
GVWR
1,160 lbs (522 kg)
Lean Angle
28.5°
Overall Height
49.3 in (1,253 cm)
Overall Length
90 in (2,286 mm)
Overall Width
36.3 in (922 mm)
Rake/Trail
29° / 5.2 in (131.5 mm)
Seat Height
26.0 in (662 mm)
Weight (Empty Tank / Full of Fuel)
647 lbs (294 kg) / 670 lbs (304 kg)
Wheelbase
64.0 in (1,626 mm)
Brakes
Front Brakes
Single / 300mm Semi-Floating Rotor / 4 Piston Caliper
Rear Brakes
Single / 300mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Pirelli® Night Dragon 130/60B19 61H
Front Wheel
Machine Highlighted Cast Black 19 in x 3.5 in
Rear Tires
Pirelli® Night Dragon 180/65 B16 81H
Rear Wheel
Machine Highlighted Cast Black 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
5.2 in (132 mm)
Rear Suspension
Dual Shocks w/adjustable preload
Rear Travel
3.0 in (75 mm)
Features
Color / Graphics
Alumina Jade Smoke, Black Smoke, Stealth Gray
Factory Warranty
2 Years, Unlimited Miles
Gauges
Speedometer, Tachometer, Odometer, fuel gauge, compass, ambient temperature, Gear indicator
Infotainment
4 inch Touchscreen powered by RIDE COMMAND with connected services such as real time traffic weather and traffic overlay included for a complementary 1-year trial for connected features from the vehicle sales date (after which, fees apply). Touchscreen display includes real-time clock; ambient air temperature; heading; audio information display; map/navigation with real-time traffic and weather; Bluetooth status for phone and headset; vehicle status (voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; and vehicle trouble code readout.
Lights
LED Headlight, LED Tail/Brake/Turn Signals
Standard Equipment
ABS, Ride Modes, Keyless Ignition, USB charge port, 12V Charge Port, Rear Cylinder Deactivation
.png)
Chief Dark Horse
Starting at $17,499 US MSRPPlus destination charge and set-up.Logistics surcharge of $800 will apply.Trim & Color options Alumina Jade Smoke
Engine & Drivetrain
Bore x Stroke
4.063" x 4.449" (103.2mm x113mm)
Compression Ratio
11.0:1
Displacement
116 cu in (1,890 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 116
Exhaust
Dual Exhaust w/ Crossover
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
120 ft-lbs (162 Nm)
Peak Torque RPM
2,900 RPM
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
4.0 gal (15.1 L)
Ground Clearance
4.9 in (125 mm)
GVWR
1,160 lbs (522 kg)
Lean Angle
28.5°
Overall Height
49.3 in (1,253 cm)
Overall Length
90 in (2,286 mm)
Overall Width
36.3 in (922 mm)
Rake/Trail
29° / 5.2 in (131.5 mm)
Seat Height
26.0 in (662 mm)
Weight (Empty Tank / Full of Fuel)
647 lbs (294 kg) / 670 lbs (304 kg)
Wheelbase
64.0 in (1,626 mm)
Brakes
Front Brakes
Single / 300mm Semi-Floating Rotor / 4 Piston Caliper
Rear Brakes
Single / 300mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Pirelli® Night Dragon 130/60B19 61H
Front Wheel
Machine Highlighted Cast Black 19 in x 3.5 in
Rear Tires
Pirelli® Night Dragon 180/65 B16 81H
Rear Wheel
Machine Highlighted Cast Black 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
5.2 in (132 mm)
Rear Suspension
Dual Shocks w/adjustable preload
Rear Travel
3.0 in (75 mm)
Features
Color / Graphics
Alumina Jade Smoke, Black Smoke, Stealth Gray
Factory Warranty
2 Years, Unlimited Miles
Gauges
Speedometer, Tachometer, Odometer, fuel gauge, compass, ambient temperature, Gear indicator
Infotainment
4 inch Touchscreen powered by RIDE COMMAND with connected services such as real time traffic weather and traffic overlay included for a complementary 1-year trial for connected features from the vehicle sales date (after which, fees apply). Touchscreen display includes real-time clock; ambient air temperature; heading; audio information display; map/navigation with real-time traffic and weather; Bluetooth status for phone and headset; vehicle status (voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; and vehicle trouble code readout.
Lights
LED Headlight, LED Tail/Brake/Turn Signals
Standard Equipment
ABS, Ride Modes, Keyless Ignition, USB charge port, 12V Charge Port, Rear Cylinder Deactivation
Chief Dark Horse
Starting at $17,499 US MSRPPlus destination charge and set-up.Logistics surcharge of $800 will apply.Trim & Color options Stealth Gray
Engine & Drivetrain
Bore x Stroke
4.063" x 4.449" (103.2mm x113mm)
Compression Ratio
11.0:1
Displacement
116 cu in (1,890 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 116
Exhaust
Dual Exhaust w/ Crossover
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
120 ft-lbs (162 Nm)
Peak Torque RPM
2,900 RPM
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
4.0 gal (15.1 L)
Ground Clearance
4.9 in (125 mm)
GVWR
1,160 lbs (522 kg)
Lean Angle
28.5°
Overall Height
49.3 in (1,253 cm)
Overall Length
90 in (2,286 mm)
Overall Width
36.3 in (922 mm)
Rake/Trail
29° / 5.2 in (131.5 mm)
Seat Height
26.0 in (662 mm)
Weight (Empty Tank / Full of Fuel)
647 lbs (294 kg) / 670 lbs (304 kg)
Wheelbase
64.0 in (1,626 mm)
Brakes
Front Brakes
Single / 300mm Semi-Floating Rotor / 4 Piston Caliper
Rear Brakes
Single / 300mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Pirelli® Night Dragon 130/60B19 61H
Front Wheel
Machine Highlighted Cast Black 19 in x 3.5 in
Rear Tires
Pirelli® Night Dragon 180/65 B16 81H
Rear Wheel
Machine Highlighted Cast Black 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
5.2 in (132 mm)
Rear Suspension
Dual Shocks w/adjustable preload
Rear Travel
3.0 in (75 mm)
Features
Color / Graphics
Alumina Jade Smoke, Black Smoke, Stealth Gray
Factory Warranty
2 Years, Unlimited Miles
Gauges
Speedometer, Tachometer, Odometer, fuel gauge, compass, ambient temperature, Gear indicator
Infotainment
4 inch Touchscreen powered by RIDE COMMAND with connected services such as real time traffic weather and traffic overlay included for a complementary 1-year trial for connected features from the vehicle sales date (after which, fees apply). Touchscreen display includes real-time clock; ambient air temperature; heading; audio information display; map/navigation with real-time traffic and weather; Bluetooth status for phone and headset; vehicle status (voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; and vehicle trouble code readout.
Lights
LED Headlight, LED Tail/Brake/Turn Signals
Standard Equipment
ABS, Ride Modes, Keyless Ignition, USB charge port, 12V Charge Port, Rear Cylinder Deactivation
.png)
Chief Bobber
Starting at $15,999 US MSRPPlus destination charge and set-up.Logistics surcharge of $800 will apply.Trim & Color options Black MetallicEngine & Drivetrain
Bore x Stroke
3.976 in x 4.449 in (101 mm x 113 mm)
Compression Ratio
9.5:1
Displacement
111 cu in (1,811 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 111
Exhaust
Dual Exhaust w/ Crossover
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
108 ft-lbs (146 Nm)
Peak Torque RPM
3,200 rpm
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
4.0 gal (15.1 L)
Ground Clearance
4.9 in (125 mm)
GVWR
1,160 lb (522 kg)
Lean Angle
28.5°
Overall Height
53.1 in (1,349 mm)
Overall Length
90 in (2,286 mm)
Overall Width
36 in (915 mm)
Rake/Trail
29° / 5.2 in (131.5 mm)
Seat Height
26.0 in (662 mm)
Weight (Empty Tank / Full of Fuel)
670 lbs / 694 lbs (304 kg / 315 kg)
Wheelbase
64.0 in (1,626 mm)
Brakes
Front Brakes
Single / 300mm Semi-Floating Rotor / 4 Piston Caliper
Rear Brakes
Single / 300mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Pirelli® Night Dragon 130/90B16 67H
Front Wheel
Wire Spoke 16 in x 3 in
Rear Tires
Pirelli® Night Dragon 180/65 B16 81H
Rear Wheel
Wire Spoke 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
5.2 in (132 mm)
Rear Suspension
Dual Shocks w/adjustable preload
Rear Travel
3.0 in (75 mm)
Features
Color / Graphics
Black Metallic, Ruby Metallic
Factory Warranty
2 Years, Unlimited Miles
Gauges
Electronic speedometer with odometer; dual tripmeters; digital tachometer; ambient air temperature; fuel range; average fuel economy; battery voltage; gear position display; real-time clock; vehicle trouble code readout; low engine oil pressure; and 9 LED telltale indicators: cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS (if equipped), check engine, and MPH or km/h unit designation; electronic fuel gauge with low fuel indicator
Infotainment
N/A
Lights
LED Headlight, LED Tail/Brake/Turn Signals
Standard Equipment
Ride Modes, Keyless Ignition, 12V Charge Port, Rear Cylinder Deactivation
Chief Bobber
Starting at $16,499 US MSRPPlus destination charge and set-up.Logistics surcharge of $800 will apply.Trim & Color options Ruby MetallicEngine & Drivetrain
Bore x Stroke
3.976 in x 4.449 in (101 mm x 113 mm)
Compression Ratio
9.5:1
Displacement
111 cu in (1,811 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 111
Exhaust
Dual Exhaust w/ Crossover
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
108 ft-lbs (146 Nm)
Peak Torque RPM
3,200 rpm
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
4.0 gal (15.1 L)
Ground Clearance
4.9 in (125 mm)
GVWR
1,160 lb (522 kg)
Lean Angle
28.5°
Overall Height
53.1 in (1,349 mm)
Overall Length
90 in (2,286 mm)
Overall Width
36 in (915 mm)
Rake/Trail
29° / 5.2 in (131.5 mm)
Seat Height
26.0 in (662 mm)
Weight (Empty Tank / Full of Fuel)
670 lbs / 694 lbs (304 kg / 315 kg)
Wheelbase
64.0 in (1,626 mm)
Brakes
Front Brakes
Single / 300mm Semi-Floating Rotor / 4 Piston Caliper
Rear Brakes
Single / 300mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Pirelli® Night Dragon 130/90B16 67H
Front Wheel
Wire Spoke 16 in x 3 in
Rear Tires
Pirelli® Night Dragon 180/65 B16 81H
Rear Wheel
Wire Spoke 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
5.2 in (132 mm)
Rear Suspension
Dual Shocks w/adjustable preload
Rear Travel
3.0 in (75 mm)
Features
Color / Graphics
Black Metallic, Ruby Metallic
Factory Warranty
2 Years, Unlimited Miles
Gauges
Electronic speedometer with odometer; dual tripmeters; digital tachometer; ambient air temperature; fuel range; average fuel economy; battery voltage; gear position display; real-time clock; vehicle trouble code readout; low engine oil pressure; and 9 LED telltale indicators: cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS (if equipped), check engine, and MPH or km/h unit designation; electronic fuel gauge with low fuel indicator
Infotainment
N/A
Lights
LED Headlight, LED Tail/Brake/Turn Signals
Standard Equipment
Ride Modes, Keyless Ignition, 12V Charge Port, Rear Cylinder Deactivation
(1).png)
Chief Bobber
Starting at $16,799 US MSRPPlus destination charge and set-up.Logistics surcharge of $800 will apply.Trim & Color options Black Metallic (ABS)Engine & Drivetrain
Bore x Stroke
3.976 in x 4.449 in (101 mm x 113 mm)
Compression Ratio
9.5:1
Displacement
111 cu in (1,811 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 111
Exhaust
Dual Exhaust w/ Crossover
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
108 ft-lbs (146 Nm)
Peak Torque RPM
3,200 rpm
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
4.0 gal (15.1 L)
Ground Clearance
4.9 in (125 mm)
GVWR
1,160 lb (522 kg)
Lean Angle
28.5°
Overall Height
53.1 in (1,349 mm)
Overall Length
90 in (2,286 mm)
Overall Width
36 in (915 mm)
Rake/Trail
29° / 5.2 in (131.5 mm)
Seat Height
26.0 in (662 mm)
Weight (Empty Tank / Full of Fuel)
670 lbs / 694 lbs (304 kg / 315 kg)
Wheelbase
64.0 in (1,626 mm)
Brakes
Front Brakes
Single / 300mm Semi-Floating Rotor / 4 Piston Caliper
Rear Brakes
Single / 300mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Pirelli® Night Dragon 130/90B16 67H
Front Wheel
Wire Spoke 16 in x 3 in
Rear Tires
Pirelli® Night Dragon 180/65 B16 81H
Rear Wheel
Wire Spoke 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
5.2 in (132 mm)
Rear Suspension
Dual Shocks w/adjustable preload
Rear Travel
3.0 in (75 mm)
Features
Color / Graphics
Black Metallic, Ruby Metallic
Factory Warranty
2 Years, Unlimited Miles
Gauges
Electronic speedometer with odometer; dual tripmeters; digital tachometer; ambient air temperature; fuel range; average fuel economy; battery voltage; gear position display; real-time clock; vehicle trouble code readout; low engine oil pressure; and 9 LED telltale indicators: cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS (if equipped), check engine, and MPH or km/h unit designation; electronic fuel gauge with low fuel indicator
Infotainment
N/A
Lights
LED Headlight, LED Tail/Brake/Turn Signals
Standard Equipment
Ride Modes, Keyless Ignition, 12V Charge Port, Rear Cylinder Deactivation
Chief Bobber
Starting at $17,299 US MSRPPlus destination charge and set-up.Logistics surcharge of $800 will apply.Trim & Color options Ruby Metallic (ABS)Engine & Drivetrain
Bore x Stroke
3.976 in x 4.449 in (101 mm x 113 mm)
Compression Ratio
9.5:1
Displacement
111 cu in (1,811 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 111
Exhaust
Dual Exhaust w/ Crossover
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
108 ft-lbs (146 Nm)
Peak Torque RPM
3,200 rpm
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
4.0 gal (15.1 L)
Ground Clearance
4.9 in (125 mm)
GVWR
1,160 lb (522 kg)
Lean Angle
28.5°
Overall Height
53.1 in (1,349 mm)
Overall Length
90 in (2,286 mm)
Overall Width
36 in (915 mm)
Rake/Trail
29° / 5.2 in (131.5 mm)
Seat Height
26.0 in (662 mm)
Weight (Empty Tank / Full of Fuel)
670 lbs / 694 lbs (304 kg / 315 kg)
Wheelbase
64.0 in (1,626 mm)
Brakes
Front Brakes
Single / 300mm Semi-Floating Rotor / 4 Piston Caliper
Rear Brakes
Single / 300mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Pirelli® Night Dragon 130/90B16 67H
Front Wheel
Wire Spoke 16 in x 3 in
Rear Tires
Pirelli® Night Dragon 180/65 B16 81H
Rear Wheel
Wire Spoke 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
5.2 in (132 mm)
Rear Suspension
Dual Shocks w/adjustable preload
Rear Travel
3.0 in (75 mm)
Features
Color / Graphics
Black Metallic, Ruby Metallic
Factory Warranty
2 Years, Unlimited Miles
Gauges
Electronic speedometer with odometer; dual tripmeters; digital tachometer; ambient air temperature; fuel range; average fuel economy; battery voltage; gear position display; real-time clock; vehicle trouble code readout; low engine oil pressure; and 9 LED telltale indicators: cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS (if equipped), check engine, and MPH or km/h unit designation; electronic fuel gauge with low fuel indicator
Infotainment
N/A
Lights
LED Headlight, LED Tail/Brake/Turn Signals
Standard Equipment
Ride Modes, Keyless Ignition, 12V Charge Port, Rear Cylinder Deactivation
.png)
Chief Bobber Dark Horse
Starting at $18,999 US MSRPPlus destination charge and set-up.Logistics surcharge of $800 will apply.Trim & Color options Black SmokeEngine & Drivetrain
Bore x Stroke
4.063" x 4.449" (103.2mm x113mm)
Compression Ratio
11.0:1
Displacement
116 cu in (1,890 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 116
Exhaust
Dual Exhaust w/ Crossover
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
120 ft-lbs (162 Nm)
Peak Torque RPM
2,900 RPM
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
4.0 gal (15.1 L)
Ground Clearance
4.9 in (125 mm)
GVWR
1,160 lb (522 kg)
Lean Angle
28.5°
Overall Height
53.1 in (1,349 mm)
Overall Length
90 in (2,286 mm)
Overall Width
36 in (915 mm)
Rake/Trail
29° / 5.2 in (131.5 mm)
Seat Height
26.0 in (662 mm)
Weight (Empty Tank / Full of Fuel)
670 lbs / 694 lbs (304 kg / 315 kg)
Wheelbase
64.0 in (1,626 mm)
Brakes
Front Brakes
Single / 300mm Semi-Floating Rotor / 4 Piston Caliper
Rear Brakes
Single / 300mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Pirelli® Night Dragon 130/90B16 67H
Front Wheel
Wire Spoke 16 in x 3 in
Rear Tires
Pirelli® Night Dragon 180/65 B16 81H
Rear Wheel
Wire Spoke 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
5.2 in (132 mm)
Rear Suspension
Dual Shocks w/adjustable preload
Rear Travel
3.0 in (75 mm)
Features
Color / Graphics
Black Smoke, Sagebrush Smoke, Titanium Smoke
Factory Warranty
2 Years, Unlimited Miles
Gauges
Speedometer, Tachometer, Odometer, fuel gauge, compass, ambient temperature, Gear indicator
Infotainment
4" Round Ride Command® Display with connected services such as real time traffic weather and traffic overlay included for a complementary 1-year trial for connected features from the vehicle sales date (after which, fees apply). Touchscreen display includes real-time clock; ambient air temperature; heading; audio information display; map/navigation with real-time traffic and weather; Bluetooth status for phone and headset; vehicle status (voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; and vehicle trouble code readout.
Lights
LED Headlight, LED Tail/Brake/Turn Signals
Standard Equipment
ABS, Ride Modes, Keyless Ignition, USB charge port, 12V Charge Port, Rear Cylinder Deactivation
.png)
Chief Bobber Dark Horse
Starting at $19,499 US MSRPPlus destination charge and set-up.Logistics surcharge of $800 will apply.Trim & Color options Titanium SmokeEngine & Drivetrain
Bore x Stroke
4.063" x 4.449" (103.2mm x113mm)
Compression Ratio
11.0:1
Displacement
116 cu in (1,890 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 116
Exhaust
Dual Exhaust w/ Crossover
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
120 ft-lbs (162 Nm)
Peak Torque RPM
2,900 RPM
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
4.0 gal (15.1 L)
Ground Clearance
4.9 in (125 mm)
GVWR
1,160 lb (522 kg)
Lean Angle
28.5°
Overall Height
53.1 in (1,349 mm)
Overall Length
90 in (2,286 mm)
Overall Width
36 in (915 mm)
Rake/Trail
29° / 5.2 in (131.5 mm)
Seat Height
26.0 in (662 mm)
Weight (Empty Tank / Full of Fuel)
670 lbs / 694 lbs (304 kg / 315 kg)
Wheelbase
64.0 in (1,626 mm)
Brakes
Front Brakes
Single / 300mm Semi-Floating Rotor / 4 Piston Caliper
Rear Brakes
Single / 300mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Pirelli® Night Dragon 130/90B16 67H
Front Wheel
Wire Spoke 16 in x 3 in
Rear Tires
Pirelli® Night Dragon 180/65 B16 81H
Rear Wheel
Wire Spoke 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
5.2 in (132 mm)
Rear Suspension
Dual Shocks w/adjustable preload
Rear Travel
3.0 in (75 mm)
Features
Color / Graphics
Black Smoke, Sagebrush Smoke, Titanium Smoke
Factory Warranty
2 Years, Unlimited Miles
Gauges
Speedometer, Tachometer, Odometer, fuel gauge, compass, ambient temperature, Gear indicator
Infotainment
4" Round Ride Command® Display with connected services such as real time traffic weather and traffic overlay included for a complementary 1-year trial for connected features from the vehicle sales date (after which, fees apply). Touchscreen display includes real-time clock; ambient air temperature; heading; audio information display; map/navigation with real-time traffic and weather; Bluetooth status for phone and headset; vehicle status (voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; and vehicle trouble code readout.
Lights
LED Headlight, LED Tail/Brake/Turn Signals
Standard Equipment
ABS, Ride Modes, Keyless Ignition, USB charge port, 12V Charge Port, Rear Cylinder Deactivation
Chief Bobber Dark Horse
Starting at $19,499 US MSRPPlus destination charge and set-up.Logistics surcharge of $800 will apply.Trim & Color options Sagebrush SmokeEngine & Drivetrain
Bore x Stroke
4.063" x 4.449" (103.2mm x113mm)
Compression Ratio
11.0:1
Displacement
116 cu in (1,890 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 116
Exhaust
Dual Exhaust w/ Crossover
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
120 ft-lbs (162 Nm)
Peak Torque RPM
2,900 RPM
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
4.0 gal (15.1 L)
Ground Clearance
4.9 in (125 mm)
GVWR
1,160 lb (522 kg)
Lean Angle
28.5°
Overall Height
53.1 in (1,349 mm)
Overall Length
90 in (2,286 mm)
Overall Width
36 in (915 mm)
Rake/Trail
29° / 5.2 in (131.5 mm)
Seat Height
26.0 in (662 mm)
Weight (Empty Tank / Full of Fuel)
670 lbs / 694 lbs (304 kg / 315 kg)
Wheelbase
64.0 in (1,626 mm)
Brakes
Front Brakes
Single / 300mm Semi-Floating Rotor / 4 Piston Caliper
Rear Brakes
Single / 300mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Pirelli® Night Dragon 130/90B16 67H
Front Wheel
Wire Spoke 16 in x 3 in
Rear Tires
Pirelli® Night Dragon 180/65 B16 81H
Rear Wheel
Wire Spoke 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
5.2 in (132 mm)
Rear Suspension
Dual Shocks w/adjustable preload
Rear Travel
3.0 in (75 mm)
Features
Color / Graphics
Black Smoke, Sagebrush Smoke, Titanium Smoke
Factory Warranty
2 Years, Unlimited Miles
Gauges
Speedometer, Tachometer, Odometer, fuel gauge, compass, ambient temperature, Gear indicator
Infotainment
4" Round Ride Command® Display with connected services such as real time traffic weather and traffic overlay included for a complementary 1-year trial for connected features from the vehicle sales date (after which, fees apply). Touchscreen display includes real-time clock; ambient air temperature; heading; audio information display; map/navigation with real-time traffic and weather; Bluetooth status for phone and headset; vehicle status (voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; and vehicle trouble code readout.
Lights
LED Headlight, LED Tail/Brake/Turn Signals
Standard Equipment
ABS, Ride Modes, Keyless Ignition, USB charge port, 12V Charge Port, Rear Cylinder Deactivation
(1).png)
Super Chief
Starting at $18,499 US MSRPPlus destination charge and set-up.Logistics surcharge of $800 will apply.Trim & Color options Black MetallicEngine & Drivetrain
Bore x Stroke
3.976 in x 4.449 in (101 mm x 113 mm)
Compression Ratio
9.5:1
Displacement
111 cu in (1,811 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 111
Exhaust
Dual Exhaust w/ Crossover
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
108 ft-lbs (146 Nm)
Peak Torque RPM
3,200 rpm
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
4.0 gal (15.1 L)
Ground Clearance
4.9 in (125 mm)
GVWR
1,160 lb (522 kg)
Lean Angle
28.5°
Overall Height
47.4 in (1,203 mm)
Overall Length
90 in (2,286 mm)
Overall Width
42.5 in (1,080 mm)
Rake/Trail
29° / 5.2 in (131.5 mm)
Seat Height
26.2 in (665 mm)
Weight (Empty Tank / Full of Fuel)
714 lbs / 739 lbs (324 kg / 335 kg)
Wheelbase
64.0 in (1,626 mm)
Brakes
Front Brakes
Single / 300mm Semi-Floating Rotor / 4 Piston Caliper
Rear Brakes
Single / 300mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Pirelli® Night Dragon 130/90B16 67H
Front Wheel
Wire Spoke 16 in x 3 in
Rear Tires
Pirelli® Night Dragon 180/65 B16 81H
Rear Wheel
Wire Spoke 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
5.2 in (132 mm)
Rear Suspension
Dual Shocks w/adjustable preload
Rear Travel
3.0 in (75 mm)
Features
Color / Graphics
Black Metallic, Pearl White
Factory Warranty
2 Years, Unlimited Miles
Gauges
Electronic speedometer with odometer; dual tripmeters; digital tachometer; ambient air temperature; fuel range; average fuel economy; battery voltage; gear position display; real-time clock; vehicle trouble code readout; low engine oil pressure; and 9 LED telltale indicators: cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS (if equipped), check engine, and MPH or km/h unit designation; electronic fuel gauge with low fuel indicator
Infotainment
N/A
Lights
LED Headlight, LED Tail/Brake/Turn Signals
Standard Equipment
Ride Modes, Keyless Ignition, 12V Charge Port, Rear Cylinder Deactivation
Super Chief
Starting at $19,299 US MSRPPlus destination charge and set-up.Logistics surcharge of $800 will apply.Trim & Color options Black Metallic (ABS)Engine & Drivetrain
Bore x Stroke
3.976 in x 4.449 in (101 mm x 113 mm)
Compression Ratio
9.5:1
Displacement
111 cu in (1,811 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 111
Exhaust
Dual Exhaust w/ Crossover
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
108 ft-lbs (146 Nm)
Peak Torque RPM
3,200 rpm
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
4.0 gal (15.1 L)
Ground Clearance
4.9 in (125 mm)
GVWR
1,160 lb (522 kg)
Lean Angle
28.5°
Overall Height
47.4 in (1,203 mm)
Overall Length
90 in (2,286 mm)
Overall Width
42.5 in (1,080 mm)
Rake/Trail
29° / 5.2 in (131.5 mm)
Seat Height
26.2 in (665 mm)
Weight (Empty Tank / Full of Fuel)
714 lbs / 739 lbs (324 kg / 335 kg)
Wheelbase
64.0 in (1,626 mm)
Brakes
Front Brakes
Single / 300mm Semi-Floating Rotor / 4 Piston Caliper
Rear Brakes
Single / 300mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Pirelli® Night Dragon 130/90B16 67H
Front Wheel
Wire Spoke 16 in x 3 in
Rear Tires
Pirelli® Night Dragon 180/65 B16 81H
Rear Wheel
Wire Spoke 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
5.2 in (132 mm)
Rear Suspension
Dual Shocks w/adjustable preload
Rear Travel
3.0 in (75 mm)
Features
Color / Graphics
Black Metallic, Pearl White
Factory Warranty
2 Years, Unlimited Miles
Gauges
Electronic speedometer with odometer; dual tripmeters; digital tachometer; ambient air temperature; fuel range; average fuel economy; battery voltage; gear position display; real-time clock; vehicle trouble code readout; low engine oil pressure; and 9 LED telltale indicators: cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS (if equipped), check engine, and MPH or km/h unit designation; electronic fuel gauge with low fuel indicator
Infotainment
N/A
Lights
LED Headlight, LED Tail/Brake/Turn Signals
Standard Equipment
Ride Modes, Keyless Ignition, 12V Charge Port, Rear Cylinder Deactivation
.png)
Super Chief
Starting at $19,799 US MSRPPlus destination charge and set-up.Logistics surcharge of $800 will apply.Trim & Color options Pearl White (ABS)Engine & Drivetrain
Bore x Stroke
3.976 in x 4.449 in (101 mm x 113 mm)
Compression Ratio
9.5:1
Displacement
111 cu in (1,811 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 111
Exhaust
Dual Exhaust w/ Crossover
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
108 ft-lbs (146 Nm)
Peak Torque RPM
3,200 rpm
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
4.0 gal (15.1 L)
Ground Clearance
4.9 in (125 mm)
GVWR
1,160 lb (522 kg)
Lean Angle
28.5°
Overall Height
47.4 in (1,203 mm)
Overall Length
90 in (2,286 mm)
Overall Width
42.5 in (1,080 mm)
Rake/Trail
29° / 5.2 in (131.5 mm)
Seat Height
26.2 in (665 mm)
Weight (Empty Tank / Full of Fuel)
714 lbs / 739 lbs (324 kg / 335 kg)
Wheelbase
64.0 in (1,626 mm)
Brakes
Front Brakes
Single / 300mm Semi-Floating Rotor / 4 Piston Caliper
Rear Brakes
Single / 300mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Pirelli® Night Dragon 130/90B16 67H
Front Wheel
Wire Spoke 16 in x 3 in
Rear Tires
Pirelli® Night Dragon 180/65 B16 81H
Rear Wheel
Wire Spoke 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
5.2 in (132 mm)
Rear Suspension
Dual Shocks w/adjustable preload
Rear Travel
3.0 in (75 mm)
Features
Color / Graphics
Black Metallic, Pearl White
Factory Warranty
2 Years, Unlimited Miles
Gauges
Electronic speedometer with odometer; dual tripmeters; digital tachometer; ambient air temperature; fuel range; average fuel economy; battery voltage; gear position display; real-time clock; vehicle trouble code readout; low engine oil pressure; and 9 LED telltale indicators: cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS (if equipped), check engine, and MPH or km/h unit designation; electronic fuel gauge with low fuel indicator
Infotainment
N/A
Lights
LED Headlight, LED Tail/Brake/Turn Signals
Standard Equipment
Ride Modes, Keyless Ignition, 12V Charge Port, Rear Cylinder Deactivation
(2).png)
Super Chief Limited
Starting at $20,999 US MSRPPlus destination charge and set-up.Logistics surcharge of $800 will apply.Trim & Color options Black MetallicEngine & Drivetrain
Bore x Stroke
4.063" x 4.449" (103.2mm x113mm)
Compression Ratio
11.0:1
Displacement
116 cu in (1,890 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 116
Exhaust
Dual Exhaust w/ Crossover
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
120 ft-lbs (162 Nm)
Peak Torque RPM
2,900 RPM
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
4.0 gal (15.1 L)
Ground Clearance
4.9 in (125 mm)
GVWR
1,160 lb (522 kg)
Lean Angle
28.5°
Overall Height
47.4 in (1,203 mm)
Overall Length
90 in (2,286 mm)
Overall Width
42.5 in (1,080 mm)
Rake/Trail
29° / 5.2 in (131.5 mm)
Seat Height
26.2 in (665 mm)
Weight (Empty Tank / Full of Fuel)
714 lbs / 739 lbs (324 kg / 335 kg)
Wheelbase
64.0 in (1,626 mm)
Brakes
Front Brakes
Single / 300mm Semi-Floating Rotor / 4 Piston Caliper
Rear Brakes
Single / 300mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Pirelli® Night Dragon 130/90B16 67H
Front Wheel
Wire Spoke 16 in x 3 in
Rear Tires
Pirelli® Night Dragon 180/65 B16 81H
Rear Wheel
Wire Spoke 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
5.2 in (132 mm)
Rear Suspension
Dual Shocks w/adjustable preload
Rear Travel
3.0 in (75 mm)
Features
Color / Graphics
Black Metallic, Blue Slate Metallic, Maroon Metallic
Factory Warranty
2 Years, Unlimited Miles
Gauges
Speedometer, Tachometer, Odometer, fuel gauge, compass, ambient temperature, Gear indicator
Infotainment
4" Round Ride Command® Display with connected services such as real time traffic weather and traffic overlay included for a complementary 1-year trial for connected features from the vehicle sales date (after which, fees apply). Touchscreen display includes real-time clock; ambient air temperature; heading; audio information display; map/navigation with real-time traffic and weather; Bluetooth status for phone and headset; vehicle status (voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; and vehicle trouble code readout.
Lights
LED Headlight, LED Tail/Brake/Turn Signals
Standard Equipment
ABS, Ride Modes, Keyless Ignition, USB charge port, 12V Charge Port, Rear Cylinder Deactivation
.png)
Super Chief Limited
Starting at $21,499 US MSRPPlus destination charge and set-up.Logistics surcharge of $800 will apply.Trim & Color options Maroon MetallicEngine & Drivetrain
Bore x Stroke
4.063" x 4.449" (103.2mm x113mm)
Compression Ratio
11.0:1
Displacement
116 cu in (1,890 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 116
Exhaust
Dual Exhaust w/ Crossover
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
120 ft-lbs (162 Nm)
Peak Torque RPM
2,900 RPM
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
4.0 gal (15.1 L)
Ground Clearance
4.9 in (125 mm)
GVWR
1,160 lb (522 kg)
Lean Angle
28.5°
Overall Height
47.4 in (1,203 mm)
Overall Length
90 in (2,286 mm)
Overall Width
42.5 in (1,080 mm)
Rake/Trail
29° / 5.2 in (131.5 mm)
Seat Height
26.2 in (665 mm)
Weight (Empty Tank / Full of Fuel)
714 lbs / 739 lbs (324 kg / 335 kg)
Wheelbase
64.0 in (1,626 mm)
Brakes
Front Brakes
Single / 300mm Semi-Floating Rotor / 4 Piston Caliper
Rear Brakes
Single / 300mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Pirelli® Night Dragon 130/90B16 67H
Front Wheel
Wire Spoke 16 in x 3 in
Rear Tires
Pirelli® Night Dragon 180/65 B16 81H
Rear Wheel
Wire Spoke 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
5.2 in (132 mm)
Rear Suspension
Dual Shocks w/adjustable preload
Rear Travel
3.0 in (75 mm)
Features
Color / Graphics
Black Metallic, Blue Slate Metallic, Maroon Metallic
Factory Warranty
2 Years, Unlimited Miles
Gauges
Speedometer, Tachometer, Odometer, fuel gauge, compass, ambient temperature, Gear indicator
Infotainment
4" Round Ride Command® Display with connected services such as real time traffic weather and traffic overlay included for a complementary 1-year trial for connected features from the vehicle sales date (after which, fees apply). Touchscreen display includes real-time clock; ambient air temperature; heading; audio information display; map/navigation with real-time traffic and weather; Bluetooth status for phone and headset; vehicle status (voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; and vehicle trouble code readout.
Lights
LED Headlight, LED Tail/Brake/Turn Signals
Standard Equipment
ABS, Ride Modes, Keyless Ignition, USB charge port, 12V Charge Port, Rear Cylinder Deactivation
.png)
Super Chief Limited
Starting at $21,499 US MSRPPlus destination charge and set-up.Logistics surcharge of $800 will apply.Trim & Color options Blue Slate MetallicEngine & Drivetrain
Bore x Stroke
4.063" x 4.449" (103.2mm x113mm)
Compression Ratio
11.0:1
Displacement
116 cu in (1,890 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 116
Exhaust
Dual Exhaust w/ Crossover
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
120 ft-lbs (162 Nm)
Peak Torque RPM
2,900 RPM
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
4.0 gal (15.1 L)
Ground Clearance
4.9 in (125 mm)
GVWR
1,160 lb (522 kg)
Lean Angle
28.5°
Overall Height
47.4 in (1,203 mm)
Overall Length
90 in (2,286 mm)
Overall Width
42.5 in (1,080 mm)
Rake/Trail
29° / 5.2 in (131.5 mm)
Seat Height
26.2 in (665 mm)
Weight (Empty Tank / Full of Fuel)
714 lbs / 739 lbs (324 kg / 335 kg)
Wheelbase
64.0 in (1,626 mm)
Brakes
Front Brakes
Single / 300mm Semi-Floating Rotor / 4 Piston Caliper
Rear Brakes
Single / 300mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Pirelli® Night Dragon 130/90B16 67H
Front Wheel
Wire Spoke 16 in x 3 in
Rear Tires
Pirelli® Night Dragon 180/65 B16 81H
Rear Wheel
Wire Spoke 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
5.2 in (132 mm)
Rear Suspension
Dual Shocks w/adjustable preload
Rear Travel
3.0 in (75 mm)
Features
Color / Graphics
Black Metallic, Blue Slate Metallic, Maroon Metallic
Factory Warranty
2 Years, Unlimited Miles
Gauges
Speedometer, Tachometer, Odometer, fuel gauge, compass, ambient temperature, Gear indicator
Infotainment
4" Round Ride Command® Display with connected services such as real time traffic weather and traffic overlay included for a complementary 1-year trial for connected features from the vehicle sales date (after which, fees apply). Touchscreen display includes real-time clock; ambient air temperature; heading; audio information display; map/navigation with real-time traffic and weather; Bluetooth status for phone and headset; vehicle status (voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; and vehicle trouble code readout.
Lights
LED Headlight, LED Tail/Brake/Turn Signals
Standard Equipment
ABS, Ride Modes, Keyless Ignition, USB charge port, 12V Charge Port, Rear Cylinder Deactivation
Super Chief
Starting at $18,499 US MSRPPlus destination charge and set-up.Logistics surcharge of $800 will apply.Trim & Color options Black MetallicEngine & Drivetrain
Bore x Stroke
3.976 in x 4.449 in (101 mm x 113 mm)
Compression Ratio
9.5:1
Displacement
111 cu in (1,811 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 111
Exhaust
Dual Exhaust w/ Crossover
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
108 ft-lbs (146 Nm)
Peak Torque RPM
3,200 rpm
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
4.0 gal (15.1 L)
Ground Clearance
4.9 in (125 mm)
GVWR
1,160 lb (522 kg)
Lean Angle
28.5°
Overall Height
47.4 in (1,203 mm)
Overall Length
90 in (2,286 mm)
Overall Width
42.5 in (1,080 mm)
Rake/Trail
29° / 5.2 in (131.5 mm)
Seat Height
26.2 in (665 mm)
Weight (Empty Tank / Full of Fuel)
714 lbs / 739 lbs (324 kg / 335 kg)
Wheelbase
64.0 in (1,626 mm)
Brakes
Front Brakes
Single / 300mm Semi-Floating Rotor / 4 Piston Caliper
Rear Brakes
Single / 300mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Pirelli® Night Dragon 130/90B16 67H
Front Wheel
Wire Spoke 16 in x 3 in
Rear Tires
Pirelli® Night Dragon 180/65 B16 81H
Rear Wheel
Wire Spoke 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
5.2 in (132 mm)
Rear Suspension
Dual Shocks w/adjustable preload
Rear Travel
3.0 in (75 mm)
Features
Color / Graphics
Black Metallic, Pearl White
Factory Warranty
2 Years, Unlimited Miles
Gauges
Electronic speedometer with odometer; dual tripmeters; digital tachometer; ambient air temperature; fuel range; average fuel economy; battery voltage; gear position display; real-time clock; vehicle trouble code readout; low engine oil pressure; and 9 LED telltale indicators: cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS (if equipped), check engine, and MPH or km/h unit designation; electronic fuel gauge with low fuel indicator
Infotainment
N/A
Lights
LED Headlight, LED Tail/Brake/Turn Signals
Standard Equipment
Ride Modes, Keyless Ignition, 12V Charge Port, Rear Cylinder Deactivation
Super Chief
Starting at $19,299 US MSRPPlus destination charge and set-up.Logistics surcharge of $800 will apply.Trim & Color options Black Metallic (ABS)Engine & Drivetrain
Bore x Stroke
3.976 in x 4.449 in (101 mm x 113 mm)
Compression Ratio
9.5:1
Displacement
111 cu in (1,811 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 111
Exhaust
Dual Exhaust w/ Crossover
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
108 ft-lbs (146 Nm)
Peak Torque RPM
3,200 rpm
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
4.0 gal (15.1 L)
Ground Clearance
4.9 in (125 mm)
GVWR
1,160 lb (522 kg)
Lean Angle
28.5°
Overall Height
47.4 in (1,203 mm)
Overall Length
90 in (2,286 mm)
Overall Width
42.5 in (1,080 mm)
Rake/Trail
29° / 5.2 in (131.5 mm)
Seat Height
26.2 in (665 mm)
Weight (Empty Tank / Full of Fuel)
714 lbs / 739 lbs (324 kg / 335 kg)
Wheelbase
64.0 in (1,626 mm)
Brakes
Front Brakes
Single / 300mm Semi-Floating Rotor / 4 Piston Caliper
Rear Brakes
Single / 300mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Pirelli® Night Dragon 130/90B16 67H
Front Wheel
Wire Spoke 16 in x 3 in
Rear Tires
Pirelli® Night Dragon 180/65 B16 81H
Rear Wheel
Wire Spoke 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
5.2 in (132 mm)
Rear Suspension
Dual Shocks w/adjustable preload
Rear Travel
3.0 in (75 mm)
Features
Color / Graphics
Black Metallic, Pearl White
Factory Warranty
2 Years, Unlimited Miles
Gauges
Electronic speedometer with odometer; dual tripmeters; digital tachometer; ambient air temperature; fuel range; average fuel economy; battery voltage; gear position display; real-time clock; vehicle trouble code readout; low engine oil pressure; and 9 LED telltale indicators: cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS (if equipped), check engine, and MPH or km/h unit designation; electronic fuel gauge with low fuel indicator
Infotainment
N/A
Lights
LED Headlight, LED Tail/Brake/Turn Signals
Standard Equipment
Ride Modes, Keyless Ignition, 12V Charge Port, Rear Cylinder Deactivation
Super Chief
Starting at $19,799 US MSRPPlus destination charge and set-up.Logistics surcharge of $800 will apply.Trim & Color options Pearl White (ABS)Engine & Drivetrain
Bore x Stroke
3.976 in x 4.449 in (101 mm x 113 mm)
Compression Ratio
9.5:1
Displacement
111 cu in (1,811 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 111
Exhaust
Dual Exhaust w/ Crossover
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
108 ft-lbs (146 Nm)
Peak Torque RPM
3,200 rpm
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
4.0 gal (15.1 L)
Ground Clearance
4.9 in (125 mm)
GVWR
1,160 lb (522 kg)
Lean Angle
28.5°
Overall Height
47.4 in (1,203 mm)
Overall Length
90 in (2,286 mm)
Overall Width
42.5 in (1,080 mm)
Rake/Trail
29° / 5.2 in (131.5 mm)
Seat Height
26.2 in (665 mm)
Weight (Empty Tank / Full of Fuel)
714 lbs / 739 lbs (324 kg / 335 kg)
Wheelbase
64.0 in (1,626 mm)
Brakes
Front Brakes
Single / 300mm Semi-Floating Rotor / 4 Piston Caliper
Rear Brakes
Single / 300mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Pirelli® Night Dragon 130/90B16 67H
Front Wheel
Wire Spoke 16 in x 3 in
Rear Tires
Pirelli® Night Dragon 180/65 B16 81H
Rear Wheel
Wire Spoke 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
5.2 in (132 mm)
Rear Suspension
Dual Shocks w/adjustable preload
Rear Travel
3.0 in (75 mm)
Features
Color / Graphics
Black Metallic, Pearl White
Factory Warranty
2 Years, Unlimited Miles
Gauges
Electronic speedometer with odometer; dual tripmeters; digital tachometer; ambient air temperature; fuel range; average fuel economy; battery voltage; gear position display; real-time clock; vehicle trouble code readout; low engine oil pressure; and 9 LED telltale indicators: cruise control enabled, cruise control set, neutral, high beam, turn signal, ABS (if equipped), check engine, and MPH or km/h unit designation; electronic fuel gauge with low fuel indicator
Infotainment
N/A
Lights
LED Headlight, LED Tail/Brake/Turn Signals
Standard Equipment
Ride Modes, Keyless Ignition, 12V Charge Port, Rear Cylinder Deactivation
Super Chief Limited
Starting at $20,999 US MSRPPlus destination charge and set-up.Logistics surcharge of $800 will apply.Trim & Color options Black MetallicEngine & Drivetrain
Bore x Stroke
4.063" x 4.449" (103.2mm x113mm)
Compression Ratio
11.0:1
Displacement
116 cu in (1,890 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 116
Exhaust
Dual Exhaust w/ Crossover
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
120 ft-lbs (162 Nm)
Peak Torque RPM
2,900 RPM
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
4.0 gal (15.1 L)
Ground Clearance
4.9 in (125 mm)
GVWR
1,160 lb (522 kg)
Lean Angle
28.5°
Overall Height
47.4 in (1,203 mm)
Overall Length
90 in (2,286 mm)
Overall Width
42.5 in (1,080 mm)
Rake/Trail
29° / 5.2 in (131.5 mm)
Seat Height
26.2 in (665 mm)
Weight (Empty Tank / Full of Fuel)
714 lbs / 739 lbs (324 kg / 335 kg)
Wheelbase
64.0 in (1,626 mm)
Brakes
Front Brakes
Single / 300mm Semi-Floating Rotor / 4 Piston Caliper
Rear Brakes
Single / 300mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Pirelli® Night Dragon 130/90B16 67H
Front Wheel
Wire Spoke 16 in x 3 in
Rear Tires
Pirelli® Night Dragon 180/65 B16 81H
Rear Wheel
Wire Spoke 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
5.2 in (132 mm)
Rear Suspension
Dual Shocks w/adjustable preload
Rear Travel
3.0 in (75 mm)
Features
Color / Graphics
Black Metallic, Blue Slate Metallic, Maroon Metallic
Factory Warranty
2 Years, Unlimited Miles
Gauges
Speedometer, Tachometer, Odometer, fuel gauge, compass, ambient temperature, Gear indicator
Infotainment
4" Round Ride Command® Display with connected services such as real time traffic weather and traffic overlay included for a complementary 1-year trial for connected features from the vehicle sales date (after which, fees apply). Touchscreen display includes real-time clock; ambient air temperature; heading; audio information display; map/navigation with real-time traffic and weather; Bluetooth status for phone and headset; vehicle status (voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; and vehicle trouble code readout.
Lights
LED Headlight, LED Tail/Brake/Turn Signals
Standard Equipment
ABS, Ride Modes, Keyless Ignition, USB charge port, 12V Charge Port, Rear Cylinder Deactivation
Super Chief Limited
Starting at $21,499 US MSRPPlus destination charge and set-up.Logistics surcharge of $800 will apply.Trim & Color options Maroon MetallicEngine & Drivetrain
Bore x Stroke
4.063" x 4.449" (103.2mm x113mm)
Compression Ratio
11.0:1
Displacement
116 cu in (1,890 cc)
Drive/Driven Clutch
Wet, Multi-Plate
Electronic Fuel Injection System
Closed loop fuel injection / 54 mm bore
Engine Type
Air-cooled Thunderstroke 116
Exhaust
Dual Exhaust w/ Crossover
Gear Ratio (1st)
9.403 : 1
Gear Ratio (2nd)
6.411 : 1
Gear Ratio (3rd)
4.763 : 1
Gear Ratio (4th)
3.796 : 1
Gear Ratio (5th)
3.243 : 1
Gear Ratio (6th)
2.789 : 1
Peak Torque
120 ft-lbs (162 Nm)
Peak Torque RPM
2,900 RPM
Transmission/Final Drive
2.2 : 1
Transmission/Primary Drive
Gear Drive Wet Clutch
Dimensions
Fuel Capacity
4.0 gal (15.1 L)
Ground Clearance
4.9 in (125 mm)
GVWR
1,160 lb (522 kg)
Lean Angle
28.5°
Overall Height
47.4 in (1,203 mm)
Overall Length
90 in (2,286 mm)
Overall Width
42.5 in (1,080 mm)
Rake/Trail
29° / 5.2 in (131.5 mm)
Seat Height
26.2 in (665 mm)
Weight (Empty Tank / Full of Fuel)
714 lbs / 739 lbs (324 kg / 335 kg)
Wheelbase
64.0 in (1,626 mm)
Brakes
Front Brakes
Single / 300mm Semi-Floating Rotor / 4 Piston Caliper
Rear Brakes
Single / 300mm Floating Rotor / 2 Piston Caliper
Tires / Wheels
Front Tires
Pirelli® Night Dragon 130/90B16 67H
Front Wheel
Wire Spoke 16 in x 3 in
Rear Tires
Pirelli® Night Dragon 180/65 B16 81H
Rear Wheel
Wire Spoke 16 in x 5 in
Suspension
Front Fork Tube Diameter
46 mm
Front Suspension
Telescopic Fork
Front Travel
5.2 in (132 mm)
Rear Suspension
Dual Shocks w/adjustable preload
Rear Travel
3.0 in (75 mm)
Features
Color / Graphics
Black Metallic, Blue Slate Metallic, Maroon Metallic
Factory Warranty
2 Years, Unlimited Miles
Gauges
Speedometer, Tachometer, Odometer, fuel gauge, compass, ambient temperature, Gear indicator
Infotainment
4" Round Ride Command® Display with connected services such as real time traffic weather and traffic overlay included for a complementary 1-year trial for connected features from the vehicle sales date (after which, fees apply). Touchscreen display includes real-time clock; ambient air temperature; heading; audio information display; map/navigation with real-time traffic and weather; Bluetooth status for phone and headset; vehicle status (voltage, engine hours, oil change); vehicle info (speed, fuel range, RPM, gear position); current ride data (distance, moving time, stop time, altitude, altitude change); trip meters; ride mode selection; screen brightness; and vehicle trouble code readout.
Lights
LED Headlight, LED Tail/Brake/Turn Signals
Standard Equipment
ABS, Ride Modes, Keyless Ignition, USB charge port, 12V Charge Port, Rear Cylinder Deactivation
